HP 3400 - Billy Goat 34" HomePro Finish Mower ENGINE Parts Diagram

34" HomePro Finish Mower

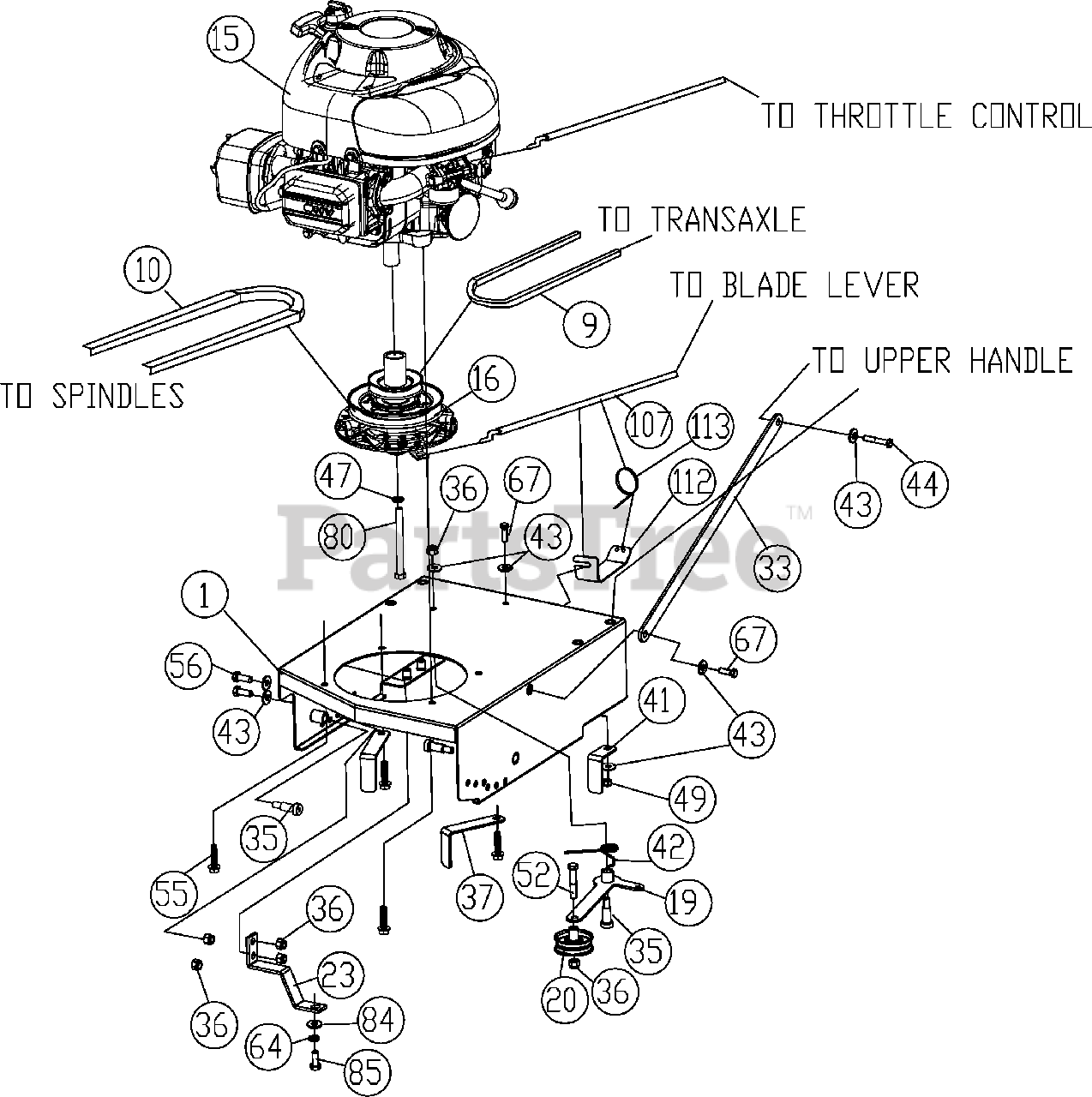

ENGINE Parts Diagram

  • Title

1

Billy Goat 521208

Base Engine WA HP

$

$

Not available

9

Billy Goat 521122

Belt 4L x 33

$26.99

$

Usually ships in 2-11 days

0

10

Billy Goat 521112

Belt 5l x 60

$57.99

$

In Stock, only 1 left!

0

15

Billy Goat 521105

Engine 10.5 HP Intek

$

$

Currently unavailable

16

Billy Goat 521317

Clutch HP
(Superseded to 521100-S)

$705.99

$

Usually ships in 2-11 days

0

19

Billy Goat 521212

Idler Arm WA

$78.99

$

Usually ships in 2-11 days

0

20

Billy Goat 521121

Pulley idler arm HP

$17.99

$

Usually ships in 2-11 days

0

23

Billy Goat 521320

Bracket Anti-Rotation

$41.99

$

Usually ships in 2-11 days

0

33

Billy Goat 521218

Brace Handle HP

$

$

Not available

35

Billy Goat 500114

Bolt Shoulder 1/2" x 1"

$8.99

$

Usually ships in 2-11 days

0

36

Billy Goat 8160003

Nut Lock 3/8" - 16

$0.99

$

In Stock, Qty 8

0

37

Billy Goat 521115

Belt Finger Front HP

$10.99

$

Usually ships in 2-11 days

0

41

Billy Goat 521117

Belt Finger Rear HP

$

$

Not available

42

Billy Goat 521123

Spring Idler HP

$2.99

$

Usually ships in 2-11 days

0

43

Billy Goat 8171003

Washer 5/16 Flat ZP

$0.99

$

In Stock, Qty 10

0

44

Billy Goat 8041031

Screwcap 5/16-18 x 1/4" HEX ZP

$0.99

$

In Stock, Qty 5

0

47

Billy Goat 8177013

Washer lock 7/16" S/T Med

$0.99

$

In Stock, Qty 10

0

49

Billy Goat 8160002

Nut Lock 5/16-18 HEX ZP

$0.99

$

In Stock, Qty 10

0

52

Billy Goat 8041054

Screwcap 3/8" - 16 x 2"

$0.99

$

In Stock, Qty 6

0

55

Billy Goat 890408

Screw 3/8" x 1 1/2" TCS

$3.49

$

Usually ships in 2-11 days

0

56

Billy Goat 8041050

Screwcap 3/8"-16 x 1" HCS ZP

$0.99

$

In Stock, Qty 6

0

64

Billy Goat 8181007

Washer Lock 1/4" External Tooth

$0.99

$

In Stock, only 4 left!

0

67

Billy Goat 8041028

Screwcap 5/16-18 x 1" HEX ZP

$0.99

$

In Stock, Qty 9

0

80

Billy Goat 8042033

Screwcap 7/16-20 x 4 1/2" HCS GR. 5

$7.99

$

Usually ships in 2-11 days

0

84

Billy Goat 8172019

Washer 3/8 Sae

$0.99

$

Usually ships in 2-11 days

0

85

Billy Goat 8041002

Screwcap 1/4" - 20 x 1/2" HCS ZP

$0.99

$

In Stock, only 1 left!

0

107

Billy Goat 521114

Cable Clutch Blade HP

$47.99

$

In Stock, only 1 left!

0

112

Billy Goat 521143

Cable Guard HP

$

$

Currently unavailable

113

Billy Goat 900407

Ty Wrap

$0.99

$

In Stock, only 3 left!

0
