HP 35 (UT-65057) - Homelite Propane Construction Heater Heater - Exploded View Parts Diagram

Propane Construction Heater

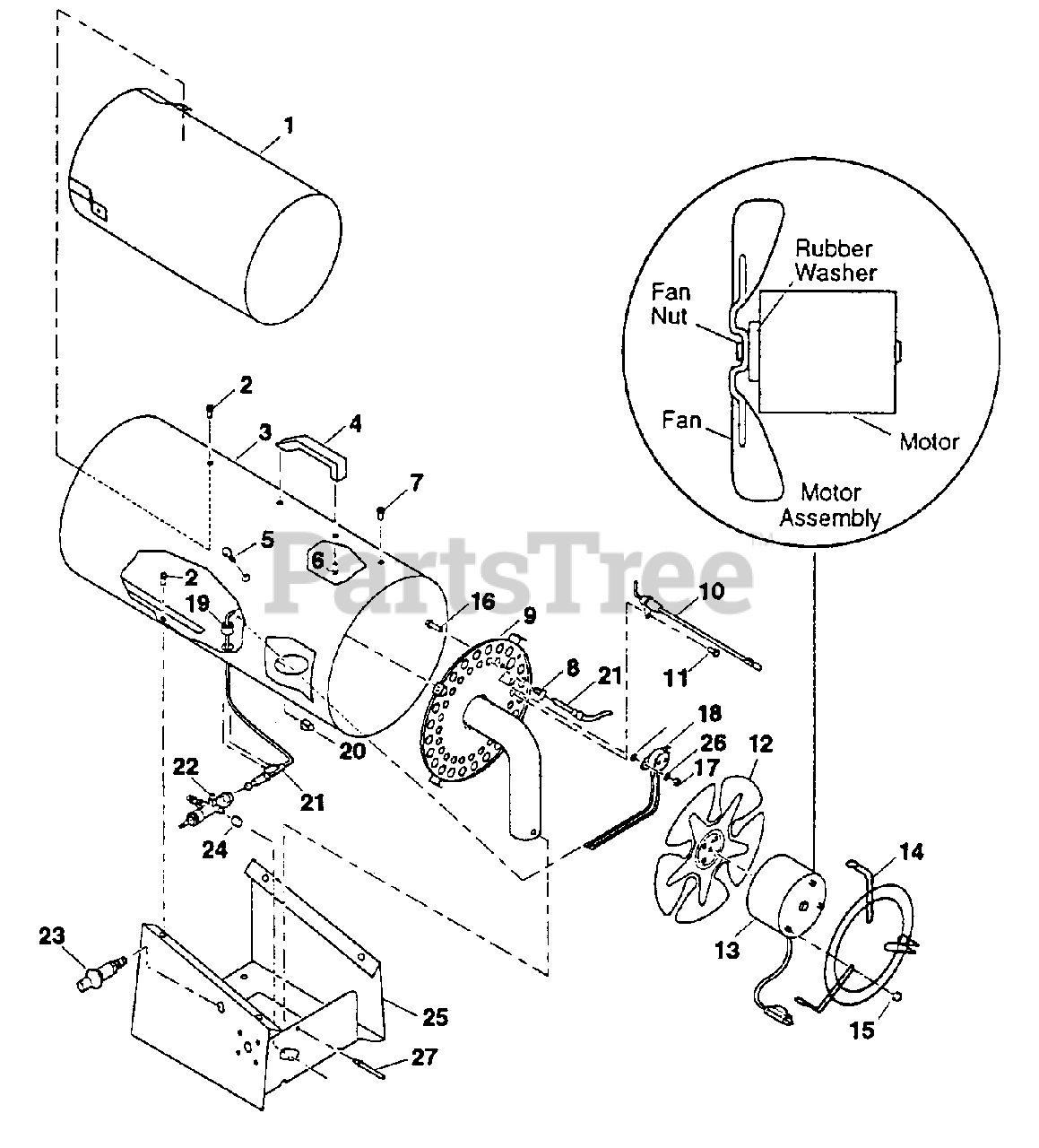

Heater - Exploded View Parts Diagram

  • Title

1

Homelite 0475401

INNER SHELL (Combustion Chamber)

$

$

Currently unavailable

2

Homelite 0052910

SCREW-Hex Tap (#10-16 X 3/8")

$

$

Currently unavailable

3

Homelite 0475402

OUTER SHELL

$

$

Currently unavailable

4

Homelite 0052944

HANDLE

$

$

Currently unavailable

5

Homelite 0475403

SCREW-Hex Tap Shoulder

$

$

Currently unavailable

6

Homelite 0052912

SCREW-Hex Tap (#10-16 X 3/4")

$

$

Currently unavailable

7

Homelite 0475404

SCREW-Hex Tap (#12-14 X 1/2")

$

$

Currently unavailable

8

Homelite 0332731

THERMOCOUPLE CLIP

$

$

Currently unavailable

9

Homelite 0475405

BURNER ASSEMBLY

$

$

Currently unavailable

10

Homelite 0475406

ELECTRODE IGNITOR

$

$

Currently unavailable

11

Homelite 0108632

SCREW-Hex Tap (#8- 1 8 X 3/8")

$

$

Currently unavailable

12

Homelite 0475408

FAN

$

$

Currently unavailable

13

Homelite 0475409

MOTOR ASSEMBLY

Note: (Includes Rubber Washer and Fan Nut)

$

$

Currently unavailable

14

Homelite 0475410

FAN GUARD

$

$

Currently unavailable

15

Homelite 0475411

CAPTIVE WASHER NUT

$

$

Currently unavailable

16

Homelite 0332620

SCREW-Hex (#4-40 X 1/4")

$

$

Currently unavailable

17

Homelite 0108630

NUT-Hex (#4-40)

$

$

Currently unavailable

18

Homelite 0475412

THERMAL SWITCH ASSEMBLY

$

$

Not available

19

Homelite 0332614

UNIVERSAL BUSHING

$

$

Currently unavailable

20

Homelite 0475413

WIRE CLIP

$

$

Currently unavailable

21

Homelite 0475414

THERMOCOUPLE

$

$

Currently unavailable

22

Homelite 0475415

VALVE/ORIFICE ASSEMBLY

$

$

Currently unavailable

23

Homelite 0108724

PIEZO IGNITOR

$

$

Currently unavailable

24

Homelite 0332703

SLEEVE CAP

$

$

Currently unavailable

25

Homelite 0475416

BASE

$

$

Currently unavailable

26

Homelite 0475417

WASHER-Lock (#4)

$

$

Currently unavailable

27

Homelite 0475418

STEEL RIVET (1/8")

$

$

Currently unavailable

Homelite 0475420

GENERAL INFORMATION DECAL

Note: NOT SHOWN

$

$

Currently unavailable

Homelite 0475422

OPERATION DECAL

Note: NOT SHOWN

$

$

Currently unavailable

Homelite 0332612

LP WARNING DECAL

Note: NOT SHOWN

$

$

Currently unavailable

Homelite 0475423

NOTICE DECAL

Note: NOT SHOWN

$

$

Currently unavailable

Homelite 0475424

ACCESSORIES, REGULATOR & HOSE ASSEMBLY

$

$

Currently unavailable

Homelite 0332737

10' HOSE

$

$

Currently unavailable

Homelite 0475425

REGULATOR

$

$

Currently unavailable

Homelite 0332653

POL CONNECTOR

$

$

Currently unavailable

Homelite 0475426

TANK STABILIZER

$

$

Currently unavailable
