HP250 CA (NA1) - Honda Powered Carrier, Made in Japan (SN: NA1-2000001 - NA1-2599999) CLUTCH OUTER Parts Diagram

Powered Carrier, Made in Japan

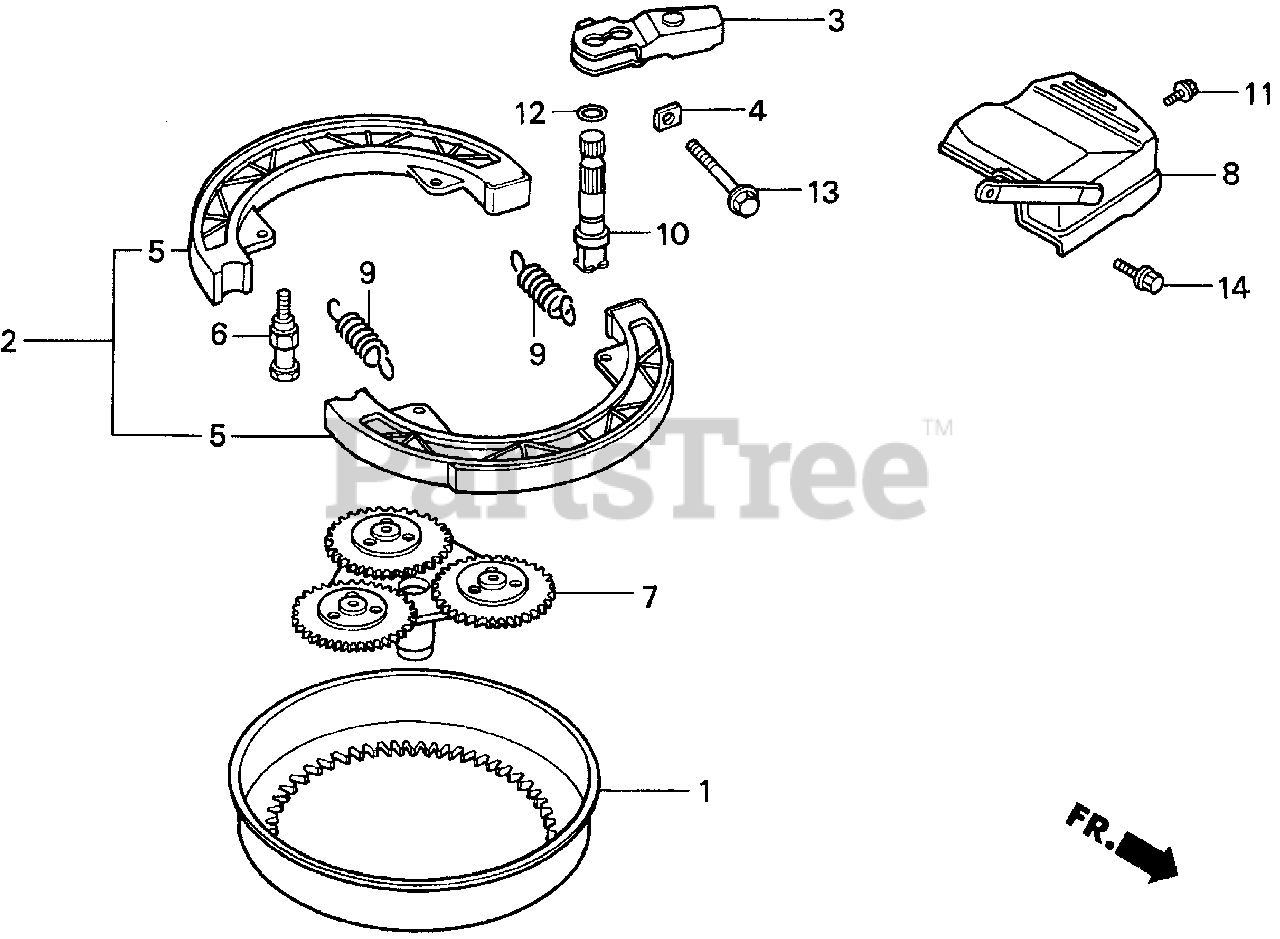

CLUTCH OUTER Parts Diagram

  • Title

1

Honda 22101-729-720

CLUTCH (OUTER)

$95.99

$

Usually ships in 3-6 days

0

2

Honda 225A0-729-003

SEE PART DETAILS - SUP; SHOE SET, CLUTCH

$

$

Currently unavailable

3

Honda 22520-740-000

SEE PART DETAILS - SUP; ARM, CLUTCH

$

$

Currently unavailable

4

Honda 22524-729-000

PLATE, ARM LOCK

$

$

Not available

6

Honda 22533-729-000

PIN, ANCHOR

$16.99

$

In Stock, only 1 left!

0

7

Honda 22610-740-000

PLATE, DRIVE

$

$

Not available

8

Honda 22840-740-000

COVER, CLUTCH ARM

Note: Use from Frame SN 2006188.

$

$

Not available

9

Honda 45133-329-000

SPRING, FR. BRAKE SHOE

$4.49

$

Usually ships in 3-6 days

0

10

Honda 45141-729-003

SEE PART DETAILS - SUP; CAM, CLUTCH

$

$

Currently unavailable

11

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: Use from Frame SN 2006188.

$2.49

$

In Stock, Qty 20+

0

12

Honda 91302-GE0-000

O-RING (8.8X1.9)

$5.49

$

In Stock, only 1 left!

0

13

Honda 95701-06032-00

BOLT, FLANGE (6X32)

$2.99

$

In Stock, Qty 5

0

14

Honda 95701-08016-08

BOLT, FLANGE (8X16)

Note: Use from Frame SN 2006188.

$2.99

$

In Stock, only 3 left!

0
