HP250 CA (NA1) - Honda Powered Carrier, Made in Japan (SN: NA1-2000001 - NA1-2599999) HANDLEBAR Parts Diagram

Powered Carrier, Made in Japan

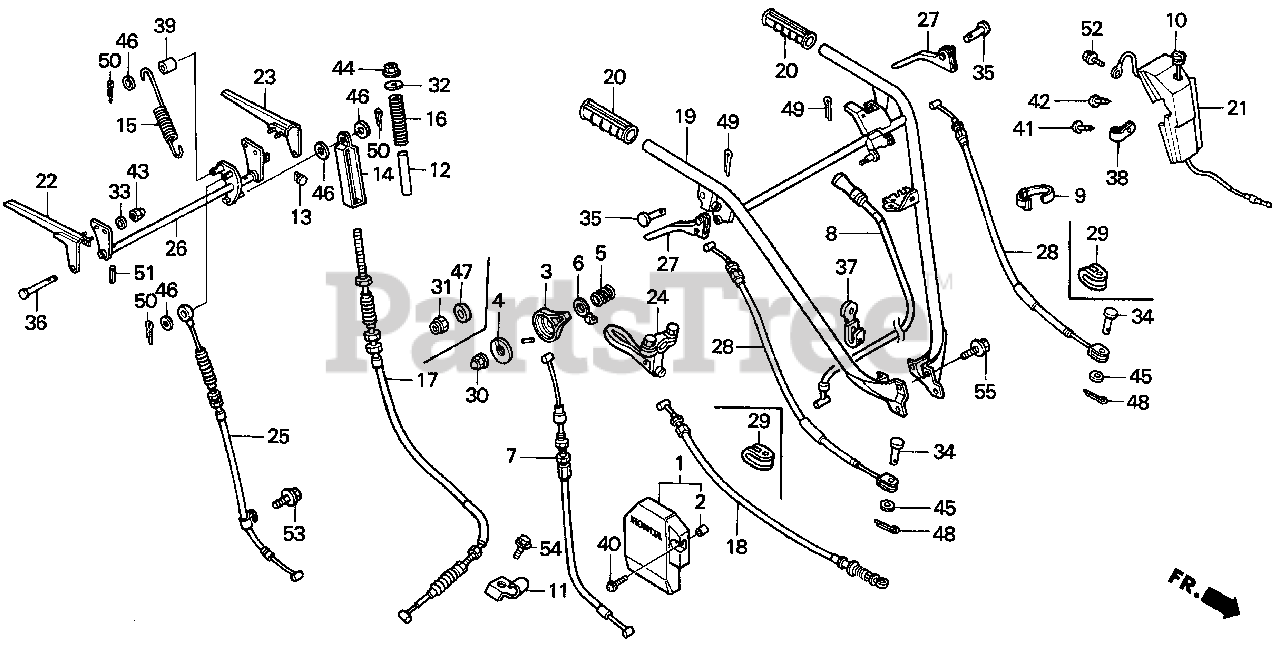

HANDLEBAR Parts Diagram

  • Title

1

Honda 16591-ZG1-771

COVER, CONTROL

$

$

Not available

2

Honda 16598-ZG1-750

COLLAR, CONTROL COVER

$2.49

$

In Stock, Qty 8

0

3

Honda 17851-VA2-000

LEVER, THROTTLE

$11.99

$

In Stock, only 1 left!

0

4

Honda 17857-VA4-000

PLATE, THROTTLE LEVER

$6.99

$

Usually ships in 3-6 days

0

5

Honda 17858-VA4-000

SPRING, THROTTLE LEVER

$3.99

$

In Stock, Qty 11

0

6

Honda 17859-VA4-000

SEAT, SPRING

$5.99

$

Usually ships in 3-6 days

0

7

Honda 17910-740-612

CABLE, THROTTLE

$

$

Not available

9

Honda 32161-438-000

BAND, CABLE

$4.99

$

Usually ships in 3-6 days

0

10

Honda 36110-740-611

SWITCH ASSY., ENGINE STOP

$

$

Currently unavailable

11

Honda 45111-740-000

HOLDER, BRAKE CABLE

$11.99

$

Usually ships in 3-6 days

0

12

Honda 46535-740-000

COLLAR, BRAKE SPRING

$

$

Not available

13

Honda 47117-196-000

RUBBER, STOPPER

$3.49

$

Usually ships in 3-6 days

0

14

Honda 47252-740-610

SEE PART DETAILS - SUP; HOLDER, BRAKE SPRING

$

$

Currently unavailable

15

Honda 47255-740-610

SPRING, BRAKE RETURN

$

$

Not available

16

Honda 47273-740-610

SPRING, BRAKE LOAD SETTING

$8.99

$

In Stock, only 1 left!

0

17

Honda 47274-740-611

CABLE, BRAKE

$

$

Not available

18

Honda 52510-740-631

CABLE, CARRIER LOCK

$26.99

$

Usually ships in 3-6 days

0

19

Honda 53110-740-C40

SEE PART DETAILS - SUP; PIPE, HANDLE
(Superseded to 53110-740-C41)

$

$

Not available

19

Honda 53110-740-C41

SEE PART DETAILS - PRI; PIPE, HANDLE

$

$

Not available

20

Honda 53321-708-000

GRIP, HANDLE

$16.99

$

In Stock, only 2 left!

0

21

Honda 54220-740-611ZA

COVER, CONTROL *NH105* (MAT BLACK)

$

$

Not available

22

Honda 54415-740-611

SEE PART DETAILS - SUP; LEVER, R. CLUTCH
(Superseded to 54415-740-613)

$51.99

$

Usually ships in 3-6 days

0

23

Honda 54416-740-611

SEE PART DETAILS - SUP; LEVER, L. CLUTCH

$

$

Not available

24

Honda 54420-740-003

LEVER, CARRIER LOCK

$43.99

$

Usually ships in 3-6 days

0

25

Honda 54510-740-611

CABLE, CLUTCH

$

$

Not available

26

Honda 54550-740-611

SHAFT, CLUTCH LEVER

$

$

Not available

27

Honda 54611-740-010

SEE PART DETAILS - PRI; LEVER, SIDE CLUTCH

$29.99

$

Usually ships in 3-6 days

0

28

Honda 54720-740-611

CABLE, SIDE CLUTCH

$

$

Not available

30

Honda 90201-415-000

NUT, CAP (6MM)

$2.49

$

Usually ships in 3-6 days

0

32

Honda 90434-SA0-000

WASHER, PLAIN (6MM)

$2.99

$

In Stock, only 1 left!

0

33

Honda 90539-836-000

WASHER (6MM)

$2.99

$

Usually ships in 3-6 days

0

34

Honda 90754-740-010

PIN, SIDE CLUTCH ARM

$4.49

$

Usually ships in 3-6 days

0

35

Honda 90755-740-000

PIN, SIDE CLUTCH LEVER

$5.49

$

Usually ships in 3-6 days

0

36

Honda 90755-740-610

PIN, CLUTCH LEVER

$13.99

$

Usually ships in 3-6 days

0

38

Honda 91475-SB6-000

CLIP, WIRE HARNESS

$10.99

$

Usually ships in 3-6 days

0

39

Honda 91555-740-610

COLLAR, CLUTCH LEVER

$4.49

$

Usually ships in 3-6 days

0

40

Honda 93891-05014-07

SCREW-WASHER (5X14)

$1.49

$

Usually ships in 3-6 days

0

41

Honda 93903-34110

SCREW, TAPPING (4X8)

$1.49

$

Usually ships in 3-6 days

0

42

Honda 93903-35210

SCREW, TAPPING (5X12)

$0.99

$

Usually ships in 3-6 days

0

43

Honda 94021-06020

SEE PART DETAILS - PRI; NUT, CAP (6MM)

$2.49

$

Usually ships in 3-6 days

0

44

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

45

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

46

Honda 94102-10000

WASHER, PLAIN (10MM)

$0.99

$

In Stock, only 2 left!

0

48

Honda 94201-20120

PIN, COTTER (2.0X12)

$1.49

$

In Stock, Qty 7

0

49

Honda 94201-20220

PIN, COTTER (2.0X22)

$1.49

$

Usually ships in 3-6 days

0

49

Honda 94201-20350

PIN, COTTER (2.0X35)

$1.49

$

Usually ships in 3-6 days

0

50

Honda 94201-25220

PIN, COTTER (2.5X22)

$1.49

$

Usually ships in 3-6 days

0

51

Honda 94305-50183

PIN, SPRING (5X18)

$1.99

$

Usually ships in 3-6 days

0

52

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.49

$

In Stock, Qty 20+

0

53

Honda 95700-06012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Not available

53

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$1.99

$

In Stock, Qty 20+

0

54

Honda 95701-06014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14)

$1.49

$

In Stock, Qty 10

0

55

Honda 95700-08016-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X16)
(Superseded to 95701-08016-00)

$2.49

$

In Stock, Qty 20+

0

55

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0
