HP250 CA (NA1) - Honda Powered Carrier, Made in Japan (SN: NA1-2000001 - NA1-2599999) REDUCTION CASE Parts Diagram

Powered Carrier, Made in Japan

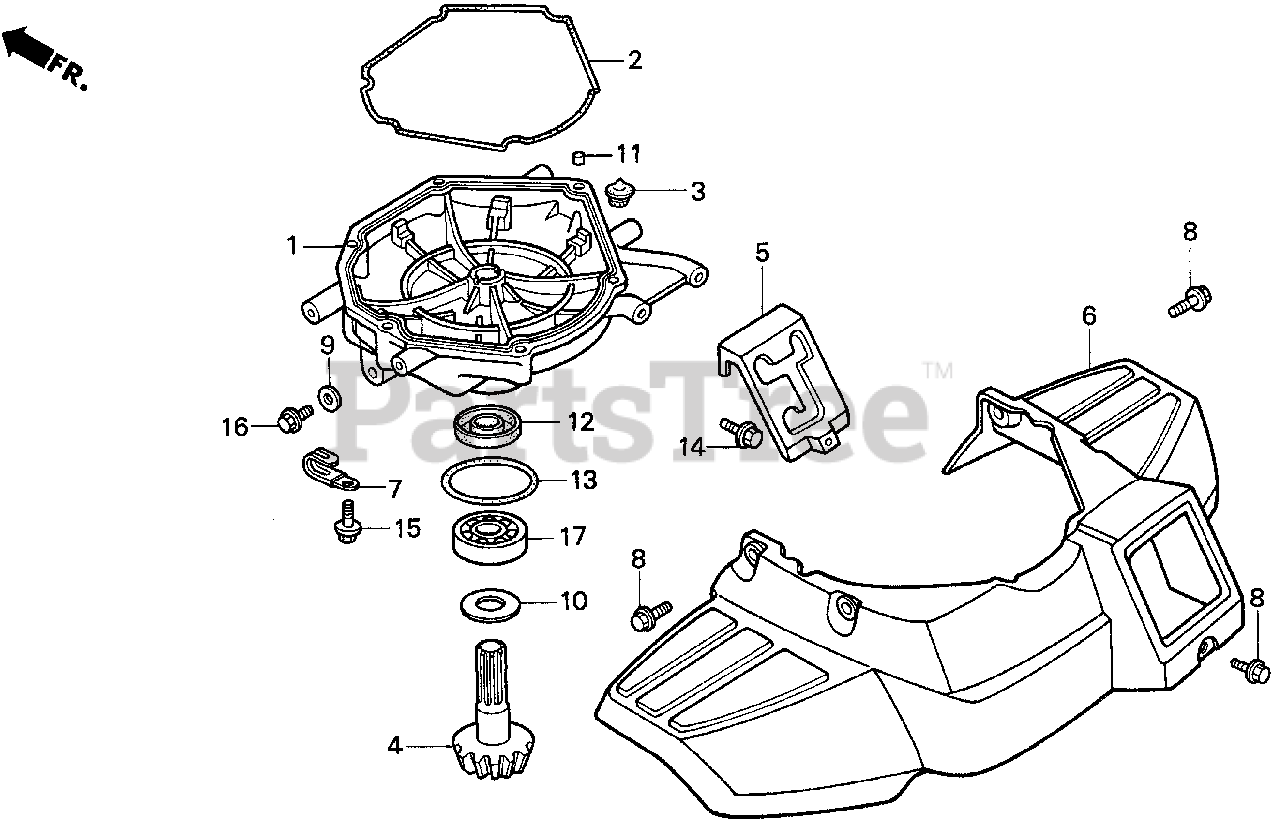

REDUCTION CASE Parts Diagram

  • Title

1

Honda 211A1-740-000

CASE, REDUCTION

$

$

Not available

2

Honda 21271-729-000

O-RING (208MM)

$13.99

$

Usually ships in 3-6 days

0

3

Honda 25611-729-000

CAP, TRANSMISSION OIL
(Superseded to 25611-729-010)

$4.49

$

Usually ships in 3-6 days

0

4

Honda 41131-740-000

PINION, BEVEL

$137.99

$

Usually ships in 3-6 days

0

5

Honda 50131-740-000

COVER, CHANGE GUIDE

$24.99

$

Usually ships in 3-6 days

0

6

Honda 61110-740-000ZA

SEE PART DETAILS - SUP; FENDER, MAIN *R8* (BRIGHT RED)

$

$

Currently unavailable

7

Honda 90010-GE0-710

CLIP, TUBE

$2.99

$

Usually ships in 3-6 days

0

8

Honda 90111-162-000

BOLT, FLANGE (6MM)

$3.49

$

Usually ships in 3-6 days

0

9

Honda 90481-705-000

WASHER (10.5MM)

$1.49

$

Usually ships in 3-6 days

0

10

Honda 90540-740-000

WASHER, BEVEL GEAR

$5.99

$

Usually ships in 3-6 days

0

11

Honda 90701-HC4-000

PIN, DOWEL (8X12)

$3.49

$

Usually ships in 3-6 days

0

12

Honda 91202-GG2-710

OIL SEAL (17X32X5)

$

$

Currently unavailable

13

Honda 91351-740-003

O-RING (41.7X3.5)

$2.99

$

In Stock, only 2 left!

0

14

Honda 95701-06014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14)

$1.49

$

In Stock, Qty 10

0

15

Honda 95701-06045-07

BOLT, FLANGE (6X45)

$2.99

$

In Stock, only 1 left!

0

16

Honda 95701-10016-08

BOLT, FLANGE (10X16)

$2.99

$

In Stock, only 1 left!

0

17

Honda 96100-62030-00

BEARING, RADIAL BALL (6203)

$10.99

$

Usually ships in 3-6 days

0
