HP400 K1 BA (NAA) - Honda Powered Carrier, Made in Japan (SN: NAA-2300001 - NAA-2599999) CYLINDER HEAD Parts Diagram

Powered Carrier, Made in Japan

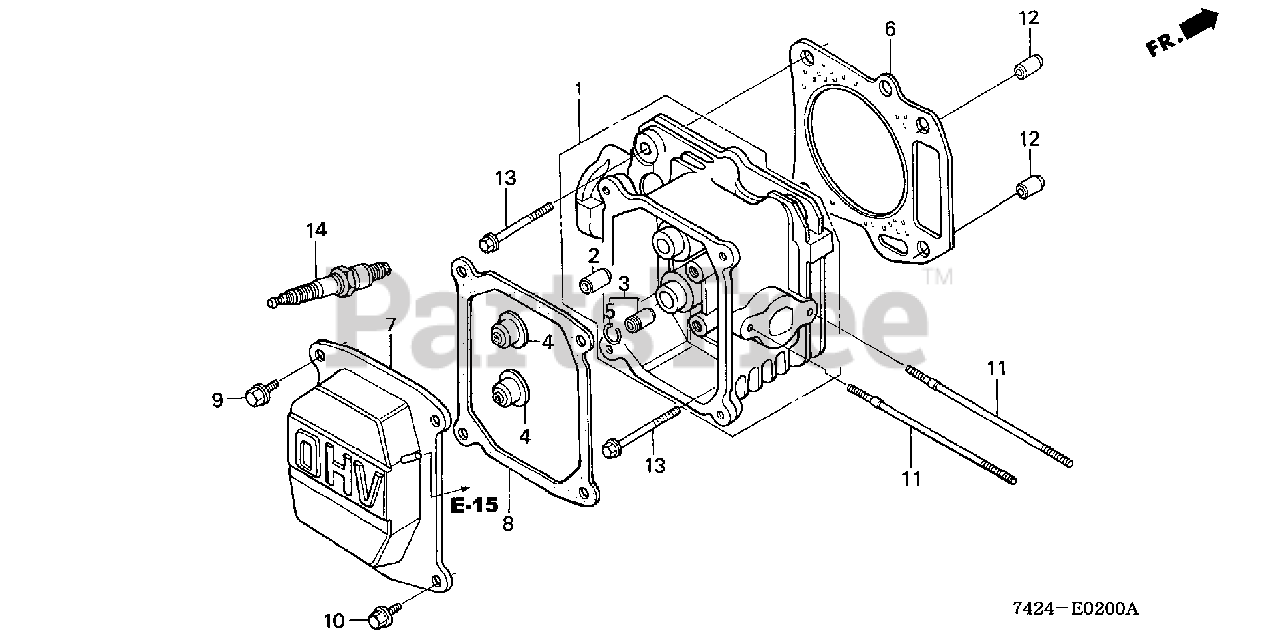

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12200-ZE6-T00

SEE PART DETAILS - SUP; CYLINDER HEAD (USA)
(Superseded to 12200-ZE6-406)

$

$

Not available

1

Honda 12200-ZE6-405

SEE PART DETAILS - SUP; CYLINDER HEAD

$

$

Currently unavailable

2

Honda 12204-ZE1-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OS)

$9.99

$

In Stock, only 1 left!

0

3

Honda 12205-ZE1-315

GUIDE, EX. VALVE (OS)

$

$

Not available

4

Honda 12209-ZE6-G02

SEAL, VALVE STEM
(Superseded to 12209-ZE6-003)

$4.99

$

In Stock, Qty 9

0

5

Honda 12216-ZE5-300

CLIP, VALVE GUIDE

$1.99

$

In Stock, Qty 14

0

6

Honda 12251-ZE6-000

GASKET, CYLINDER HEAD

$11.99

$

In Stock, only 2 left!

0

7

Honda 12310-ZE6-G00

COVER, HEAD

$28.99

$

Usually ships in 3-6 days

0

8

Honda 12391-ZE7-M10

GASKET, CYLINDER HEAD COVER

$13.99

$

In Stock, Qty 7

0

9

Honda 90014-952-000

BOLT, FLANGE (6X14)

$3.49

$

In Stock, Qty 17

0

10

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: Use from Engine SN 2460985.

$2.49

$

In Stock, Qty 20+

0

10

Honda 90016-ZE1-000

BOLT, FLANGE (6X13)

Note: Use up to Engine SN 2460984.

$4.49

$

Usually ships in 3-6 days

0

11

Honda 90043-ZE1-010

SEE PART DETAILS - SUP; BOLT, STUD (6X109)

Note: Use up to Engine SN 2487632.

$7.49

$

Usually ships in 3-6 days

0

11

Honda 90043-ZE1-020

SEE PART DETAILS - PRI; BOLT, STUD (6X109)

Note: Use up to Engine SN 2487632.

$7.49

$

In Stock, Qty 6

0

11

Honda 90043-ZE6-000

BOLT, STUD (6X109)

Note: Use from Engine SN 2487633.

$8.99

$

In Stock, only 2 left!

0

12

Honda 94301-10160

PIN A, DOWEL (10X16)

$3.49

$

In Stock, only 3 left!

0

13

Honda 95701-08045-00

BOLT, FLANGE (8X45)

$2.49

$

In Stock, Qty 16

0

14

Honda 98079-54846

SPARK PLUG (BPR4ES) (NGK)

$3.99

$

In Stock, Qty 20+

0

14

Honda 98079-54855

SPARK PLUG (W14EPR-U) (DENSO)

$3.99

$

Usually ships in 3-6 days

0
