HP400 K3 BA/B (NAA) - Honda Powered Carrier, Made in Japan (SN: NAA-2800001 - NAA-2800447) FRAME Parts Diagram

Powered Carrier, Made in Japan

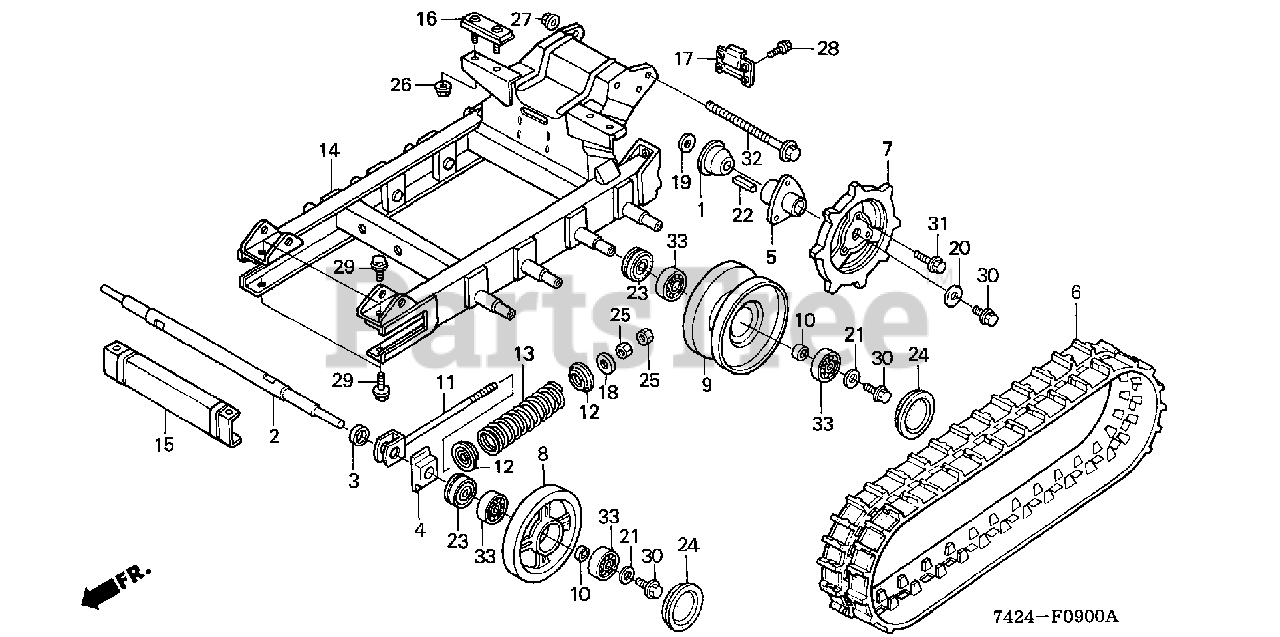

FRAME Parts Diagram

  • Title

1

Honda 21912-742-000

GUARD, GRASS

$

$

Not available

2

Honda 42311-740-000ZA

SHAFT, FR. WHEEL *NH1* (BLACK)

$

$

Not available

3

Honda 42312-742-000

COLLAR, FR. SHAFT

$7.99

$

Usually ships in 3-6 days

0

4

Honda 42313-740-003

SLIDER, CRAWLER TENSION

$

$

Not available

5

Honda 42703-740-000

HUB, CRAWLER SPROCKET

$

$

Not available

6

Honda 42755-742-000ZA

SEE PART DETAILS - SUP; CRAWLER (60PX37L) *NH1* (BLACK)

$

$

Currently unavailable

7

Honda 42756-742-000

SEE PART DETAILS - SUP; WHEEL, DRIVE SPROCKET

$

$

Currently unavailable

8

Honda 42757-740-000ZA

SEE PART DETAILS - PRI; WHEEL, DRIVEN *NH1* (BLACK)

$109.99

$

Usually ships in 3-6 days

0

9

Honda 42758-740-010

WHEEL, INDUCTION

$84.99

$

Usually ships in 3-6 days

0

11

Honda 42771-742-010

BOLT, CRAWLER TENSION

$

$

Not available

12

Honda 42772-742-000

HOLDER, TENSION SPRING

$13.99

$

Usually ships in 3-6 days

0

13

Honda 42773-742-000

SEE PART DETAILS - PRI; SPRING, CRAWLER TENSION

$

$

Not available

14

Honda 50100-742-C10

FRAME

$

$

Not available

15

Honda 50120-742-000

CROSSMEMBER, FR.

$79.99

$

Usually ships in 3-6 days

0

16

Honda 52111-742-700

RUBBER, CARRIER MOUNTING

$32.99

$

Usually ships in 3-6 days

0

17

Honda 63516-742-700

PLATE, DUMP LOCK

$

$

Not available

18

Honda 90401-371-000

WASHER (12.2X33X3.2)

$8.99

$

Usually ships in 3-6 days

0

20

Honda 90504-ZA0-000

WASHER (10.5MM)

$6.49

$

Usually ships in 3-6 days

0

21

Honda 90531-703-000

WASHER, SPECIAL (10MM)

$

$

Not available

22

Honda 90760-740-010

KEY (5X5)

$11.99

$

Usually ships in 3-6 days

0

23

Honda 91256-740-003

OIL SEAL (24X47X15)

$22.99

$

Usually ships in 3-6 days

0

24

Honda 91261-740-003

PLUG, SEAL (47X10)

$11.99

$

Usually ships in 3-6 days

0

25

Honda 94030-12200

NUT, HEX. (12MM)

$2.49

$

Usually ships in 3-6 days

0

26

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

27

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM)

$2.49

$

In Stock, Qty 20+

0

28

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

$2.99

$

In Stock, Qty 13

0

29

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20)

$2.99

$

In Stock, Qty 13

0

30

Honda 95701-10025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (10X25)

$3.49

$

In Stock, Qty 7

0

31

Honda 95701-10032-00

BOLT, FLANGE (10X32)

$2.49

$

Usually ships in 3-6 days

0

32

Honda 95801-10160-00

BOLT, FLANGE (10X160)

$5.99

$

Usually ships in 3-6 days

0

33

Honda 96100-62040-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204)

$18.99

$

In Stock, only 3 left!

0
