HP400 K3 BA/C (NAA) - Honda Powered Carrier, Made in Japan (SN: NAA-2800448 - NAA-9999999) TRANSMISSION CASE Parts Diagram

Powered Carrier, Made in Japan

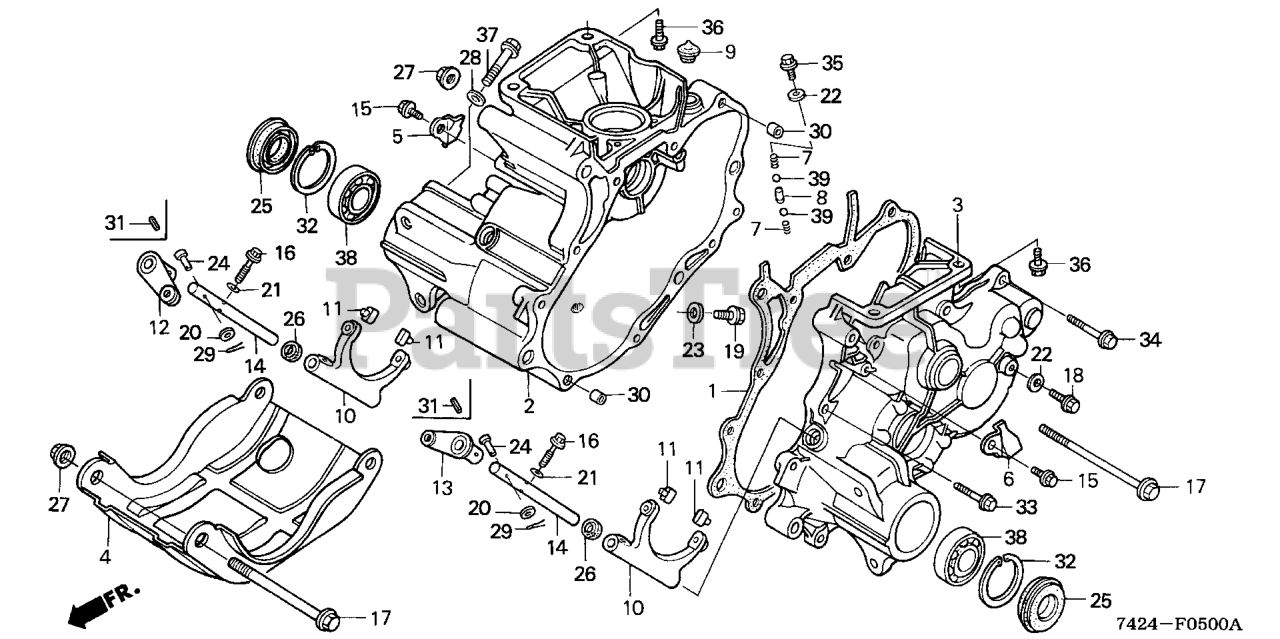

TRANSMISSION CASE Parts Diagram

  • Title

1

Honda 21281-740-020

SEE PART DETAILS - PRI; GASKET, TRANSMISSION

$

$

Not available

2

Honda 21511-740-010

CASE, R. TRANSMISSION

$730.99

$

Usually ships in 3-6 days

0

3

Honda 21611-740-000

SEE PART DETAILS - PRI; CASE, L. TRANSMISSION

$526.99

$

Usually ships in 3-6 days

0

4

Honda 21911-740-000

PROTECTOR, TRANSMISSION CASE

$61.99

$

Usually ships in 3-6 days

0

5

Honda 21913-740-000

PLATE, R. SIDE CLUTCH

$

$

Not available

6

Honda 21914-740-000

PLATE, L. SIDE CLUTCH

$5.49

$

Usually ships in 3-6 days

0

7

Honda 24271-765-000

SPRING, BALL SETTING

$3.49

$

Usually ships in 3-6 days

0

8

Honda 24481-740-000

PIECE, INTERLOCK

$7.99

$

Usually ships in 3-6 days

0

9

Honda 25611-729-010

CAP, TRANS OIL

$5.49

$

Usually ships in 3-6 days

0

10

Honda 40111-740-000

FORK, SIDE CLUTCH

$

$

Not available

11

Honda 40112-740-003

PIN, FORK

$10.99

$

Usually ships in 3-6 days

0

12

Honda 40310-740-010

SEE PART DETAILS - PRI; ARM, R. SIDE CLUTCH

$

$

Not available

13

Honda 40320-740-010

ARM, L. SIDE CLUTCH

$44.99

$

Usually ships in 3-6 days

0

14

Honda 40331-740-000

SHAFT, SIDE CLUTCH ARM

$

$

Not available

15

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 20+

0

16

Honda 90028-634-000

BOLT, SPECIAL (6X21)

$9.49

$

Usually ships in 3-6 days

0

17

Honda 90057-671-000

BOLT, ALTERNATOR

$34.99

$

Usually ships in 3-6 days

0

18

Honda 90111-727-000

BOLT, FLANGE (8X16)

$

$

Not available

19

Honda 90131-ZE1-000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$3.49

$

In Stock, only 4 left!

0

20

Honda 90401-752-003

WASHER (10MM)

$3.49

$

Usually ships in 3-6 days

0

21

Honda 90411-744-000

WASHER, CONICAL SPRING (6MM) Use up to Frame SN 3500085.

$6.49

$

Usually ships in 3-6 days

0

22

Honda 90429-PD1-000

WASHER, SEALING (8MM)

$

$

Currently unavailable

23

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM) (Honda Code 1436583).

$0.99

$

In Stock, Qty 20+

0

24

Honda 90752-735-000

PIN, AUXILIARY CHANGE LEVER

$5.49

$

Usually ships in 3-6 days

0

25

Honda 91206-733-024

SEE PART DETAILS - PRI; OIL SEAL (25X52X9)

$30.99

$

Usually ships in 3-6 days

0

26

Honda 91251-740-003

OIL SEAL (12X18X4.2)

$6.99

$

Usually ships in 3-6 days

0

27

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0483867).

$2.49

$

In Stock, Qty 19

0

28

Honda 94101-10000

SEE PART DETAILS - PRI; WASHER, PLAIN (10MM)

$1.99

$

Usually ships in 3-6 days

0

29

Honda 94201-20120

PIN, COTTER (2.0X12)

$1.49

$

Usually ships in 3-6 days

0

30

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$3.49

$

In Stock, only 3 left!

0

32

Honda 94520-52000

CIRCLIP (INNER) (52MM)

$4.49

$

Usually ships in 3-6 days

0

33

Honda 95701-06032-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 2105856).

$2.99

$

In Stock, Qty 5

0

34

Honda 95701-06040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X40) (Honda Code 2410942).

$2.99

$

Usually ships in 3-6 days

0

35

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

$2.99

$

In Stock, Qty 20+

0

36

Honda 95701-08028-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X28) (Honda Code 2581387).

$1.99

$

In Stock, Qty 8

0

37

Honda 95801-10065-00

BOLT, FLANGE (10X65)
(Superseded to 90151-HC5-000)

$12.99

$

Usually ships in 3-6 days

0

38

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205) (Honda Code 0636977).

$28.99

$

In Stock, Qty 8

0

39

Honda 96211-08000

BALL, STEEL (#8) (1/4)

$1.99

$

In Stock, only 3 left!

0
