HPW 1000 E/CSA (UT-01809) - Homelite Pressure Washer Exploded View Parts Diagram

Pressure Washer

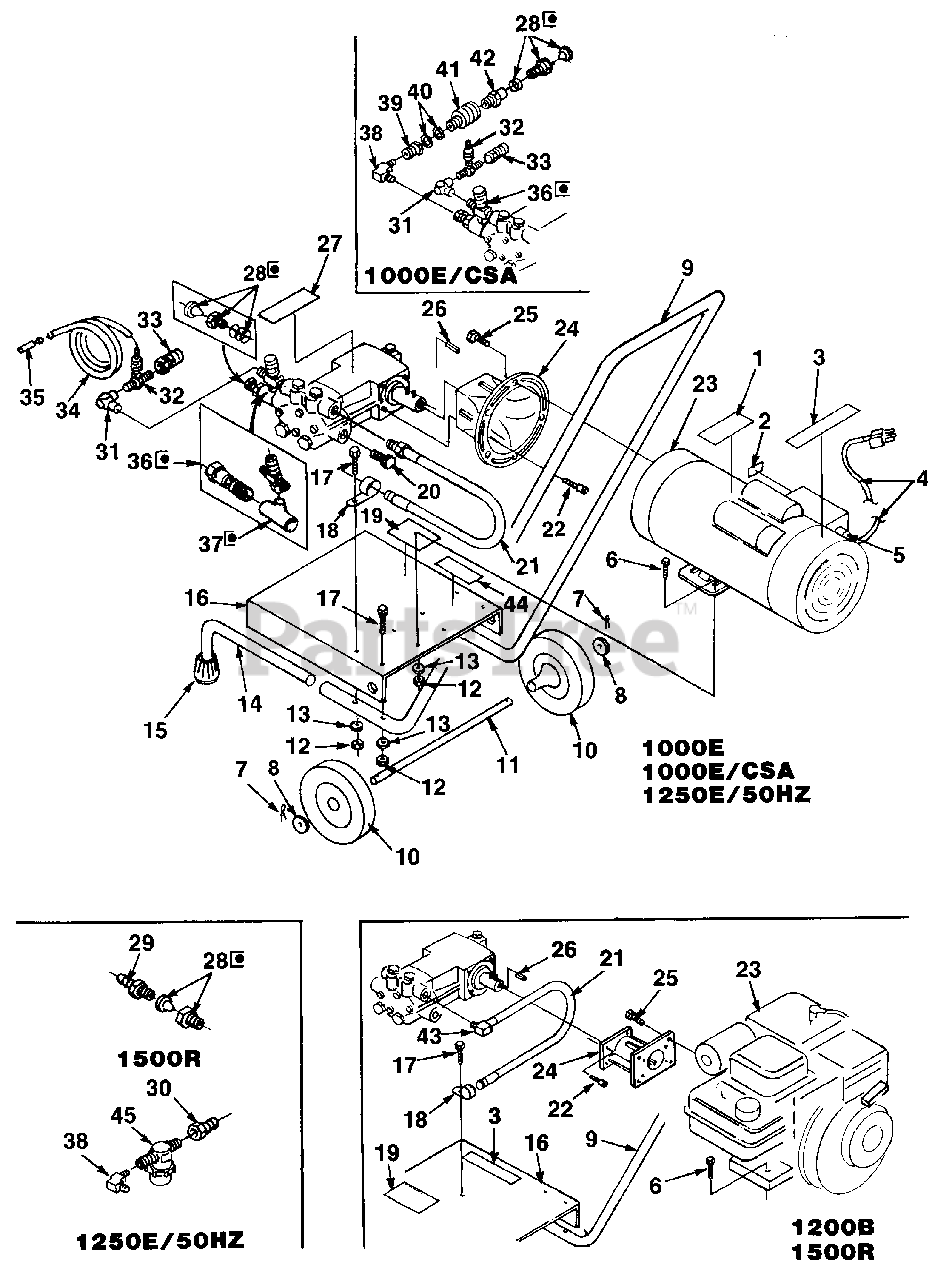

Exploded View Parts Diagram

  • Title

1

Homelite 01785

USE A01372A
(Superseded to A01372A)

$

$

Not available

2

Homelite 00037

Not used on this product

$8.99

$

Usually ships in 3-7 days

0

3

Homelite 01426

DECAL

$11.99

$

Usually ships in 3-7 days

0

4

Homelite 01893

ELECT. CORD

$465.99

$

Usually ships in 3-7 days

0

5

Homelite 49960

NLA(NO LONGER AVAILABLE)

$

$

Not available

6

Homelite 80083

BOLT- (5/16-18 x 3/4")

$

$

Not available

7

Homelite 86303

COTTER PIN (RDP3) TBO

$

$

Not available

8

Homelite JA452012

$

$

Currently unavailable

9

Homelite 499211

NLA(NO LONGER AVAILABLE)

$

$

Not available

10

Homelite JA993958

WHEEL & TIRE
(Superseded to UP06670)

$

$

Not available

11

Homelite 49923

AXLE

$33.99

$

Usually ships in 3-7 days

0

12

Homelite 81162

NUT

$

$

Not available

13

Homelite 83030

3WASHER(HPW1200B) TBO

$

$

Not available

14

Homelite 499581

NLA(NO LONGER AVAILABLE)

$

$

Not available

15

Homelite 49959

RUBBER TIP

$12.99

$

Usually ships in 3-7 days

0

16

Homelite 499221

$

$

Currently unavailable

17

Homelite 80288

SCREW - Hex Hd. (5/16-18 X 1 3/4")
(Superseded to UP03388)

$

$

Not available

18

Homelite 49967

CLAMP

$8.99

$

Usually ships in 3-7 days

0

19

Homelite 49974

OPER DECAL

$14.99

$

Usually ships in 3-7 days

0

20

Homelite 01405

PLUG1/2(HPW1200B) TBO

$

$

Not available

21

Homelite 49911

PULSE HOSE(HPW1000E TBO

$

$

Not available

22

Homelite 0151914

$

$

Currently unavailable

23

Note: For engine replacement parts locate the engine brand name, model number, and type number and consult the appropiate dealer in your area.

$

$

Not available

24

Homelite 0151928

$

$

Currently unavailable

25

Homelite 0151932

$

$

Currently unavailable

26

Homelite 0151930

$

$

Currently unavailable

27

Homelite 01894

ELECT. DECAL

$8.99

$

Usually ships in 3-7 days

0

28

Homelite A02244

SPRING & ADAPTOR

$

$

Not available

Homelite 02243

Screen & Gasket

$

$

Not available

31

Homelite 49968

NLA(NO LONGER AVAILABLE)

$

$

Not available

32

Homelite 49910

USE 03037

$

$

Not available

33

Homelite 49914

FEMALE SOCKE TBO

$

$

Not available

34

Homelite 01584

NLA(NO LONGER AVAILABLE)

$

$

Not available

35

Homelite 01794

STRAINER

$26.99

$

Usually ships in 3-7 days

0

36

Homelite A0152022

NLA(NO LONGER AVAILABLE)

$

$

Currently unavailable

37

Homelite A0152028

NLA(NO LONGER AVAILABLE)

$

$

Currently unavailable

38

Homelite 49970

STREET ELBOW

$100.99

$

Usually ships in 3-7 days

0

39

Homelite 01981

ADAPTER

$33.99

$

Usually ships in 3-7 days

0

40

Homelite 97597

WASHER

$9.49

$

Usually ships in 3-7 days

0

41

Homelite 01895

B FLOW PREVENT

$121.99

$

Usually ships in 3-7 days

0

42

Homelite 01980

ADAPTER

$33.99

$

Usually ships in 3-7 days

0

44

Homelite 01786

FLAM. DECAL

$8.99

$

Usually ships in 3-7 days

0
