HPW 1550 (UT-01812) - Homelite Plus Pressure Washer Unloader Parts Diagram

Plus Pressure Washer

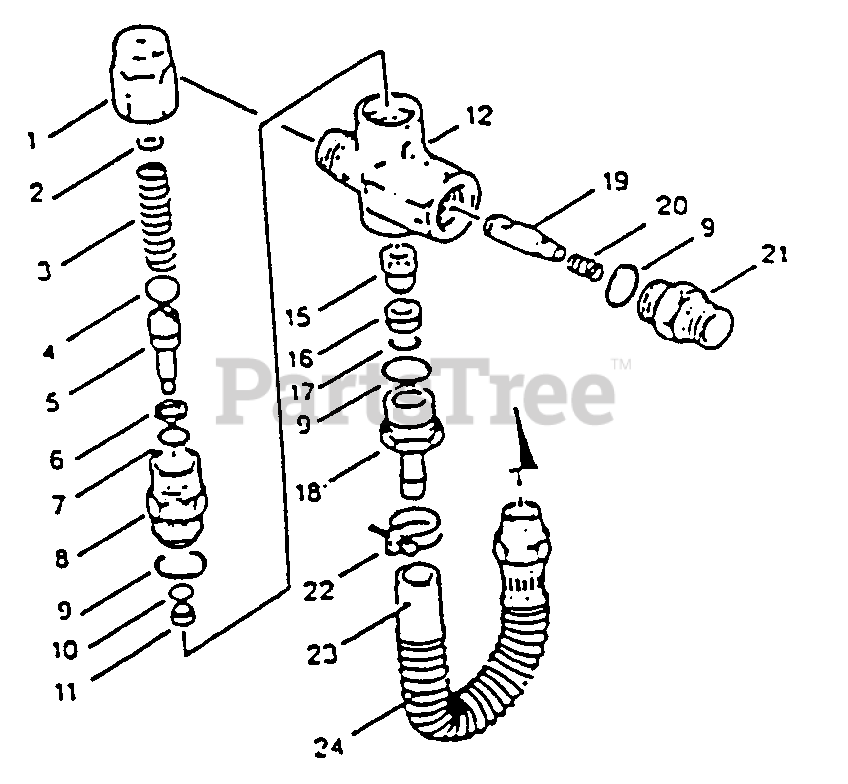

Unloader Parts Diagram

  • Title

1

Homelite E108113 BB

Hex Adjusting Cap

Note: All Models

$

$

Currently unavailable

2

Homelite E12488

Washer-Spring

Note: All Models

$

$

Currently unavailable

3

Homelite E107671

Coil Spring - 1500 PSI

Note: All Models

$

$

Currently unavailable

4

Homelite E107672 BB

Spring Retainer

Note: All Models

$

$

Currently unavailable

5

Homelite E45694 BB

Piston Stem (M5)

Note: All Models

$

$

Not available

6

Homelite E20184 T

Back-up Ring

Note: All Models

$

$

Currently unavailable

7

Homelite E14190 B

O-ring

Note: All Models

$

$

Not available

8

Homelite E107673 BB

Piston Retainer

Note: All Models

$

$

Currently unavailable

9

Homelite E13969 B

O-ring

Note: All Models

$

$

Currently unavailable

10

Homelite E14759 B

O-ring

Note: All Models

$

$

Currently unavailable

11

Homelite E107675 T

Back-up Ring

Note: All Models

$

$

Currently unavailable

12

Homelite E107669 BB

Body

Note: All Models

$

$

Currently unavailable

15

Homelite E45696 BBS

Valve and Ball Assembly (M5)

Note: All Models

$

$

Currently unavailable

16

Homelite E107680 S

Valve Seat

Note: All Models

$

$

Currently unavailable

17

Homelite E13963 B

O-ring

Note: All Models

$

$

Currently unavailable

18

Homelite E45865 BB

By-Pass Fitting w/Barb

Note: All Models

$

$

Currently unavailable

19

Homelite E45203 BB

Flow balancer w/o-ring

Note: All Models

$

$

Currently unavailable

20

Homelite E45924 S

Spring - 85 G

Note: All Models

$

$

Currently unavailable

21

Homelite E107681 BB

Discharge Fitting 3/8" M

Note: All Models

$

$

Currently unavailable

22

Homelite E45929

Hose Clamp

Note: All Models

$

$

Currently unavailable

23

Homelite E45866

By-Pass Hose 5" x 1/4"

Note: All Models

$

$

Currently unavailable

24

Homelite E45870

By-Pass Hose Spring

Note: All Models

$

$

Currently unavailable

Homelite E32097

O-Ring Kit (Inclds 6,7,9,10,11,)

Note: All Models

$

$

Currently unavailable

Homelite E31047

Locking Nut - Optional

Note: All Models

$

$

Currently unavailable
