HPW 2000 R (UT-01804) - Homelite Pressure Washer Exploded View Parts Diagram

Pressure Washer

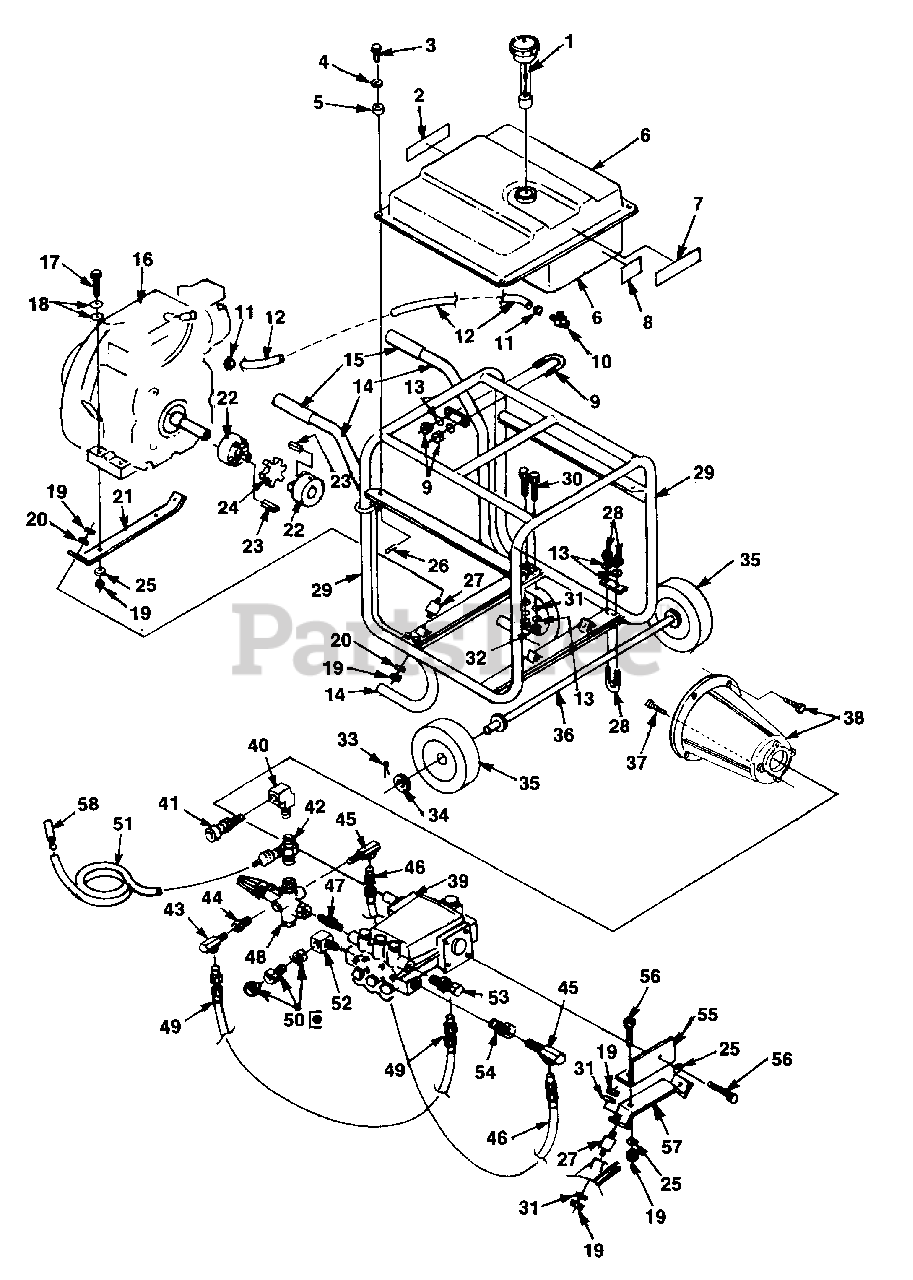

Exploded View Parts Diagram

  • Title

1

Homelite 49179

CAP

$

$

Not available

2

Homelite 01426

DECAL

$11.99

$

Usually ships in 3-7 days

0

3

Homelite 49329

PIN TBO

$

$

Not available

4

Homelite 84006

FLAT WASHER TBO

$

$

Not available

5

Homelite 49351

GROMMET-Isolator

$

$

Not available

6

Homelite 489311

FUEL TANK

$

$

Currently unavailable

7

Homelite 49974

OPER DECAL

$14.99

$

Usually ships in 3-7 days

0

8

Homelite 49598

DECAL, 172R24

$

$

Not available

9

Homelite 49458

NLA(NO LONGER AVAILABLE)

$

$

Not available

10

Homelite 49005

VALVE- Fuel

$

$

Not available

11

Homelite 49587

Clip - Hose

$

$

Not available

12

Homelite 4958601

$

$

Currently unavailable

13

Homelite 83009

WASHER, LOCK

$9.99

$

Usually ships in 3-7 days

0

14

Homelite 49450

Tubing, Handle

$255.99

$

Usually ships in 3-7 days

0

15

Homelite JA995715

Grip, Handle

$10.99

$

Usually ships in 3-7 days

0

16

Note: For engine replacement parts locate the engine brand name, model number, and type number and consult the appropriate dealer in your area)

$

$

Not available

17

Homelite 80087

SCREW - HEX CAP (5/16-18 x 1 1/2)

$

$

Not available

18

Homelite 84001

FLAT WASHER(HSD'S) TBO

$

$

Not available

19

Homelite 81162

NUT

$

$

Not available

20

Homelite 83081

Washer - Lock (int.)

$

$

Not available

21

Homelite 49265

SUPPORT-Engine
(Superseded to UP03535)

$35.99

$

Usually ships in 3-7 days

0

22

Homelite 49993

NLA(NO LONGER AVAILABLE)

$

$

Not available

23

Homelite 27752

KEY SQUARE 1/4 IN TBO

$

$

Not available

24

Homelite 43458

COUPLING SPIDER TBO

$

$

Not available

25

Homelite 83030

3WASHER(HPW1200B) TBO

$

$

Not available

26

Homelite 49412

PIN TBO

$

$

Not available

27

Homelite 49367

VIBRATION ISOLATOR
(Superseded to UP03483)

$

$

Not available

28

Homelite 49453

Superseded by UP05656
(Superseded to UP05656)

$

$

Not available

29

Homelite A499361

$

$

Currently unavailable

30

Homelite JA400120

SCREW, CAP HEX HD
(Superseded to 80295)

$5.99

$

Usually ships in 3-7 days

0

31

Homelite JA453023

USE 84004
(Superseded to 678013001)

$2.49

$

Usually ships in 3-7 days

0

32

Homelite 81053

NUT-(1/4-20)

$

$

Not available

33

Homelite 86303

COTTER PIN (RDP3) TBO

$

$

Not available

34

Homelite 841141

WASHER, FLAT (RDP3) TBO

$

$

Not available

35

Homelite 49454

WHEEL

$

$

Not available

36

Homelite A49452

Axle

$

$

Currently unavailable

37

Homelite 0151914

$

$

Currently unavailable

38

Homelite 49973

NLA(NO LONGER AVAILABLE)

$

$

Not available

39

Homelite 0152017

$

$

Currently unavailable

40

Homelite 49969

3/8 NPT STREET ELBOW

$71.99

$

Usually ships in 3-7 days

0

41

Homelite 49914

FEMALE SOCKE TBO

$

$

Not available

42

Homelite 49929

NLA(NO LONGER AVAILABLE)

$

$

Not available

43

Homelite 01422

NO LONGER AVAILABLE

$

$

Not available

44

Homelite 01423

BUSHING

$8.99

$

Usually ships in 3-7 days

0

45

Homelite 01415

STREET ELBOW

$

$

Not available

46

Homelite 01402

NLA(NO LONGER AVAILABLE)

$

$

Not available

47

Homelite 01404

01404

$

$

Not available

48

Homelite 01401

UNLOADERS (HPW2000B TBO

$

$

Not available

49

Homelite 01424

HOSE

$108.99

$

Usually ships in 3-7 days

0

50

Homelite A02244

SPRING & ADAPTOR

$

$

Not available

Homelite 49932

Nozzle - Hi Pressure 0 degrees

$30.99

$

Usually ships in 3-7 days

0

Homelite 49934

Nozzle - Hi Pressure 25 degrees

$

$

Not available

Homelite 49935

Nozzle - Hi Pressure 40 degrees

$30.99

$

Usually ships in 3-7 days

0

Homelite 02243

Screen & Gasket

$

$

Not available

51

Homelite 01584

NLA(NO LONGER AVAILABLE)

$

$

Not available

52

Homelite 49970

STREET ELBOW

$100.99

$

Usually ships in 3-7 days

0

53

Homelite 01425

NO LONGER AVAILABLE

$

$

Not available

54

Homelite 01403

NLA(NO LONGER AVAILABLE)

$

$

Not available

55

Homelite 49938

USE 49938 1

$

$

Not available

56

Homelite 80083

BOLT- (5/16-18 x 3/4")

$

$

Not available

57

Homelite 48944

SUPPORT-Generator

$

$

Not available

58

Homelite 01794

STRAINER

$26.99

$

Usually ships in 3-7 days

0
