HPW 3050 H (UT-01814) - Homelite Pressure Washer Chemical Injector Parts Diagram

Pressure Washer

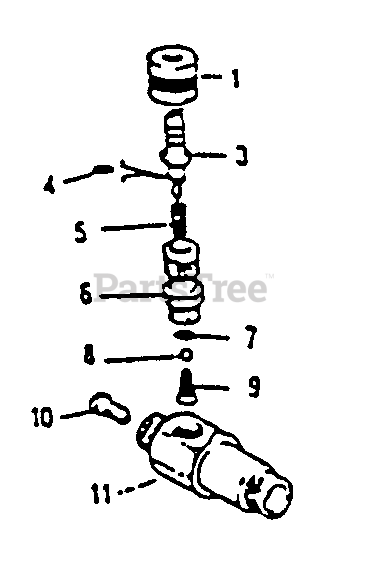

Chemical Injector Parts Diagram

  • Title

Homelite E33481

Adjustable Barb Assembly

Note: (Includes 1, 3, 5, 6)

$

$

Currently unavailable

1

Adjustment Collar

Note: Brass. All Models.

$

$

Not available

3

Hose Barb

Note: Brass. All Models.

$

$

Not available

4

Homelite E33503

O-Ring

Note: Buna N. All Models.

$

$

Currently unavailable

5

Homelite E33500

Spring

Note: 304SS. All Models.

$

$

Currently unavailable

6

Homelite E33506

Ball Seat Retainer

Note: Brass. All Models.

$

$

Currently unavailable

7

Homelite E33504

O-Ring

Note: All Models.

$

$

Currently unavailable

8

Homelite E33502

Ball

Note: 316SS. All Models.

$

$

Currently unavailable

9

Homelite E33501

Spring

Note: 316SS. All Models.

$

$

Currently unavailable

10

Homelite E32373

Injector Orifice (2.1mm)

Note: Opt. 304SS. Used on model 7123.

$

$

Currently unavailable

11

Body-Unloader Mount

Note: Brass. Used on model 7124.

$

$

Not available

Homelite E33480

Fixed Barb Assembly

Note: Optional 1

$

$

Currently unavailable
