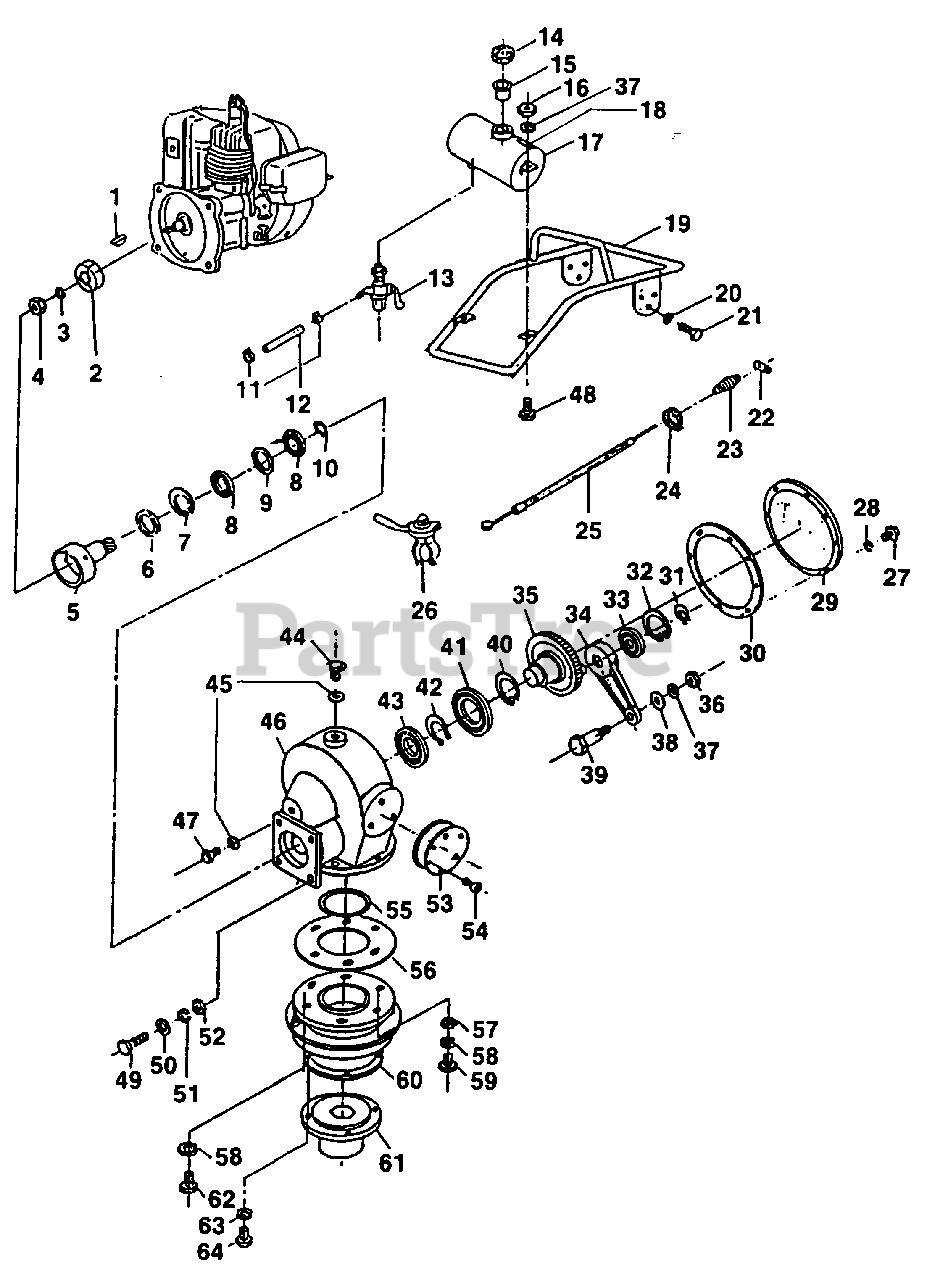

HR 80 (UT-06041) - Homelite Rammers Engine & Gearbox Parts Diagram

Rammers

Engine & Gearbox Parts Diagram

  • Title

1

Homelite 4990232

KEY

$

$

Currently unavailable

2

Homelite 4990231

CLUTCH- Centrifugal

$

$

Currently unavailable

3

Homelite 4990305

WASHER- Spring m12

$

$

Currently unavailable

4

Homelite 4990233

NUT- Hex m12 x 1.25

$

$

Currently unavailable

5

Homelite 4990214

DRUM- Piston Gear

$

$

Currently unavailable

6

Homelite 4990215

SEAL- Oil

$

$

Currently unavailable

7

Homelite 4990218

RING- Snap (H-52)

$

$

Currently unavailable

8

Homelite 4990216

BEARING

$

$

Currently unavailable

9

Homelite 4990311

SPACER

$

$

Currently unavailable

10

Homelite 4990219

RING- Snap (S-25)

$

$

Not available

11

Homelite 4990274

CLAMP- Tube

$

$

Currently unavailable

12

Homelite 4990275

HOSE- Rubber

$

$

Currently unavailable

13

Homelite 4990273

VALVE- Fuel

$

$

Not available

14

Homelite 4990270

CAP- Fuel Tank

$

$

Currently unavailable

15

Homelite 4990271

FILTER- Fuel Tank

$

$

Currently unavailable

16

Homelite 4990418

NUT- Hex m8

$

$

Currently unavailable

17

Homelite 4990269

TANK- Fuel

$

$

Currently unavailable

18

Homelite 4990287

CAUTION DECAL

$

$

Currently unavailable

19

Homelite 4990302

HANDLE

$

$

Currently unavailable

20

Homelite 4990267

WASHER- Spring m10

$

$

Currently unavailable

21

Homelite 4990410

BOLT- Hex m10 x 20

$

$

Currently unavailable

22

Homelite 4990281

END- Screw

$

$

Currently unavailable

23

Homelite 4990280

SPRING- Return

$

$

Currently unavailable

24

Homelite 4990279

BAND- Wire

$

$

Currently unavailable

25

Homelite 4990278

WIRE- (Throttle)

$

$

Not available

26

Homelite 4990277

LEVER- Throttle

$

$

Currently unavailable

27

Homelite 4990320

BOLT- Hex m6 x 15

$

$

Currently unavailable

28

Homelite 4990321

WASHER- Spring

$

$

Currently unavailable

29

Homelite 4990318

COVER- Crankcase

$

$

Currently unavailable

30

Homelite 4990319

GASKET

$

$

Currently unavailable

31

Homelite 4990331

RING-Snap (S-20)

$

$

Not available

32

Homelite 4990330

RING- Snap (H-47)

$

$

Currently unavailable

33

Homelite 4990329

BEARING

$

$

Currently unavailable

34

Homelite 4990328

ROD- Connecting

$

$

Currently unavailable

35

Homelite 4990323

GEAR- Crank

$

$

Currently unavailable

36

Homelite 4990257

NUT- Nylon m8

$

$

Currently unavailable

37

Homelite 4990417

WASHER- Spring m8

$

$

Currently unavailable

38

Homelite 4990416

WASHER- Plate

$1.49

$

Usually ships in 3-7 days

0

39

Homelite 4990256

PIN- Roll

$

$

Currently unavailable

40

Homelite 4990324

RING- Snap

$

$

Currently unavailable

41

Homelite 4990325

BEARING

$

$

Currently unavailable

42

Homelite 4990326

RING- Snap

$

$

Currently unavailable

43

Homelite 4990327

BEARING

$

$

Currently unavailable

44

Homelite 4990314

BOLT- Oil Flange m14

$

$

Currently unavailable

45

Homelite 4990317

WASHER- Plate

$

$

Currently unavailable

46

Homelite 4990313

CRANKCASE

$

$

Currently unavailable

47

Homelite 4990316

BOLT- Oil Flange m6 x 15

$

$

Currently unavailable

48

Homelite 4990446

BOLT- Hex m8 x 20

$

$

Currently unavailable

49

Homelite 4990206

BOLT- Hex m10 x 40

$

$

Currently unavailable

50

Homelite 4990307

WASHER- Plate m10

$

$

Currently unavailable

51

Homelite 4990308

WASHER- Spring m10

$

$

Currently unavailable

52

Homelite 4990309

NUT- Nylon m10

$

$

Currently unavailable

53

Homelite 4990203

ABSORBER- Shock

$138.99

$

Usually ships in 3-7 days

0

54

Homelite 4990204

BOLT- Hex

$

$

Currently unavailable

55

Homelite 4990335

O-RING

$

$

Not available

56

Homelite 4990334

GASKET

$

$

Currently unavailable

57

Homelite 4990339

NUT- Nylon m8

$

$

Currently unavailable

58

Homelite 4990337

WASHER- Spring m8

$

$

Currently unavailable

59

Homelite 4990338

BOLT- hex

$

$

Currently unavailable

60

Homelite 4990333

GUIDE- Cylinder

$

$

Currently unavailable

61

Homelite 4990340

GUIDE- Cylinder

$

$

Currently unavailable

62

Homelite 4990336

BOLT- Hex m8 x 25

$

$

Currently unavailable

63

Homelite 4990342

WASHER- Spring

$

$

Currently unavailable

64

Homelite 4990341

BOLT- Hex

$

$

Currently unavailable
