HR 830 (UT-32023) - Homelite Rear-Engine Riding Mower Engine and Drive Parts Diagram

Rear-Engine Riding Mower

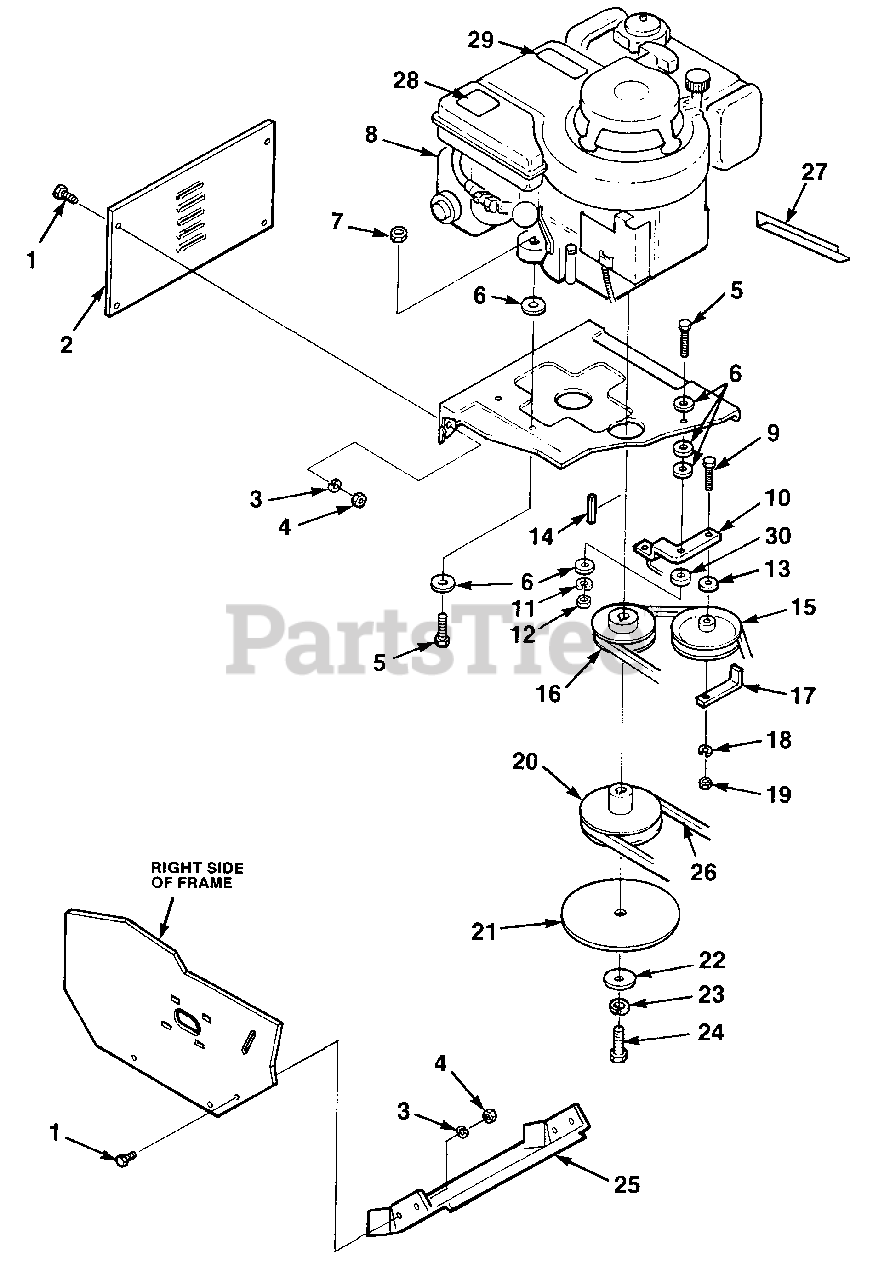

Engine and Drive Parts Diagram

  • Title

1

Homelite JA400106

BOLT- Hex centerlock 1/4-20 x.625

$

$

Currently unavailable

2

Homelite JA993823

PANEL- Rear

$

$

Currently unavailable

3

Homelite JA446130

WASHER- Lock 1/4"

$

$

Not available

4

Homelite JA443102

NUT- Hex 1/4-20
(Superseded to JA993730)

$

$

Not available

5

Homelite JA400192

SCREW- Hex centerlock 5/16-18 x 1 1/2"

$

$

Currently unavailable

6

Homelite JA350929

WASHER- Engine

$

$

Not available

7

Homelite JA444718

NUT- Hex centerlock 5/16-18

$

$

Not available

8

Homelite JA993577

ENGINE- 8 H.P.

Note: (HR830E)

$

$

Currently unavailable

Homelite JA993576

ENGINE- 8 H.P.

Note: (HR830)

$

$

Currently unavailable

9

Homelite JA400272

SCREW- Hex centerlock 3/8-16 x 2 1/4"

$

$

Not available

10

Homelite JA994032

ARM- Idler
(Superseded to JA994552)

$

$

Currently unavailable

11

Homelite JA446136

WASHER- Lock 5/16"
(Superseded to UP03791)

$

$

Not available

12

Homelite JA444718

NUT- Hex centerlock 5/16-18

$

$

Not available

13

Homelite JA453011

WASHER- Plain 3/8"
(Superseded to PS84010)

$

$

Not available

14

Homelite JA992867

KEY

$

$

Not available

15

Homelite JA992817

PULLEY- Idler

$

$

Currently unavailable

16

Homelite JA992788

PULLEY- Traction

$

$

Currently unavailable

17

Homelite JA311881

GUIDE- Belt

$

$

Currently unavailable

18

Homelite JA446142

WASHER- Lock 1/4"

$

$

Not available

19

Homelite JA444762

NUT- Hex centerlock 1/4-20 x 1"

$

$

Currently unavailable

20

Homelite JA992787

PULLEY- Deck

$

$

Currently unavailable

21

Homelite JA993729

DISC- Belt guide

$

$

Currently unavailable

22

Homelite JA990128

RETAINER

$

$

Currently unavailable

23

Homelite JA446148

WASHER- Lock 7/16"

$

$

Not available

24

Homelite JA400378

BOLT- Hex centerlock

$

$

Currently unavailable

25

Homelite JA993933

PAN- Bottom

$

$

Currently unavailable

26

Homelite JA992638

BELT- Traction

$

$

Currently unavailable

27

Homelite JA357995

TROUGH

$

$

Currently unavailable

28

Homelite JA992354

DECAL- Warning

$

$

Not available

29

Homelite 00305

DECAL- Warning

$

$

Currently unavailable

30

Homelite JA992989

SPACER

$

$

Currently unavailable
