HR 930 E (UT-32026) - Homelite Rear-Engine Riding Mower Clutch and Brake Parts Diagram

Rear-Engine Riding Mower

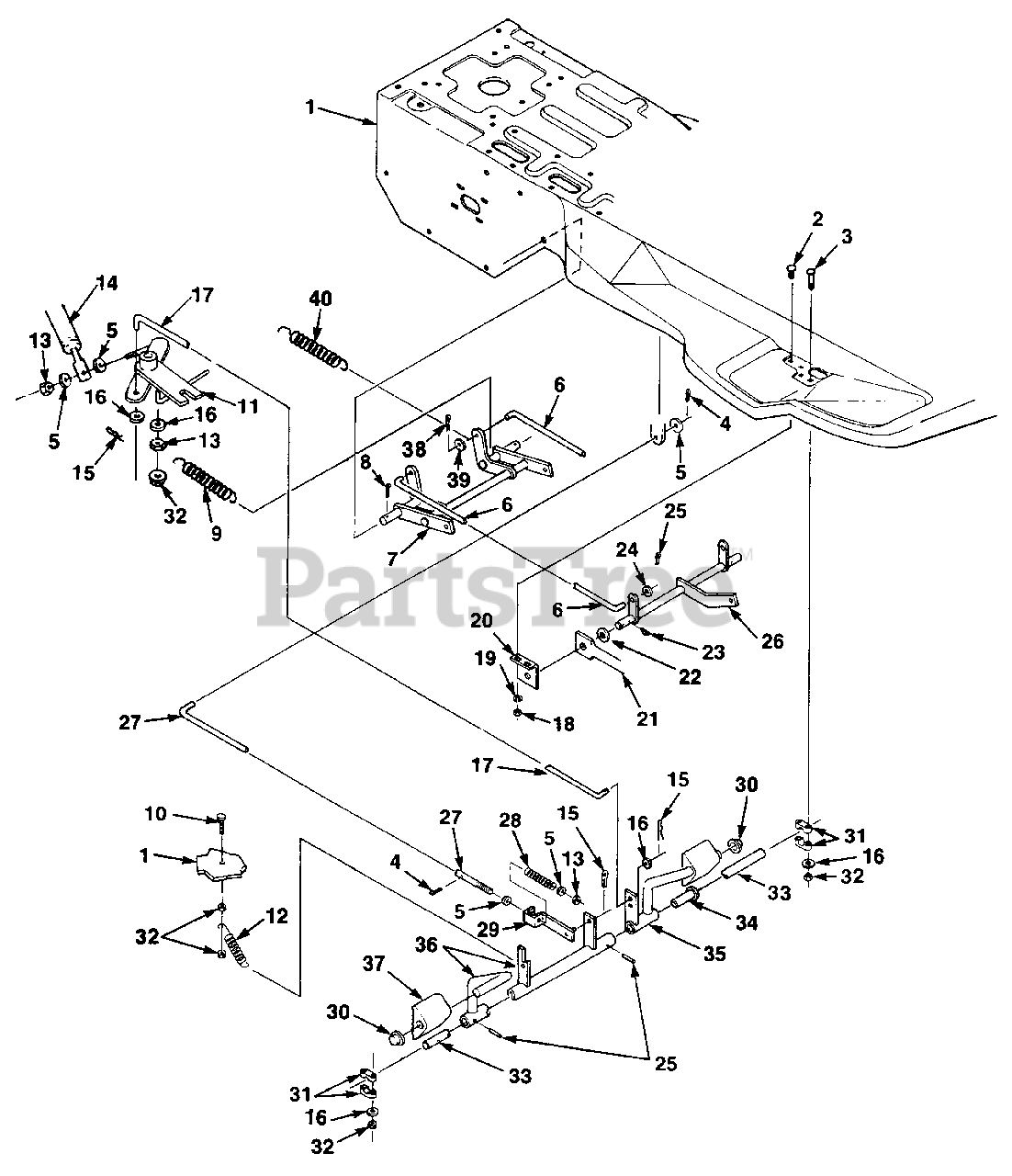

Clutch and Brake Parts Diagram

  • Title

1

Homelite JA993953

FRAME

$

$

Currently unavailable

2

Homelite JA441664

BOLT- Carr. 1/4-20 x 5/8

$

$

Currently unavailable

3

Homelite JA440050

BOLT- 1/4-20 x 1 1/2

$

$

Currently unavailable

4

Homelite JA460016

PIN- Cotter

$

$

Currently unavailable

5

Homelite JA453009

WASHER- 5/16 Plain
(Superseded to UP07173)

$

$

Not available

6

Homelite JA993945

ROD- Deck lift

$

$

Currently unavailable

7

Homelite JA993112

HANGER- Rear

$

$

Currently unavailable

8

Homelite JA460306

PIN- Cotter

$

$

Not available

9

Homelite JA376088

SPRING- Extension

$

$

Not available

10

Homelite JA400106

SCREW- 1/4-20 x .625

$

$

Currently unavailable

11

Homelite JA993904

ARM- Pivot

$

$

Currently unavailable

12

Homelite JA990985

SPRING- Extension

$

$

Currently unavailable

13

Homelite JA444718

NUT- Hex 5/16-18

$

$

Not available

14

Homelite JA991444

DAMPER

$

$

Currently unavailable

15

Homelite JA460008

PIN- Cotter

$

$

Currently unavailable

16

Homelite JA452004

WASHER- 1/4"
(Superseded to 84026)

$

$

Not available

17

Homelite JA991573

ROD- Clutch

$

$

Currently unavailable

18

Homelite JA443102

NUT- Hex 1/4-20
(Superseded to JA993730)

$

$

Not available

19

Homelite JA446130

WASHER- Lock 1/4

$

$

Not available

20

Homelite JA375815

BRACKET

$

$

Currently unavailable

21

Homelite JA990507

SUPPORT- Front axle

$

$

Currently unavailable

22

Homelite JA453017

WASHER- Flat 1/2

$

$

Not available

23

Homelite JA460212

PIN- Cotter

$

$

Currently unavailable

24

Homelite JA452008

WASHER- Flat 3/8

$1.99

$

Usually ships in 3-7 days

0

25

Homelite JA461346

PIN- Cotter

$

$

Not available

26

Homelite JA993948

HANGER- Front

$

$

Currently unavailable

27

Homelite JA993943

ROD- Brake

$

$

Currently unavailable

28

Homelite JA376102

SPRING- Brake

$

$

Not available

29

Homelite JA181969

BRACKET- Brake spring

$

$

Currently unavailable

30

Homelite JA375810

NUT- Push 5/8

$

$

Not available

31

Homelite JA339461

BEARING

$

$

Currently unavailable

32

Homelite JA444708

NUT- Centerlock hex 1/4-20

$

$

Currently unavailable

33

Homelite JA990847

PEDAL SHAFT

$

$

Currently unavailable

34

Homelite JA990550

BUSHING

$

$

Currently unavailable

35

Homelite JA993946

PEDAL- Clutch

$

$

Currently unavailable

36

Homelite JA993944

PEDAL- Brake

$

$

Currently unavailable

37

Homelite JA345020

PEDAL- Rubber

$

$

Currently unavailable

38

Homelite JA960506

PIN- Cotter

$

$

Currently unavailable

39

Homelite JA952008

WASHER- Plain

$

$

Currently unavailable

40

Homelite JA990983

SPRING

$

$

Currently unavailable
