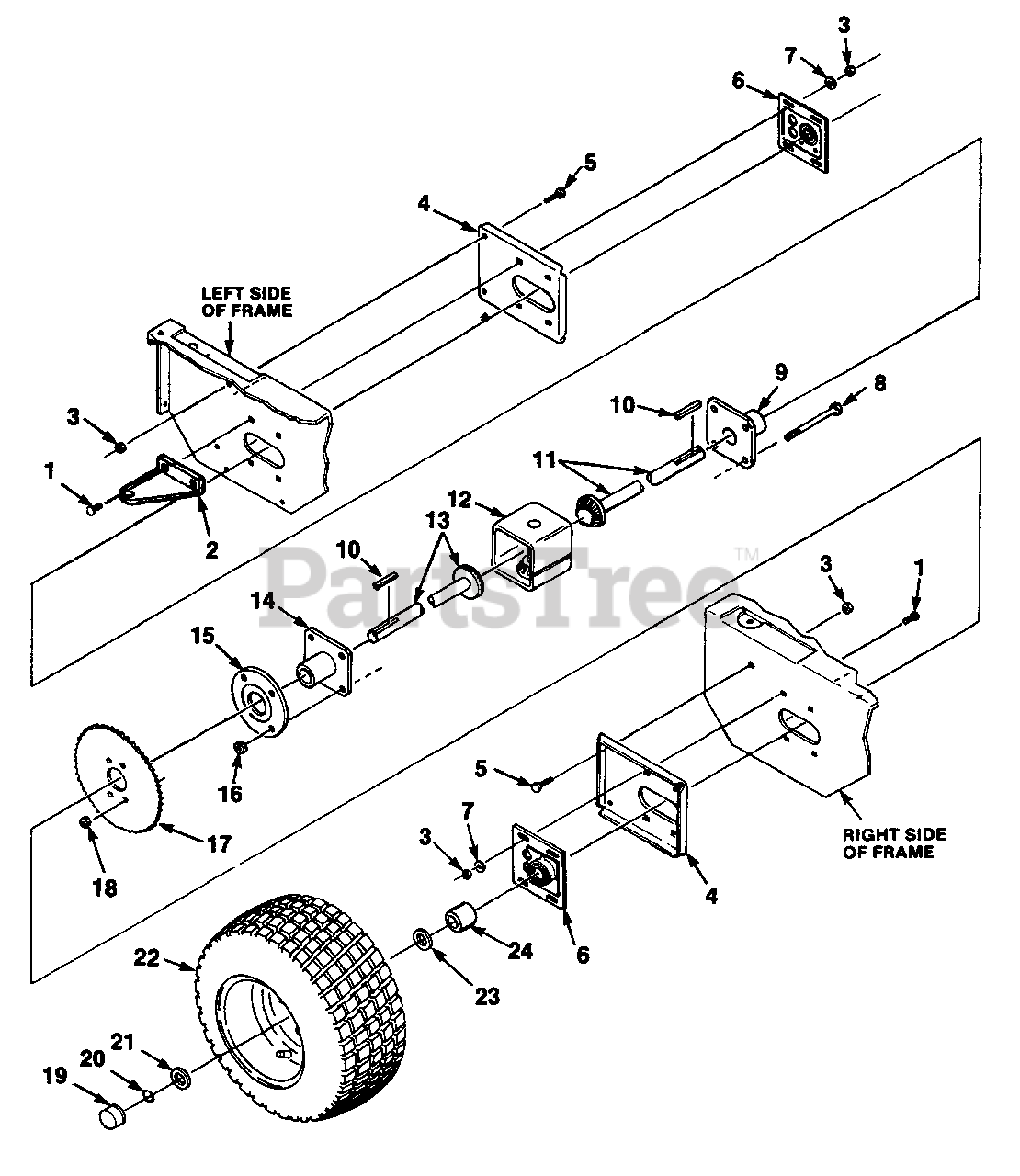

HR 930 E (UT-32026) - Homelite Rear-Engine Riding Mower Differential Parts Diagram

Rear-Engine Riding Mower

Differential Parts Diagram

  • Title

1

Homelite JA441606

BOLT- 1/4-20 x 3/4

$

$

Not available

2

Homelite JA993935

BRACKET

$

$

Currently unavailable

3

Homelite JA444708

NUT- 1/4-20 lock

$

$

Currently unavailable

4

Homelite JA993952

SUPPORT- Frame

$

$

Currently unavailable

5

Homelite JA400106

SCREW 1/4-20 x 5/8

$

$

Currently unavailable

6

Homelite JA992700

RETAINER & BEARING

$

$

Currently unavailable

7

Homelite JA452004

WASHER 1/4
(Superseded to 84026)

$

$

Not available

8

Homelite JA990241

BOLT- Hex 5/16-18 x 4

$

$

Not available

9

Homelite JA990235

CAP & BEARING (L.H.)

$

$

Currently unavailable

10

Homelite JA310611

KEY 3/16 x 3/16 x 2 1/2

Note: (not part of differential)

$

$

Currently unavailable

11

Homelite JA993936

AXLE- L.H. w/Gear

$

$

Currently unavailable

12

Homelite JA990231

HOUSING & GEARS

$

$

Currently unavailable

13

Homelite JA993937

AXLE- R.H. w/Gear

$

$

Currently unavailable

14

Homelite JA990234

CAP & BEARING (R.H.)

$

$

Currently unavailable

15

Homelite JA990233

SPACER- Differential

$

$

Currently unavailable

16

Homelite JA991305

NUT- Hex

$4.49

$

Usually ships in 3-7 days

0

17

Homelite JA990992

SPROCKET- 48 tooth

$

$

Currently unavailable

18

Homelite JA444762

NUT- Centerlock 3/8-16

$

$

Currently unavailable

19

Homelite JA376090

CAP-Hub

$

$

Not available

20

Homelite JA458038

RING- Retaining

$

$

Currently unavailable

21

Homelite JA313820

SPACER- Axle

$

$

Currently unavailable

22

Homelite JA990825

TIRE & HUB (rear)

$

$

Currently unavailable

23

Homelite JA455055

WASHER- Flat

$

$

Not available

24

Homelite JA993929

SPACER

$

$

Currently unavailable
