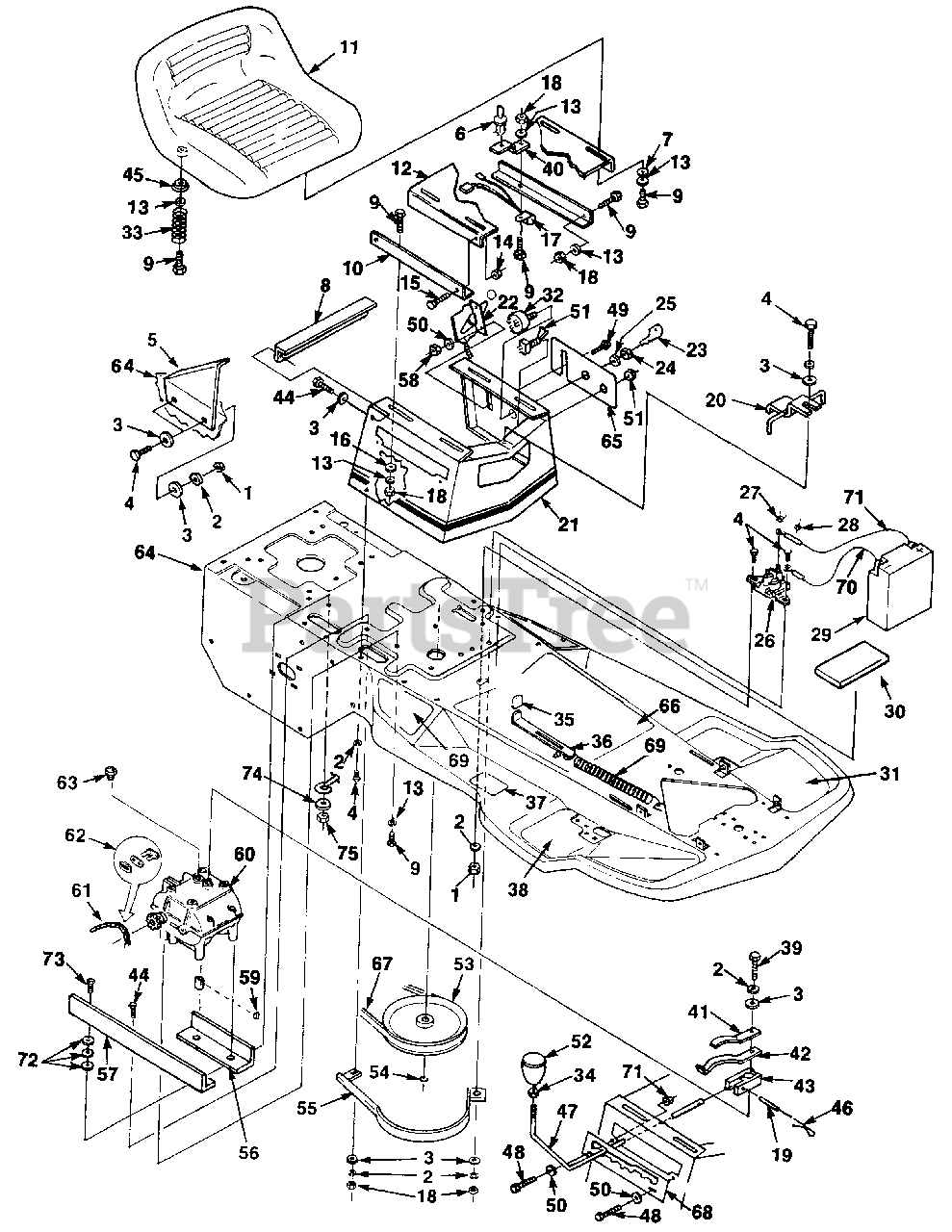

HR 930 E (UT-32026) - Homelite Rear-Engine Riding Mower Frame Parts Diagram

Rear-Engine Riding Mower

Frame Parts Diagram

  • Title

1

Homelite JA443102

NUT-Hex 1/4-20
(Superseded to JA993730)

$

$

Not available

2

Homelite JA446128

WASHER-Lock 1/4
(Superseded to UP03409)

$4.99

$

Usually ships in 3-7 days

0

3

Homelite JA452004

WASHER- Flat 1/4
(Superseded to 84026)

$

$

Not available

4

Homelite JA400106

SCREW-1/4-20 x 5/8

$

$

Currently unavailable

5

Homelite JA993932

BRACKET- Chain guard

$

$

Currently unavailable

6

Homelite JA991513

SWITCH- Seat

$

$

Currently unavailable

7

Homelite JA452006

WASHER-Flat

$

$

Currently unavailable

8

Homelite JA993928

BRACKET- Reinforcement

$

$

Currently unavailable

9

Homelite JA400184

SCREW- 5/16-18 x .750
(Superseded to UP03381)

$

$

Not available

10

Homelite JA993924

SEAT RAIL

$

$

Currently unavailable

11

Homelite JA993705

SEAT

$

$

Currently unavailable

12

Homelite JA993926

BRACKET- Seat

$

$

Currently unavailable

13

Homelite JA446134

WASHER- Lock 5/16
(Superseded to 653671)

$2.99

$

Usually ships in 3-7 days

0

14

Homelite JA444718

NUT- Centerlock hex 5/16-18

$

$

Not available

15

Homelite JA375431

BOLT- Shoulder 5/16-18 hex

$

$

Not available

16

Homelite JA453009

WASHER- Flat 5/16
(Superseded to UP07173)

$

$

Not available

17

Homelite JA991077

NEUTRAL START (Safety Mod)

$

$

Currently unavailable

18

Homelite JA443106

NUT- 5/16-18 hex
(Superseded to 81018)

$

$

Not available

19

Homelite JA461383

PIN- Spring 3/16 x 1

$

$

Not available

20

Homelite JA993938

BRACKET- Battery

$

$

Currently unavailable

21

Homelite JA992479

SUPPORT- Seat

$

$

Currently unavailable

22

Homelite JA992098

THROTTLE CONTROL & CABLE

$

$

Currently unavailable

23

Homelite JA343060

KEY- Ignition

$

$

Not available

24

Homelite JA549343

NUT- Ignition switch 5/8-32

$

$

Currently unavailable

25

Homelite JA447224

WASHER- Ignition switch 5/8

$

$

Not available

26

Homelite JA995590

SOLENOID- Switch

$

$

Currently unavailable

27

Homelite JA443802

NUT (Lead 1/4-20)

$

$

Currently unavailable

28

Homelite JA444306

NUT (Hex 8-32)

$

$

Currently unavailable

29

Homelite JA991857

BATTERY

$

$

Currently unavailable

30

Homelite JA991507

BATTERY PAD

$

$

Currently unavailable

31

Homelite JA339513

FOOT REST (left hand)

$

$

Currently unavailable

32

Homelite JA130412

IGNITION SWITCH

Note: (incl. 23,24, and 25)

$

$

Currently unavailable

33

Homelite JA359266

SPRING- Torsion

$

$

Not available

34

Homelite JA443812

NUT- Hex jam 3/8-24

$

$

Currently unavailable

35

Homelite JA375987

KNOB- Latch

$

$

Currently unavailable

36

Homelite JA375859

LATCHING- Parking brake

$

$

Currently unavailable

37

Homelite JA339568

FOOTPAD

$

$

Currently unavailable

38

Homelite JA339514

FOOT REST (right hand)

$

$

Currently unavailable

39

Homelite JA400148

SCREW- Hex hd 1/4-28 x 7/8

$2.49

$

Usually ships in 3-7 days

0

40

Homelite JA994268

BRACKET- Seat switch

$

$

Currently unavailable

41

Homelite JA991839

SPRING LEAF

$

$

Currently unavailable

42

Homelite JA991843

SPRING LEAF

$

$

Currently unavailable

43

Homelite JA991848

BRACKET- Pivot

$

$

Currently unavailable

44

Homelite JA400108

SCREW- Hex cap 1/4-20 x 3/4
(Superseded to 80052)

$

$

Not available

45

Homelite JA992007

RETAINER- Spring

$4.49

$

Usually ships in 3-7 days

0

46

Homelite JA460212

PIN- Cotter

$

$

Currently unavailable

47

Homelite JA991847

GEARSHIFT LEVER

$

$

Currently unavailable

48

Homelite JA403744

SCREW 10-24 x 1/2

$

$

Currently unavailable

49

Homelite JA403910

SCREW 10-24 x 1/2

$2.49

$

Usually ships in 3-7 days

0

50

Homelite JA452002

WASHER- Flat 1/4 #10

$

$

Not available

51

Homelite JA990135

SWITCH- P.T.0.
(Superseded to UP06659)

$

$

Not available

52

Homelite JA991845

KNOB- Shift lever

$

$

Currently unavailable

53

Homelite JA392593

TRANSMISSION PULLEY

$

$

Currently unavailable

54

Homelite JA458009

RING-Snap

$

$

Not available

55

Homelite JA993951

BELT GUIDE- Transmission

$

$

Currently unavailable

56

Homelite JA993934

ANGLE- Short

$

$

Currently unavailable

57

Homelite JA993954

ANGLE- Long

$

$

Currently unavailable

58

Homelite JA444782

NUT-10-24

$

$

Not available

59

Homelite JA463017

KEY- Transmission 3/16 x 3/4

$

$

Currently unavailable

60

Homelite JA990222

TRANSMISSION- Peerless Tecumseh

$1000.99

$

Usually ships in 3-7 days

0

61

Homelite JA990739

CHAIN - Drive #40

$

$

Currently unavailable

62

Homelite JA470503

CONNECTING LINK- Chain

$

$

Currently unavailable

63

Homelite JA990981

SWITCH- Neutral safety

$

$

Currently unavailable

64

Homelite JA993953

FRAME

$

$

Currently unavailable

65

Homelite JA992104

DECAL- Ignition Switch

$

$

Currently unavailable

66

Homelite JA992238

DECAL- Instruction

$

$

Currently unavailable

67

Homelite JA990738

BELT- Transmission

$

$

Not available

68

Homelite JA992013

PLATE- Shift

$

$

Currently unavailable

69

Homelite JA991442

SPRING- Extension

$

$

Not available

70

Homelite JA992201

CABLE- Ground

$

$

Not available

71

Homelite JA992199

CABLE- Battery

$

$

Currently unavailable

72

Homelite JA993025

WASHER

$

$

Currently unavailable

73

Homelite JA400114

SCREW
(Superseded to UP05933)

$

$

Not available

74

Homelite JA452008

WASHER- 3/8 Flat

$1.99

$

Usually ships in 3-7 days

0

75

Homelite JA444762

NUT- Hex Centerlock 3/8-16

$

$

Currently unavailable
