HR17 EPA EPA (MAER) - Honda 17" Walk-Behind Mower, Made in USA (SN: MAER-6000001 - MAER-9999999) HANDLEBAR Parts Diagram

17" Walk-Behind Mower, Made in USA

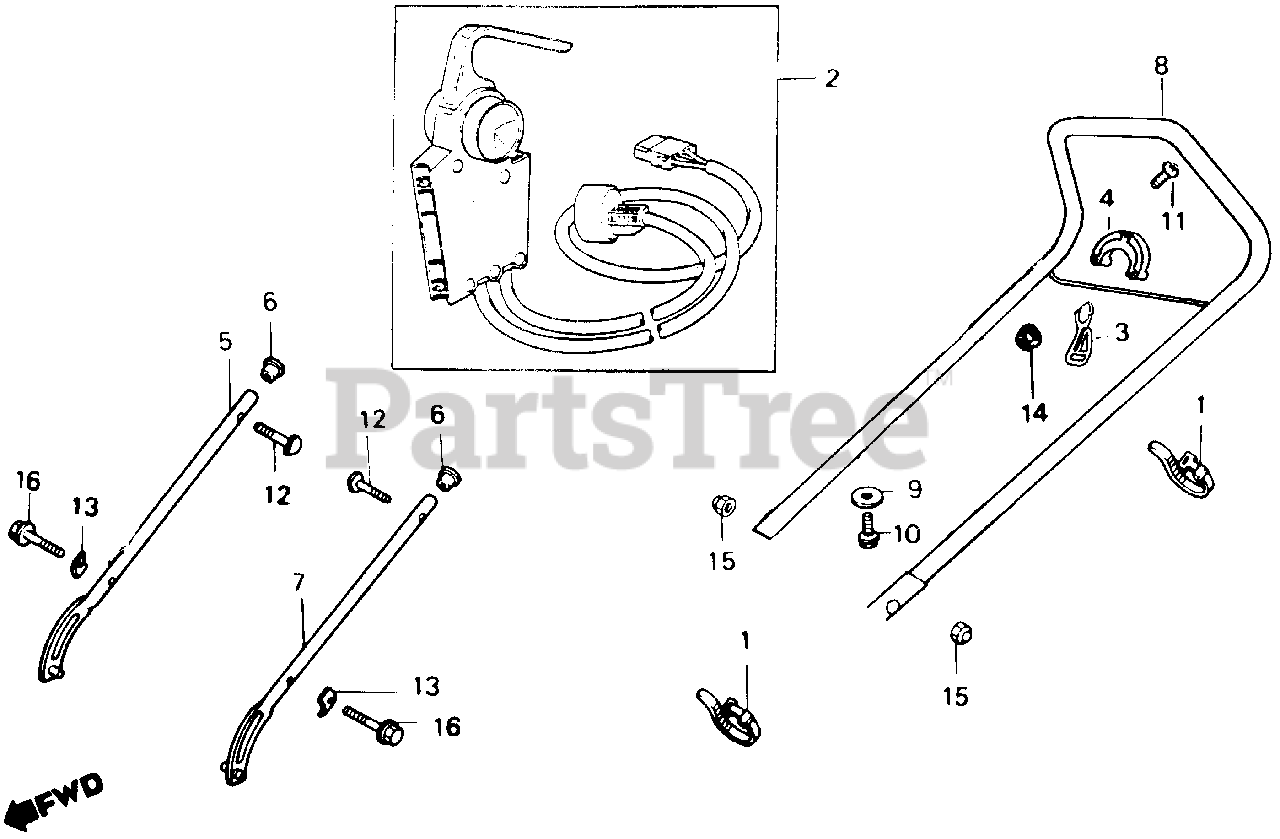

HANDLEBAR Parts Diagram

  • Title

1

Honda 32901-VB5-800

TIE, CABLE

$2.99

$

In Stock, only 2 left!

0

2

Honda 35450-VD4-G01

SWITCH ASSY., MOTOR (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 38611-VD3-H40

RELIEF, STRAIN

$6.49

$

Usually ships in 3-6 days

0

4

Honda 38615-VD4-G00

HOLDER, STRAIN RELIEF

$

$

Not available

5

Honda 53110-VD4-G00

PIPE, R. HANDLE (LOWER)

$46.99

$

Usually ships in 3-6 days

0

6

Honda 53115-VA9-000

CAP, HANDLE (LOWER)

$3.49

$

Usually ships in 3-6 days

0

7

Honda 53120-VD4-G00

SEE PART DETAILS - PRI; PIPE, L. HANDLE (LOWER)

$

$

Currently unavailable

8

Honda 53150-VD4-G00ZA

PIPE, HANDLE (UPPER) *NH105* (MAT BLACK) (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 53156-VD4-G01

INSULATOR, HANDLE

$6.49

$

Usually ships in 3-6 days

0

10

Honda 90101-VD4-G00

SCREW

$0.99

$

Usually ships in 3-6 days

0

11

Honda 90102-VD4-G00

SCREW, PAN (4X7)

$

$

Not available

12

Honda 90109-963-000

BOLT, HANDLE HOLDER (NOT AVAILABLE)

$

$

Not available

13

Honda 90501-898-000

WASHER, FRAME JOINT

$2.99

$

In Stock, only 2 left!

0

14

Honda 94001-04070-0S

NUT, HEX. (4MM)

$1.49

$

In Stock, only 2 left!

0

15

Honda 94021-08000-0S

NUT, CAP (8MM)

$1.99

$

In Stock, Qty 7

0

16

Honda 95801-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40)

$1.99

$

Usually ships in 3-6 days

0
