HR17 PDA (HR17) - Honda 17" Walk-Behind Mower, Made in Japan (SN: HR17-1000006 - HR17-9999999) HR17 CARBURETOR Parts Diagram

17" Walk-Behind Mower, Made in Japan

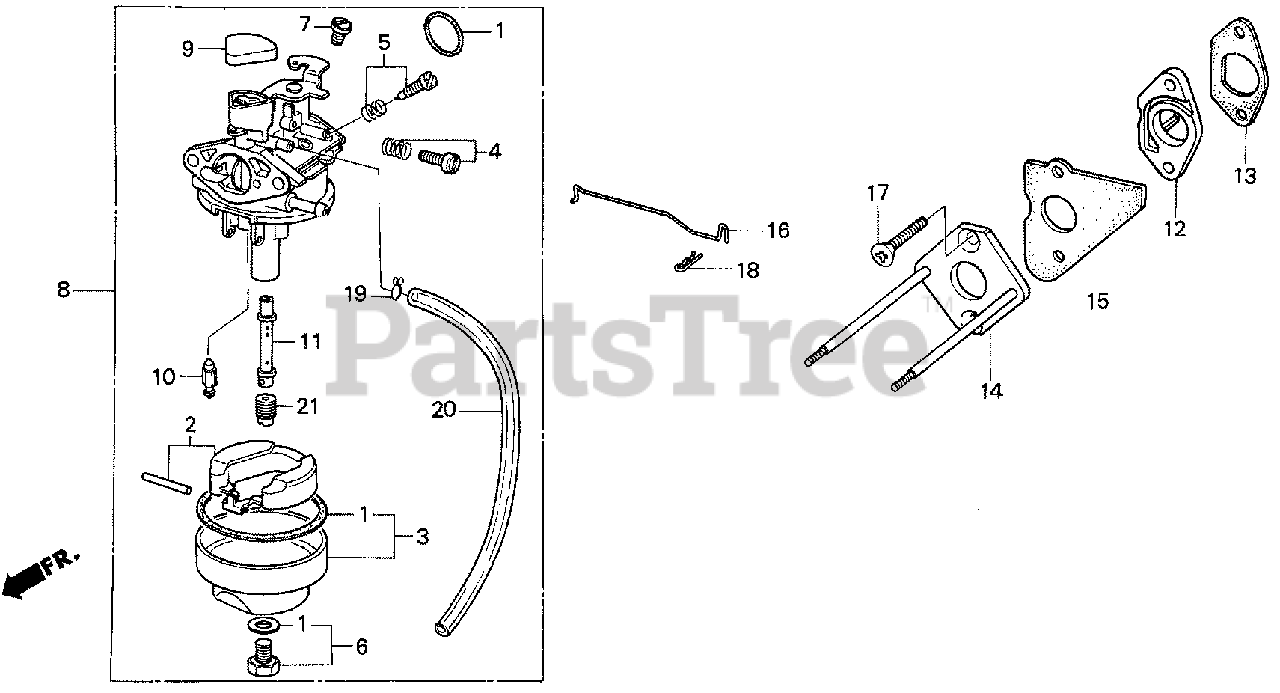

HR17 CARBURETOR Parts Diagram

  • Title

1

Honda 16010-892-505

SEE PART DETAILS - PRI; GASKET SET

$29.99

$

In Stock, only 2 left!

0

1

Honda 16010-896-015

SEE PART DETAILS - SUP; GASKET SET
(Superseded to 16010-892-505)

$29.99

$

In Stock, only 2 left!

0

2

Honda 16013-883-005

FLOAT SET

$44.99

$

In Stock, only 2 left!

0

3

Honda 16015-896-702

CHAMBER SET, FLOAT

Note: Use from Engine SN BB07A B.

$29.99

$

Usually ships in 3-6 days

0

4

Honda 16016-YA1-801

SEE PART DETAILS - PRI; SCREW SET A

Note: Use from Engine SN BB07A B.

$21.99

$

Usually ships in 3-6 days

0

4

Honda 16016-883-005

SCREW SET A (NOT AVAILABLE)

Note: Use up to Engine SN BB07A A.

$

$

Currently unavailable

4

Honda 16016-896-005

SEE PART DETAILS - SUP; SCREW SET A
(Superseded to 16016-YA1-801)

Note: Use from Engine SN BB07A B.

$21.99

$

Usually ships in 3-6 days

0

5

Honda 16016-892-005

SCREW SET A

Note: Use up to Engine SN BB07A A.

$

$

Not available

5

Honda 16016-896-751

SCREW SET A

Note: Use from Engine SN BB07A B.

$

$

Currently unavailable

6

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

Note: Use from Engine SN BB07A B.

$15.99

$

In Stock, only 1 left!

0

6

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

Note: Use up to Engine SN BB07A A.

$15.99

$

In Stock, only 1 left!

0

6

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

Note: Use from Engine SN BB07A B.

$15.99

$

In Stock, only 1 left!

0

6

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

Note: Use up to Engine SN BB07A A.

$15.99

$

In Stock, only 1 left!

0

7

Honda 16071-881-003

SCREW, PLUG (NOT AVAILABLE)

Note: Use up to Engine SN BB07A A.

$

$

Currently unavailable

7

Honda 16071-892-005

SCREW, PLUG

Note: Use from Engine SN BB07A B.

$

$

Not available

8

Honda 16100-896-701

CARBURETOR ASSY. (NOT AVAILABLE)

Note: Use up to Engine SN 1050507.

$

$

Currently unavailable

8

Honda 16100-896-702

CARBURETOR ASSY. (NOT AVAILABLE)

Note: Use from Engine SN 1050508.

$

$

Currently unavailable

9

Honda 16148-896-701

CAP, DUST (CHOKE) (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 16155-883-005

VALVE, FLOAT

$30.99

$

In Stock, only 1 left!

0

11

Honda 16166-896-005

NOZZLE, MAIN

$

$

Currently unavailable

12

Honda 16211-896-000

INSULATOR, CARBURETOR
(Superseded to 16211-896-306)

$

$

Not available

12

Honda 16211-896-306

INSULATOR, CARBURETOR

$

$

Not available

13

Honda 16212-896-306

GASKET, INSULATOR

$

$

Not available

14

Honda 16225-896-700

PLATE, CARBURETOR JOINT (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 16226-896-700

GASKET, INSULATOR (NOT AVAILABLE)

$

$

Currently unavailable

16

Honda 16611-896-700

ROD, AUTOMATIC CHOKE

$

$

Currently unavailable

17

Honda 93600-05020-0H

SCREW, FLAT (3X6)

$0.99

$

Usually ships in 3-6 days

0

18

Honda 94251-04000

PIN, LOCK (4MM)

$0.99

$

Usually ships in 3-6 days

0

19

Honda 95002-02070

CLIP, TUBE (B7)

$2.99

$

In Stock, only 2 left!

0

20

Honda 95003-07008-60M

BULK HOSE, VINYL (4X7X8000) (4X7X210)

$40.99

$

Usually ships in 3-6 days

0

21

Honda 99101-124-0500

JET, MAIN (#50) Use from Engine SN BB07A B.

$14.99

$

Usually ships in 3-6 days

0

21

Honda 99101-124-0520

JET, MAIN (#52) Use from Engine SN BB07A B.

$14.99

$

Usually ships in 3-6 days

0

21

Honda 99101-124-0550

JET, MAIN (#55)

$13.99

$

In Stock, only 1 left!

0
