HR17 PDA (HR17) - Honda 17" Walk-Behind Mower, Made in Japan (SN: HR17-1000006 - HR17-9999999) HR17 FUEL TANK Parts Diagram

17" Walk-Behind Mower, Made in Japan

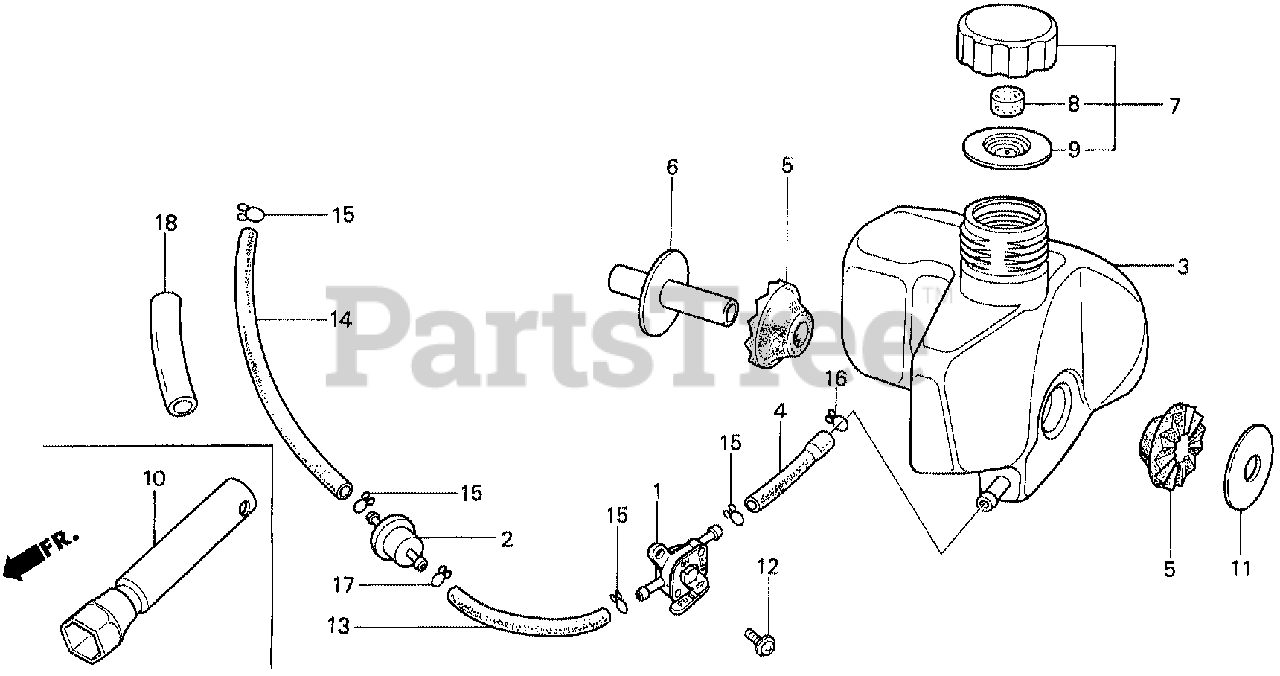

HR17 FUEL TANK Parts Diagram

  • Title

1

Honda 16950-888-015

PETCOCK ASSY.

$

$

Not available

2

Honda 16910-GB2-005

STRAINER, FUEL

Note: Use from Engine SN 1287223.

$16.99

$

In Stock, only 3 left!

0

2

Honda 16952-952-003

FILTER, FUEL

Note: Use up to Engine SN 1287222.

$15.99

$

Usually ships in 3-6 days

0

3

Honda 17510-896-700

TANK, FUEL

$

$

Not available

4

Honda 17512-896-700

TUBE, FUEL (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 17516-896-700

RUBBER B, TANK MOUNTING

$8.49

$

In Stock, only 2 left!

0

6

Honda 17518-896-700

COLLAR, TANK MOUNTING

$

$

Currently unavailable

7

Honda 17620-888-020

SEE PART DETAILS - PRI; CAP, FUEL TANK

$

$

Not available

8

Honda 17622-888-010

SPONGE, FUEL CAP BREATHER

$1.99

$

In Stock, Qty 5

0

9

Honda 17624-896-750

SEE PART DETAILS - PRI; GASKET, FUEL CAP

$

$

Not available

10

Honda 89216-888-000

WRENCH, SPARK PLUG (NOT AVAILABLE)

$

$

Not available

11

Honda 90455-896-700

WASHER, TANK MOUNTING

$3.99

$

In Stock, only 2 left!

0

12

Honda 93892-06012-08

SCREW-WASHER (6X12)

$1.99

$

Usually ships in 3-6 days

0

13

Honda 95001-45003-50M

SEE PART DETAILS - PRI; BULK HOSE, FUEL (4.5X3000) (4.5X50)

Note: Use up to Engine SN 1287222.

$77.99

$

In Stock, only 1 left!

0

13

Honda 95001-45003-50M

SEE PART DETAILS - PRI; BULK HOSE, FUEL (4.5X3000) (4.5X130)

Note: Use from Engine SN 1287223.

$77.99

$

In Stock, only 1 left!

0

14

Honda 95001-45003-50M

SEE PART DETAILS - PRI; BULK HOSE, FUEL (4.5X3000) (4.5X25)

Note: Use from Engine SN 1287223.

$77.99

$

In Stock, only 1 left!

0

14

Honda 95001-45003-50M

SEE PART DETAILS - PRI; BULK HOSE, FUEL (4.5X3000) (4.5X115)

Note: Use up to Engine SN 1287222.

$77.99

$

In Stock, only 1 left!

0

15

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

16

Honda 95002-02100

CLIP, TUBE (B10)

$2.49

$

In Stock, Qty 16

0

17

Honda 95002-02080

CLIP, TUBE (B8)

Note: Use from Engine SN 1287223.

$2.49

$

In Stock, Qty 20+

0

17

Honda 95002-50000

CLIP, TUBE (C9)

Note: Use up to Engine SN 1287222.

$1.99

$

In Stock, Qty 13

0

18

Honda 17605-896-700

COVER, TUBE (NOT AVAILABLE)

Note: Use from Engine SN 1011780.

$

$

Currently unavailable

18

Honda 95003-40003-60M

BULK HOSE, VINYL (12X16X3000)

Note: Use up to Engine SN 1011779.

$

$

Not available
