HR17 PDAM (HR17) - Honda 17" Walk-Behind Mower, Made in Japan (SN: HR17-1000001 - HR17-9999999) HR17 FAN COVER Parts Diagram

17" Walk-Behind Mower, Made in Japan

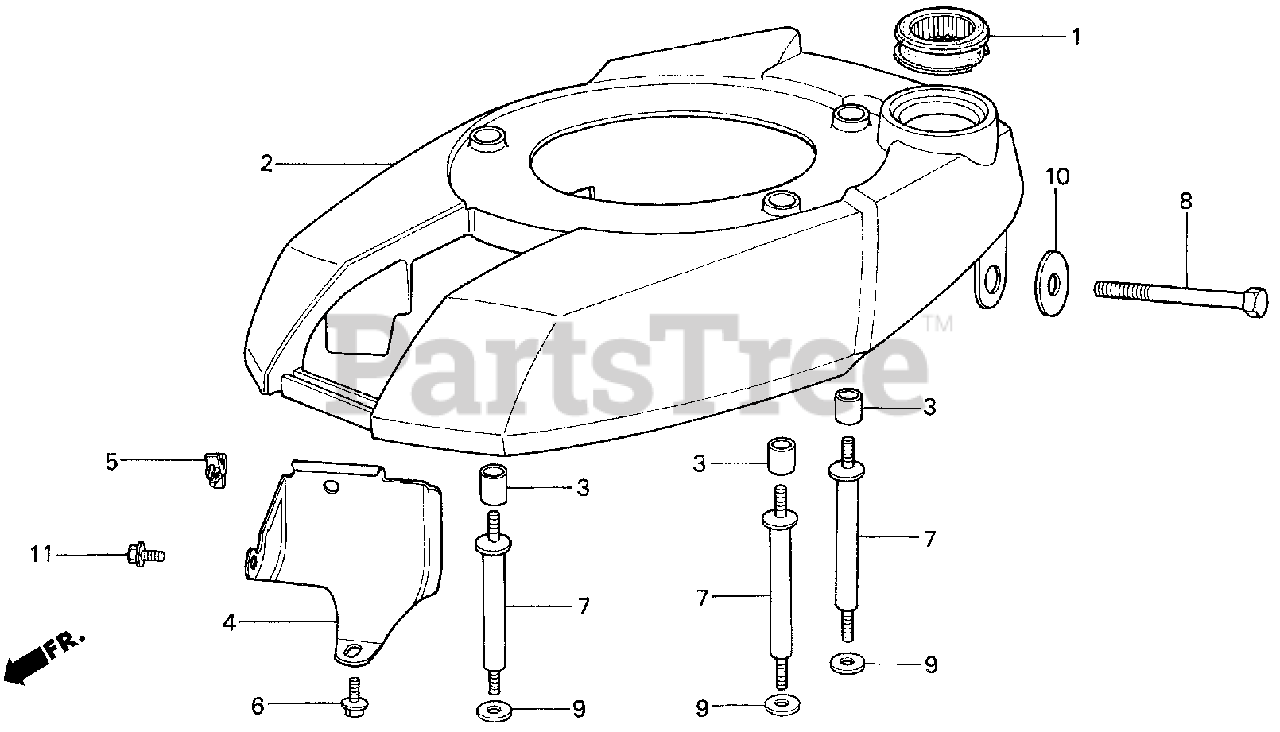

HR17 FAN COVER Parts Diagram

  • Title

1

Honda 17515-896-700

RUBBER A, TANK MOUNTING (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 19610-896-700

COVER, FAN (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 19612-896-700

COLLAR, RECOIL STARTER

$

$

Not available

4

Honda 19631-896-700

SHROUD

$

$

Not available

5

Honda 30701-883-000

SEE PART DETAILS - PRI; CLIP, IGNITION WIRE (8MM)

$4.49

$

In Stock, only 1 left!

0

6

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 20+

0

7

Honda 90042-896-702

BOLT, SPECIAL STUD

$

$

Currently unavailable

8

Honda 90121-896-700

BOLT, FUEL TANK (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 90402-921-000

WASHER (6MM)

Note: Use up to Engine SN 1028458.

$1.99

$

Usually ships in 3-6 days

0

9

Honda 94103-05800

WASHER, PLAIN (5MM)

Note: Use from Engine SN 1028459.

$1.49

$

Usually ships in 3-6 days

0

10

Honda 90455-896-700

WASHER, TANK MOUNTING

$4.49

$

In Stock, only 1 left!

0

11

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)
(Superseded to 95701-06012-08)

$2.49

$

In Stock, Qty 20+

0

11

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0
