HR17 PDAN (HR17) - Honda 17" Walk-Behind Mower, Made in Japan (SN: HR17-1000001 - HR17-9999999) HR17 PISTON Parts Diagram

17" Walk-Behind Mower, Made in Japan

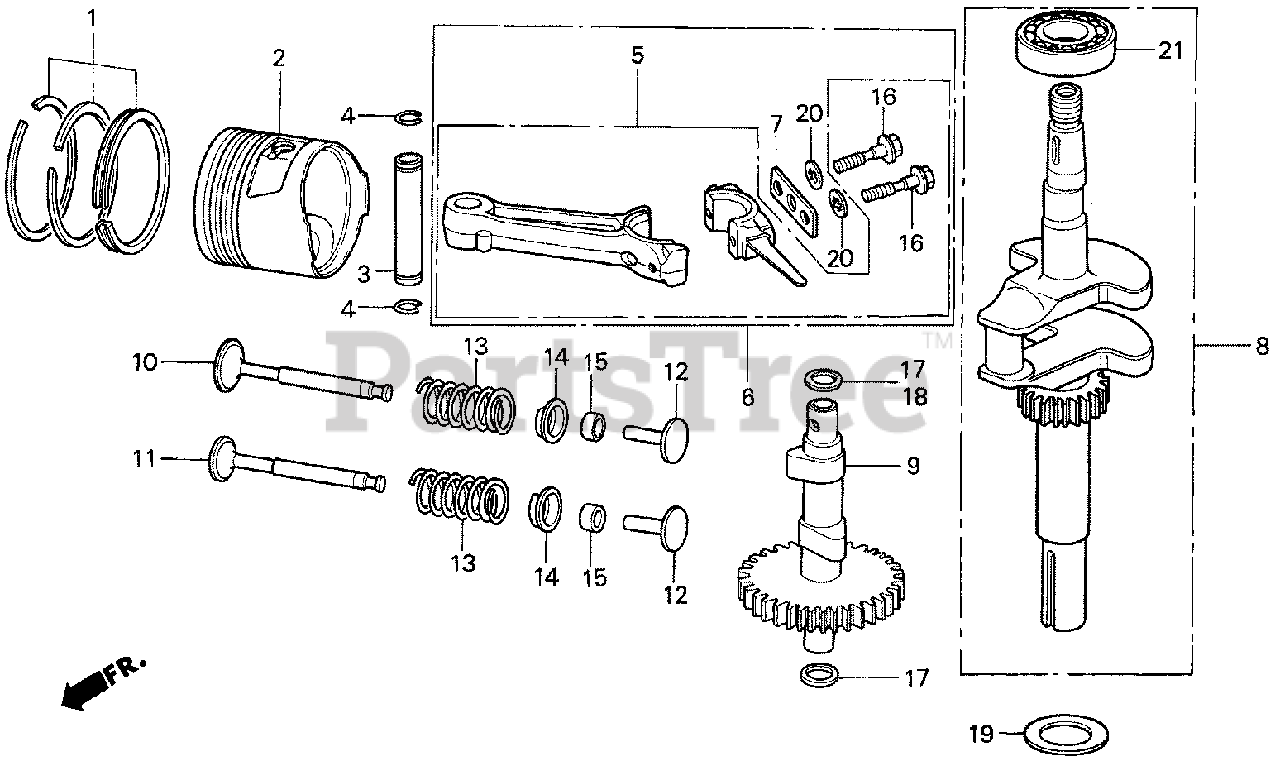

HR17 PISTON Parts Diagram

  • Title

1

Honda 130A1-896-003

RING SET, PISTON (STD) (TEIKOKU)

$36.99

$

Usually ships in 3-6 days

0

1

Honda 130B1-896-003

RING SET, PISTON (OVER SIZE)

$

$

Not available

1

Honda 130C1-896-003

RING SET, PISTON (OVER SIZE)

$

$

Not available

1

Honda 130D1-896-003

SEE PART DETAILS - PRI; RING SET, PISTON (OVER SIZE)

$

$

Currently unavailable

1

Honda 13013-896-003

SEE PART DETAILS - SUP; RING SET, PISTON (OVER SIZE)

$

$

Currently unavailable

2

Honda 13101-ZA8-000

SEE PART DETAILS - PRI; PISTON

$34.99

$

Usually ships in 3-6 days

0

2

Honda 13101-892-000

SEE PART DETAILS - SUP; PISTON (STD)
(Superseded to 13101-ZA8-000)

$34.99

$

Usually ships in 3-6 days

0

2

Honda 13102-892-000

SEE PART DETAILS - SUP; PISTON (OVER SIZE) (0.25)
(Superseded to 13102-ZA8-000)

$

$

Not available

2

Honda 13103-ZA8-000

SEE PART DETAILS - PRI; PISTON (OVER SIZE) (0.50)

$47.99

$

Usually ships in 3-6 days

0

2

Honda 13103-892-000

SEE PART DETAILS - SUP; PISTON (OVER SIZE) (0.50)

$

$

Currently unavailable

2

Honda 13104-ZA8-000

SEE PART DETAILS - PRI; PISTON (OVER SIZE) (0.75)

$

$

Not available

2

Honda 13104-892-000

SEE PART DETAILS - SUP; PISTON (OVER SIZE) (0.75)

$

$

Currently unavailable

3

Honda 13111-892-000

PIN, PISTON

$6.99

$

Usually ships in 3-6 days

0

4

Honda 13115-147-000

CLIP, PISTON PIN (10MM)

$2.99

$

Usually ships in 3-6 days

0

5

Honda 13200-ZG0-000

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (STD)

Note: Use from Engine SN 1443596.

$74.99

$

Usually ships in 3-6 days

0

5

Honda 13200-ZG0-305

ROD ASSY., CONNECTING (UNDER SIZE)

Note: Use from Engine SN 1443596.

$

$

Not available

6

Honda 13200-ZG0-000

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (STD)

Note: Use up to Engine SN 1443595.

$74.99

$

Usually ships in 3-6 days

0

6

Honda 13200-892-000

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING

Note: Use up to Engine SN 1443595.

$74.99

$

Usually ships in 3-6 days

0

6

Honda 13200-892-305

ROD ASSY., CONNECTING Use up to Engine SN 1443595.

$

$

Currently unavailable

7

Honda 13213-892-000

WASHER, CONNECTING ROD (NOT AVAILABLE)

Note: Use up to Engine SN 1443595.

$

$

Currently unavailable

8

Honda 13310-896-700

CRANKSHAFT

$

$

Currently unavailable

9

Honda 14111-896-010

CAMSHAFT

$

$

Not available

10

Honda 14711-896-000

VALVE, IN.

$31.99

$

Usually ships in 3-6 days

0

11

Honda 14721-896-000

VALVE, EX.

$33.99

$

Usually ships in 3-6 days

0

12

Honda 14732-892-010

LIFTER, VALVE

$

$

Currently unavailable

13

Honda 14751-896-000

SPRING, VALVE

$4.49

$

In Stock, only 1 left!

0

14

Honda 14771-892-000

RETAINER, VALVE SPRING (NOT AVAILABLE)

$2.99

$

Usually ships in 3-6 days

0

15

Honda 14801-892-000

ADJUSTER, TAPPET CLEARANCE (3.15)

$7.49

$

Usually ships in 3-6 days

0

15

Honda 14803-892-000

ADJUSTER, TAPPET CLEARANCE (3.25)

$7.49

$

Usually ships in 3-6 days

0

15

Honda 14806-892-000

ADJUSTER, TAPPET CLEARANCE (3.34)

$7.49

$

Usually ships in 3-6 days

0

15

Honda 14809-892-000

ADJUSTER, TAPPET CLEARANCE (3.43)

$7.49

$

Usually ships in 3-6 days

0

15

Honda 14812-892-000

ADJUSTER, TAPPET CLEARANCE (3.52)

$7.49

$

Usually ships in 3-6 days

0

15

Honda 14815-892-000

ADJUSTER, TAPPET CLEARANCE (3.61)

$7.49

$

Usually ships in 3-6 days

0

15

Honda 14818-892-000

ADJUSTER, TAPPET CLEARANCE (3.72)

$7.49

$

Usually ships in 3-6 days

0

16

Honda 90001-ZG0-000

BOLT, CONNECTING ROD

$3.49

$

Usually ships in 3-6 days

0

17

Honda 90412-329-000

WASHER, THRUST (10MM)
(Superseded to 90412-KZL-840)

Note: Use from Engine SN 1000944 to 1033288.

$0.99

$

In Stock, only 2 left!

0

17

Honda 90412-329-000

WASHER, THRUST (10MM)
(Superseded to 90412-KZL-840)

Note: Use from Engine SN 1033289.

$0.99

$

In Stock, only 2 left!

0

17

Honda 90452-892-000

WASHER, THRUST (9.9MM)

Note: Use up to Engine SN 1000943.

$

$

Not available

18

Honda 90452-892-000

WASHER, THRUST (9.9MM)

Note: Use from Engine SN 1033289.

$

$

Not available

19

Honda 90454-428-000

WASHER, THRUST (20MM)

$3.49

$

Usually ships in 3-6 days

0

20

Honda 90456-892-000

WASHER, LOCK

Note: Use up to Engine SN 1443595.

$

$

Not available

21

Honda 96100-62030-00

BEARING, RADIAL BALL (6203)

$11.99

$

Usually ships in 3-6 days

0
