HR173 PDA (MA2R) - Honda 17" Walk-Behind Mower, Made in Japan (SN: MA2R-1000001 - MA2R-6000000) AIR CLEANER Parts Diagram

17" Walk-Behind Mower, Made in Japan

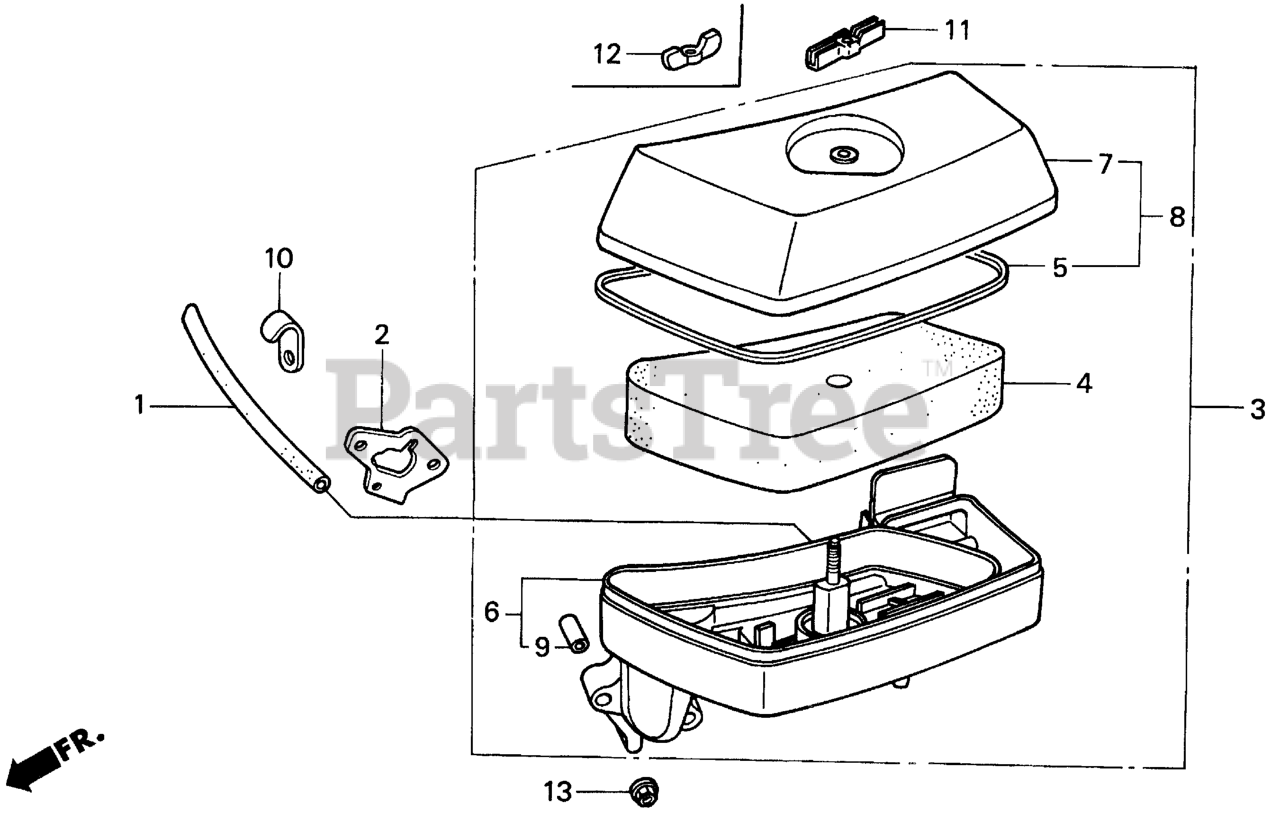

AIR CLEANER Parts Diagram

  • Title

1

Honda 15721-ZG1-700

TUBE, BREATHER

$

$

Not available

2

Honda 16269-ZG1-751

GASKET, AIR CLEANER

$

$

Not available

3

Honda 17200-ZG1-700B

AIR CLEANER ASSY. *NH1* (BLACK)

Note: Use from Engine SN 2057378 to 2085823.

$

$

Currently unavailable

3

Honda 17200-ZG1-701B

AIR CLEANER ASSY. *NH1* (BLACK)

Note: Use from Engine SN 2085824.

$

$

Currently unavailable

4

Honda 17211-ZG1-700

ELEMENT, AIR CLEANER

$6.49

$

In Stock, only 1 left!

0

5

Honda 17219-ZG1-700

RUBBER, SEAL

Note: Use from Engine SN 2057378.

$

$

Not available

6

Honda 17220-ZG1-700

SEE PART DETAILS - SUP; HOUSING, AIR CLEANER
(Superseded to 17200-ZG1-701ZA)

Note: Use up to Engine SN 2057377.

$

$

Not available

6

Honda 17220-ZG1-701

HOUSING, AIR CLEANER

Note: Use from Engine SN 2057378 to 2085823.

$

$

Currently unavailable

6

Honda 17220-ZG1-702B

HOUSING, AIR CLEANER *NH1* (BLACK)

Note: Use from Engine SN 2085824.

$

$

Currently unavailable

7

Honda 17231-ZG1-701ZC

SEE PART DETAILS - PRI; COVER, AIR CLEANER *NH105* (MAT BLACK)

Note: Use up to Engine SN 2057377.

$

$

Not available

8

Honda 17231-ZG1-701ZC

SEE PART DETAILS - PRI; COVER, AIR CLEANER *NH105* (MAT BLACK)

Note: Use from Engine SN 2057378.

$

$

Not available

9

Honda 17233-896-700

COLLAR, AIR CLEANER HOUSING (NOT AVAILABLE)

Note: Use up to Engine SN 2085823.

$

$

Currently unavailable

9

Honda 17233-896-701

COLLAR, AIR CLEANER HOUSING (Honda Code 2577419).

Note: Use from Engine SN 2085824.

$4.49

$

Usually ships in 3-6 days

0

10

Honda 90010-GE0-710

CLIP, TUBE

Note: Use from Engine SN 2057378.

$2.99

$

Usually ships in 3-6 days

0

11

Honda 90203-ZA0-800

WINGNUT (6MM) (Honda Code 1742238).

Note: Use up to Engine SN 2565893.

$3.99

$

Usually ships in 3-6 days

0

12

Honda 90325-044-000

SEE PART DETAILS - PRI; WINGNUT, TOOL BOX SETTING (Honda Code 0127720).

Note: Use from Engine SN 2565894.

$5.49

$

In Stock, Qty 20+

0

13

Honda 94050-05000

NUT, FLANGE (5MM) (Honda Code 0636951).

$1.99

$

In Stock, Qty 20+

0
