HR173 PDA (MA2R) - Honda 17" Walk-Behind Mower, Made in Japan (SN: MA2R-1000001 - MA2R-6000000) CYLINDER Parts Diagram

17" Walk-Behind Mower, Made in Japan

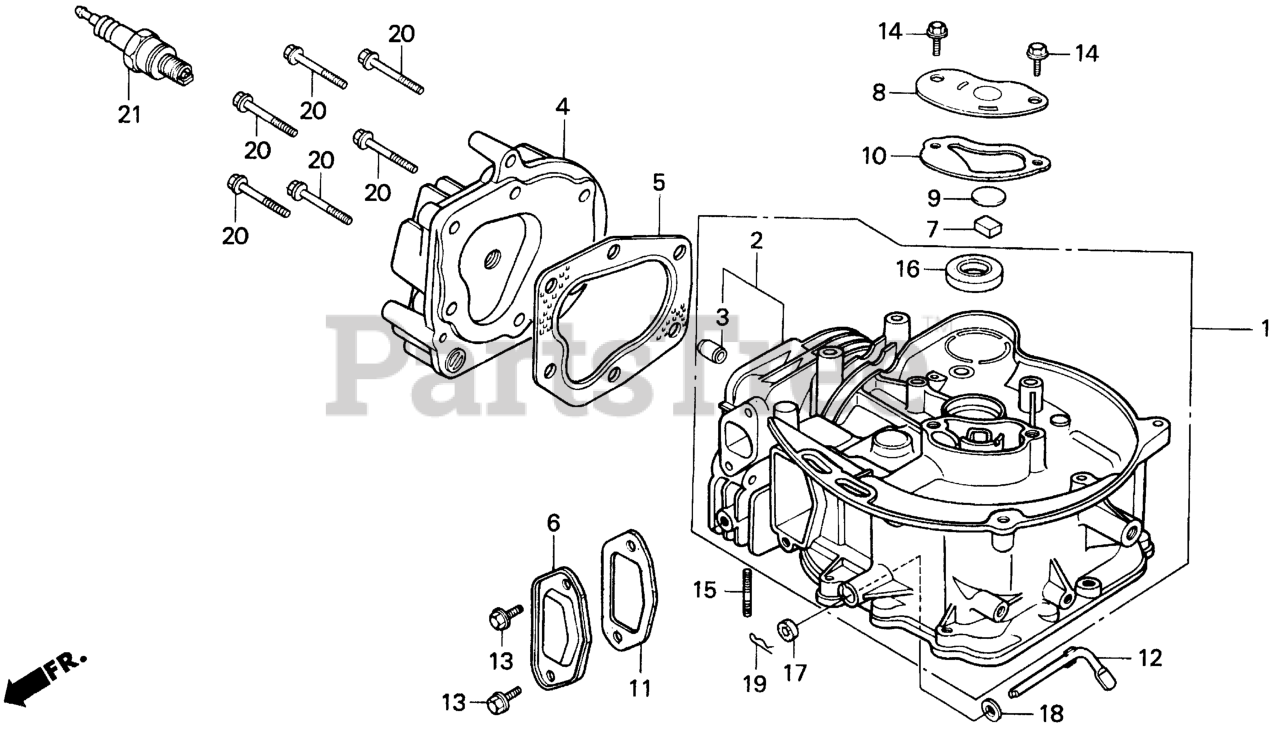

CYLINDER Parts Diagram

  • Title

1

Honda 120A0-ZG1-030

CYLINDER ASSY.

Note: Use from Engine SN 2456089.

$

$

Not available

2

Honda 121A0-ZG1-010

CYLINDER

Note: Use up to Engine SN 2456088.

$

$

Not available

3

Honda 12133-896-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OVER SIZE)

Note: (Optional).

$12.99

$

Usually ships in 3-6 days

0

4

Honda 12221-ZG1-010

CYLINDER HEAD

$

$

Not available

5

Honda 12281-ZG1-750

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD

$

$

Not available

6

Honda 12363-ZG1-000

COVER, TAPPET ROOM

$9.99

$

Usually ships in 3-6 days

0

7

Honda 12367-ZG1-003

FILTER, BREATHER

Note: Use up to Engine SN 2194501.

$

$

Currently unavailable

7

Honda 12367-ZG1-013

SEE PART DETAILS - PRI; FILTER, BREATHER

Note: Use from Engine SN 2194502.

$2.99

$

In Stock, only 1 left!

0

8

Honda 12370-ZG1-010

SEE PART DETAILS - SUP; CAP, BREATHER CHAMBER
(Superseded to 12370-ZG1-020)

Note: Use up to Engine SN 2562144.

$9.99

$

Usually ships in 3-6 days

0

8

Honda 12370-ZG1-020

SEE PART DETAILS - PRI; CAP, BREATHER CHAMBER

$9.99

$

Usually ships in 3-6 days

0

9

Honda 12372-879-000

VALVE, BREATHER (Honda Code 0452151).

$2.99

$

In Stock, only 2 left!

0

10

Honda 12373-ZG1-000

GASKET, BREATHER CAP

$

$

Not available

11

Honda 12375-ZG1-000

GASKET, TAPPET COVER

$2.99

$

In Stock, only 4 left!

0

12

Honda 16541-896-000

SEE PART DETAILS - PRI; SHAFT, GOVERNOR ARM

$10.99

$

Usually ships in 3-6 days

0

13

Honda 90002-892-000

BOLT, FLANGE (5X10) Use from Engine SN 2327377.

$1.99

$

In Stock, Qty 5

0

14

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 20+

0

15

Honda 90046-ZG0-000

BOLT, STUD (6X50)

$4.99

$

Usually ships in 3-6 days

0

16

Honda 91202-892-004

SEE PART DETAILS - PRI; OIL SEAL (17X30X6) (NOK)

$14.99

$

Usually ships in 3-6 days

0

17

Honda 91231-816-000

OIL SEAL (5X10X4)

$

$

Not available

18

Honda 94101-05000

SEE PART DETAILS - PRI; WASHER, PLAIN (5MM) (Honda Code 0059055).

$1.49

$

In Stock, only 2 left!

0

19

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 14

0

20

Honda 95801-06035-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X35)

$1.49

$

In Stock, only 4 left!

0

21

Honda 98073-54744

SPARK PLUG (BMR4A) (NGK)

$3.99

$

In Stock, Qty 12

0

21

Honda 98073-54754

SPARK PLUG (W14MR-U) (DENSO)

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0
