HR173 PDA (MA2R) - Honda 17" Walk-Behind Mower, Made in USA (SN: MA2R-6000001 - MA2R-9999999) HR173 AIR CLEANER Parts Diagram

17" Walk-Behind Mower, Made in USA

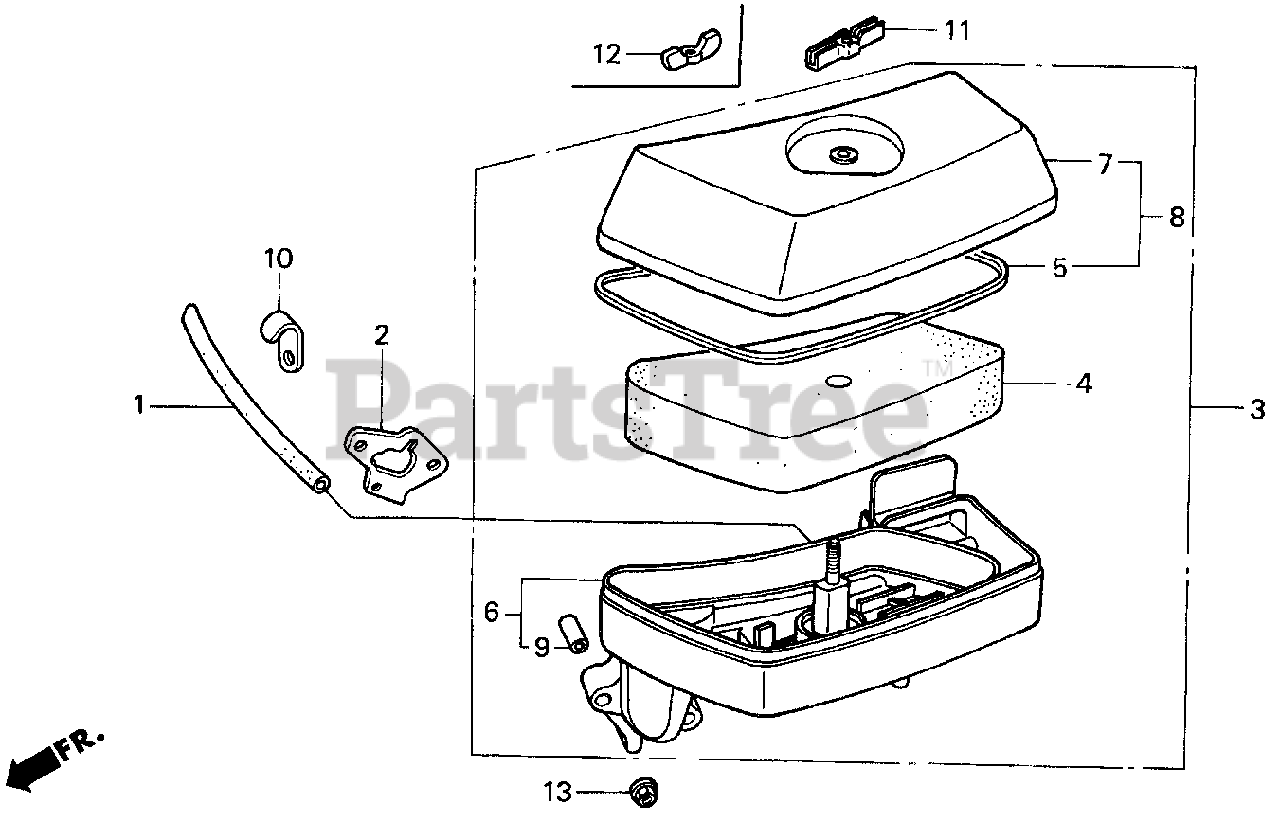

HR173 AIR CLEANER Parts Diagram

  • Title

1

Honda 15721-ZG1-700

TUBE, BREATHER

$

$

Not available

2

Honda 16269-ZG1-751

GASKET, AIR CLEANER

$

$

Not available

3

Honda 17200-ZG1-701ZA

SEE PART DETAILS - PRI; AIR CLEANER ASSY.

Note: Use from Engine SN 2057378.

$

$

Not available

4

Honda 17211-ZG1-700

ELEMENT, AIR CLEANER

$6.49

$

In Stock, only 1 left!

0

5

Honda 17219-ZG1-700

RUBBER, SEAL

Note: Use from Engine SN 2057378.

$

$

Not available

6

Honda 04101-ZG1-700ZA

CASE SET, AIR CLEANER *NH1* (BLACK)

Note: Use from Engine SN 2057378 to 2085823.

$34.99

$

Usually ships in 3-6 days

0

6

Honda 17200-ZG1-701ZA

SEE PART DETAILS - PRI; AIR CLEANER ASSY.

Note: Use up to Engine SN 2057377.

$

$

Not available

6

Honda 17220-ZG1-700

SEE PART DETAILS - SUP; HOUSING, AIR CLEANER
(Superseded to 17200-ZG1-701ZA)

Note: Use up to Engine SN 2057377.

$

$

Not available

6

Honda 17220-ZG1-702ZA

HOUSING, AIR CLEANER *NH1* (BLACK)

Note: Use from Engine SN 2085824.

$

$

Not available

7

Honda 17231-ZG1-701ZC

SEE PART DETAILS - PRI; COVER, AIR CLEANER *NH105* (MAT BLACK)

Note: Use up to Engine SN 2057377.

$

$

Not available

8

Honda 17231-ZG1-701ZC

SEE PART DETAILS - PRI; COVER, AIR CLEANER *NH105* (MAT BLACK)

Note: Use from Engine SN 2057378.

$

$

Not available

9

Honda 17233-896-700

COLLAR, AIR CLEANER HOUSING (NOT AVAILABLE)

Note: Use up to Engine SN 2085823.

$

$

Currently unavailable

9

Honda 17233-896-701

COLLAR, AIR CLEANER HOUSING

Note: Use from Engine SN 2085824.

$4.49

$

Usually ships in 3-6 days

0

10

Honda 90010-GE0-710

CLIP, TUBE

Note: Use from Engine SN 2057378.

$2.99

$

Usually ships in 3-6 days

0

11

Honda 90203-ZA0-800

WINGNUT (6MM) (BLACK)

Note: Use up to Engine SN 2565893.

$3.99

$

In Stock, only 1 left!

0

12

Honda 90325-044-000

NUT, TOOL BOX SETTING

Note: Use from Engine SN 2565894.

$5.49

$

In Stock, Qty 20+

0

13

Honda 94050-05000

NUT, FLANGE (5MM)

$1.99

$

In Stock, Qty 20+

0
