HR173 PDA (MA2R) - Honda 17" Walk-Behind Mower, Made in USA (SN: MA2R-6000001 - MA2R-9999999) HR173 CARBURETOR Parts Diagram

17" Walk-Behind Mower, Made in USA

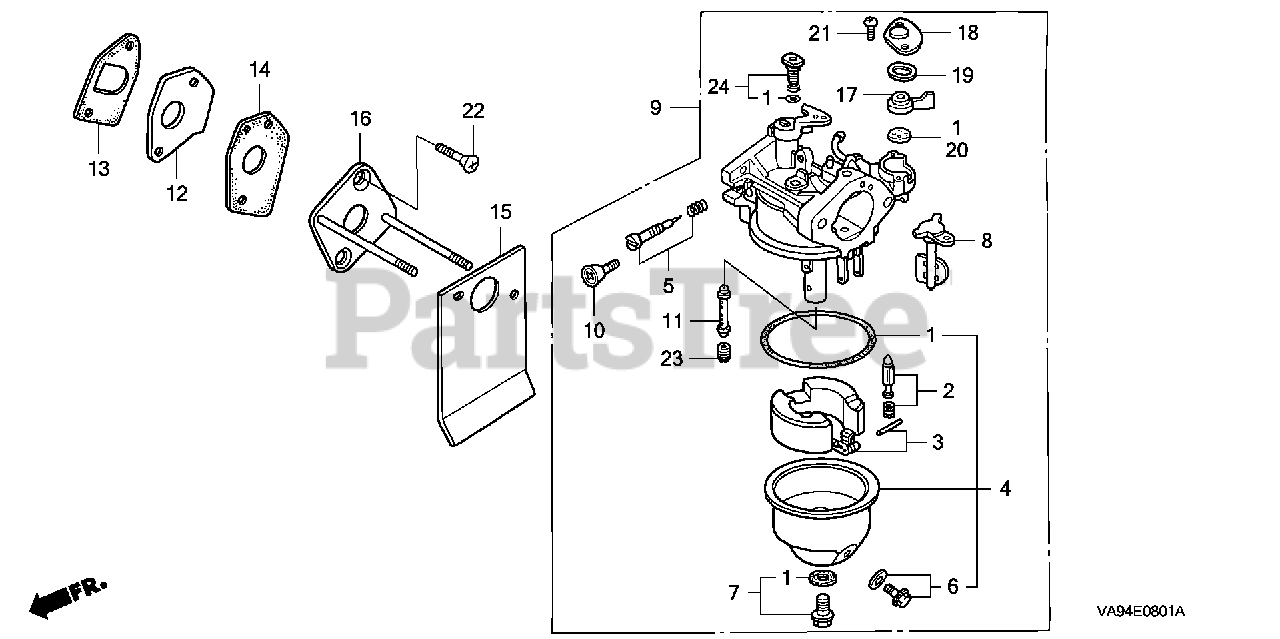

HR173 CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZG0-015

SEE PART DETAILS - SUP; GASKET SET

$

$

Currently unavailable

1

Honda 16010-ZG1-015

SEE PART DETAILS - PRI; GASKET SET

$21.99

$

In Stock, only 4 left!

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT

$33.99

$

In Stock, Qty 8

0

3

Honda 16013-ZG0-811

FLOAT SET
(Superseded to 16013-ZDJ-801)

$6.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZG0-811

CHAMBER SET, FLOAT

$46.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZE0-005

SCREW SET, PILOT

$17.99

$

Usually ships in 3-6 days

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN

$12.99

$

Usually ships in 3-6 days

0

7

Honda 16028-ZG0-811

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZW6-611)

$16.99

$

Usually ships in 3-6 days

0

7

Honda 16028-ZW6-611

SEE PART DETAILS - PRI; SCREW SET

$16.99

$

Usually ships in 3-6 days

0

8

Honda 16044-ZG1-751

CHOKE SET

$38.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZG1-703

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BF07A C)

$123.99

$

In Stock, only 1 left!

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$20.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZG1-701

NOZZLE, MAIN

$

$

Not available

12

Honda 16211-ZG0-020

SEE PART DETAILS - PRI; INSULATOR, CARBURETOR

$13.99

$

In Stock, only 2 left!

0

13

Honda 16212-ZG0-800

GASKET, INSULATOR

$3.49

$

In Stock, Qty 6

0

14

Honda 16221-ZG0-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$3.49

$

In Stock, Qty 20+

0

15

Honda 16221-ZG1-J31

GASKET, CARBURETOR

$

$

Not available

16

Honda 16225-ZG1-750

PLATE, CARBURETOR JOINT

$

$

Not available

17

Honda 16953-ZG1-751

SEE PART DETAILS - SUP; LEVER, VALVE

Note: Use up to Engine SN 2633224.

$

$

Currently unavailable

17

Honda 16953-ZG1-751

SEE PART DETAILS - SUP; LEVER, VALVE

$

$

Currently unavailable

17

Honda 16953-ZG1-752

LEVER, VALVE

Note: Use from Engine SN 2633225.

$

$

Not available

18

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING

$4.99

$

Usually ships in 3-6 days

0

18

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING

$4.99

$

Usually ships in 3-6 days

0

19

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER

$4.99

$

In Stock, only 4 left!

0

20

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK

$4.99

$

In Stock, only 2 left!

0

21

Honda 93500-03006-0H

SCREW, PAN (3X6)

Note: Use from Engine SN 2633225.

$1.49

$

In Stock, Qty 6

0

21

Honda 93500-03008-0G

SCREW, PAN (3X8)

Note: Use up to Engine SN 2633224.

$

$

Not available

21

Honda 93500-03008-0G

SCREW, PAN (3X8)

$

$

Not available

22

Honda 93600-05020-0H

SCREW, FLAT (3X6)

$0.99

$

Usually ships in 3-6 days

0

23

Honda 99101-187-0550

SEE PART DETAILS - SUP; JET, MAIN (#55)
(Superseded to 99101-ZG0-0550)

$12.99

$

In Stock, only 3 left!

0

23

Honda 99101-187-0580

JET, MAIN (#58)

$12.99

$

Usually ships in 3-6 days

0

23

Honda 99101-187-0600

JET, MAIN (#60)

$11.99

$

Usually ships in 3-6 days

0

24

Honda 99204-ZE0-0350

JET SET, PILOT (#35)

$26.99

$

In Stock, only 3 left!

0
