HR173 PDA (MA2R) - Honda 17" Walk-Behind Mower, Made in USA (SN: MA2R-6000001 - MA2R-9999999) HR173 CUTTER HOUSING Parts Diagram

17" Walk-Behind Mower, Made in USA

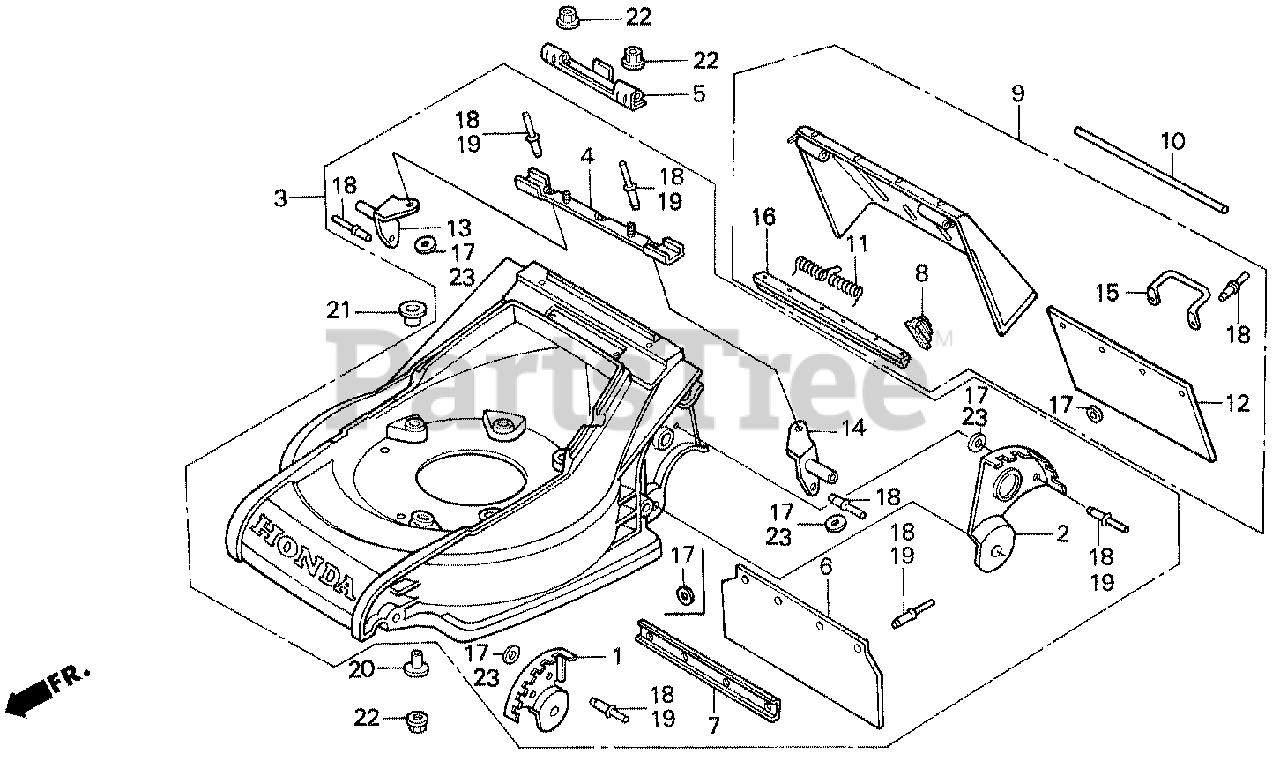

HR173 CUTTER HOUSING Parts Diagram

  • Title

1

Honda 42981-VA9-000

PANEL, FR. ADJUSTING

$16.99

$

Usually ships in 3-6 days

0

2

Honda 42987-VA9-000

PANEL, RR. ADJUSTING

$

$

Not available

3

Honda 76110-VD4-G00ZA

HOUSING, CUTTER *NH246* (LOOSY GRAY)

$153.99

$

Usually ships in 3-6 days

0

4

Honda 76113-VA9-000

HINGE, DISCHARGE GUARD

$

$

Not available

5

Honda 76114-VA9-000

HINGE, DISCHARGE GUARD

$

$

Currently unavailable

6

Honda 76118-VA9-000

SHIELD, SAFETY

$31.99

$

Usually ships in 3-6 days

0

7

Honda 76119-VA9-000

PLATE, SAFETY SHIELD

Note: Use up to Frame SN 1043770.

$

$

Not available

8

Honda 76122-VA4-000

STOPPER, DISCHARGE GUARD

$4.49

$

In Stock, only 2 left!

0

9

Honda 76310-VA9-G00

GUARD, DISCHARGE

$

$

Currently unavailable

9

Honda 76310-VA9-000

SEE PART DETAILS - PRI; GUARD, DISCHARGE (NOT AVAILABLE)

$

$

Not available

10

Honda 76312-VA9-000

SHAFT, DISCHARGE GUARD

$10.99

$

Usually ships in 3-6 days

0

11

Honda 76314-VA5-000

SEE PART DETAILS - SUP; SPRING, GUARD RETURN
(Superseded to 76314-VA5-010)

$5.99

$

In Stock, only 1 left!

0

11

Honda 76314-VA5-010

SEE PART DETAILS - PRI; SPRING, GUARD RETURN

$5.99

$

In Stock, only 1 left!

0

12

Honda 76314-VA9-000

SHIELD, DISCHARGE GUARD

$

$

Currently unavailable

13

Honda 76315-VA9-000

STAY, R. HANDLE

$

$

Not available

14

Honda 76316-VA9-000

STAY, L. HANDLE

$

$

Not available

15

Honda 76318-VA9-000

GRIP, DISCHARGE GUARD

$

$

Currently unavailable

16

Honda 76319-VA9-000

SEAL, DISCHARGE GUARD

$

$

Not available

17

Honda 90483-041-000

SEE PART DETAILS - PRI; WASHER, STOPPER

$2.49

$

Usually ships in 3-6 days

0

17

Honda 90483-041-000

SEE PART DETAILS - PRI; WASHER, STOPPER

Note: Use up to Frame SN 1001386.

$2.49

$

Usually ships in 3-6 days

0

17

Honda 90483-041-000

SEE PART DETAILS - PRI; WASHER, STOPPER

Note: Use from Frame SN 1001387 to 1043770.

$2.49

$

Usually ships in 3-6 days

0

17

Honda 90483-041-000

SEE PART DETAILS - PRI; WASHER, STOPPER

Note: Use from Frame SN 1043771.

$2.49

$

Usually ships in 3-6 days

0

18

Honda 90851-VA9-000

RIVET, BLIND (4.8MM)

$2.49

$

Usually ships in 3-6 days

0

18

Honda 90851-VA9-000

RIVET, BLIND (4.8MM)

Note: Use up to Frame SN 1016486.

$2.49

$

Usually ships in 3-6 days

0

18

Honda 90851-VA9-000

RIVET, BLIND (4.8MM)

Note: Use from Frame SN 1016487.

$2.49

$

Usually ships in 3-6 days

0

19

Honda 90852-VA9-000

RIVET, BLIND (4.8X18.2)

$

$

Not available

19

Honda 90852-VA9-000

RIVET, BLIND (4.8X18.2)

Note: Use from Frame SN 1016487.

$

$

Not available

20

Honda 91901-VA9-010

COLLAR, ENGINE BED

$

$

Not available

21

Honda 91902-VA9-010

COLLAR

$

$

Not available

22

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

23

Honda 94103-05000

WASHER, PLAIN (5MM)

Note: Use up to Frame SN 1001386.

$0.99

$

In Stock, only 4 left!

0
