HR173 PDA (MA2R) - Honda 17" Walk-Behind Mower, Made in USA (SN: MA2R-6000001 - MA2R-9999999) HR173 FLYWHEEL Parts Diagram

17" Walk-Behind Mower, Made in USA

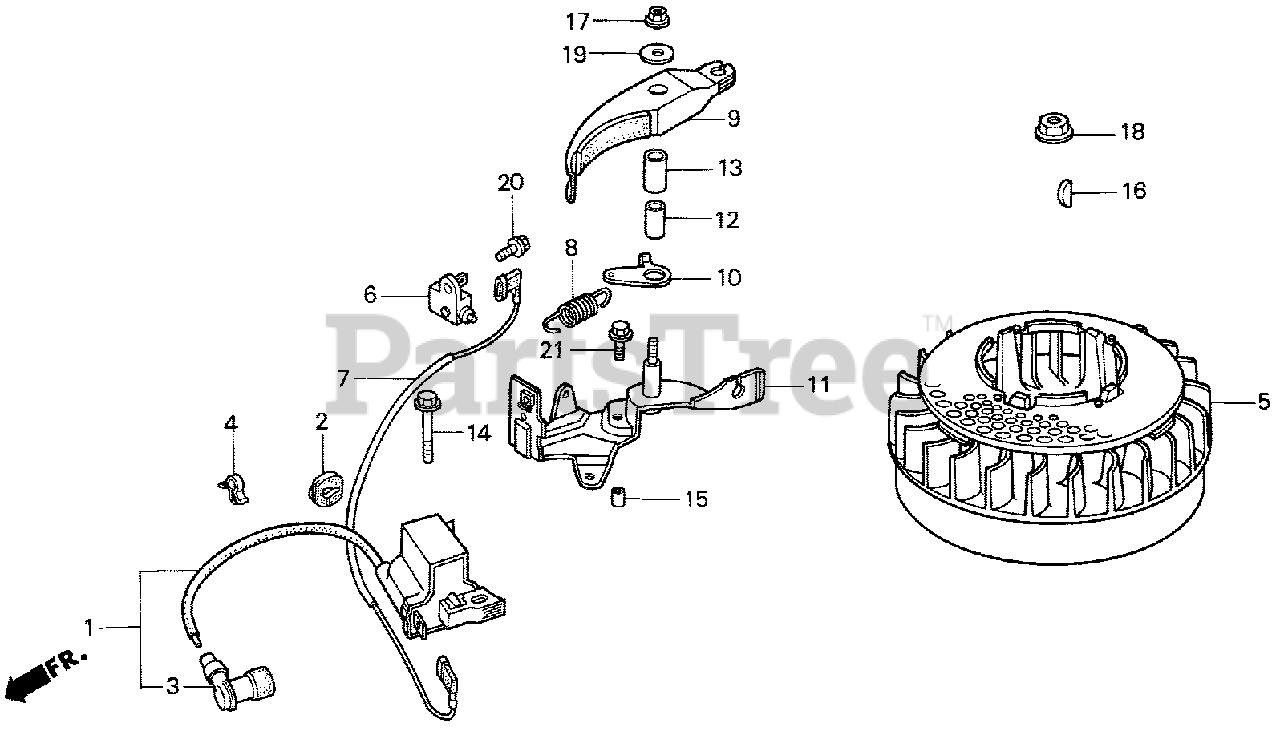

HR173 FLYWHEEL Parts Diagram

  • Title

1

Honda 30500-ZG1-762

SEE PART DETAILS - SUP; COIL ASSY., IGNITION

$

$

Not available

2

Honda 30563-ZG0-000

GROMMET, IGNITION WIRE

$5.49

$

Usually ships in 3-6 days

0

3

Honda 30700-896-702

CAP ASSY., NOISE SUPPRESSOR

$13.99

$

Usually ships in 3-6 days

0

4

Honda 30701-883-000

SEE PART DETAILS - PRI; CLIP, IGNITION WIRE (8MM)

$4.49

$

In Stock, only 1 left!

0

5

Honda 31000-ZG1-712

FLYWHEEL ASSY.

$

$

Not available

6

Honda 35340-ZE5-013

SWITCH ASSY., ENGINE

$

$

Not available

7

Honda 36101-ZG1-710

WIRE, STOP SWITCH

$

$

Not available

8

Honda 75112-ZG1-710

SPRING, BRAKE

$6.49

$

Usually ships in 3-6 days

0

9

Honda 75120-ZG1-710

BRAKE

$25.99

$

Usually ships in 3-6 days

0

10

Honda 75122-ZG1-710

SPRING, LEVER

$

$

Not available

11

Honda 75130-ZG1-710

BASE, BRAKE

$

$

Not available

12

Honda 75132-ZG1-710

BUSH, BRAKE SHAFT

$

$

Currently unavailable

13

Honda 75133-ZG1-710

COLLAR, BRAKE SHAFT

$6.49

$

Usually ships in 3-6 days

0

14

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) (CT200)

$3.49

$

In Stock, Qty 5

0

15

Honda 90601-GE0-000

PIN, DOWEL (8X10)

$

$

Not available

16

Honda 90741-035-000

KEY, WOODRUFF (3MM)

$6.99

$

Usually ships in 3-6 days

0

17

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

18

Honda 94050-12000

NUT, FLANGE (12MM)

$1.49

$

In Stock, only 2 left!

0

19

Honda 94103-06000

WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 7

0

20

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

21

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)

$2.49

$

In Stock, Qty 15

0
