HR173 PDA (MA2R) - Honda 17" Walk-Behind Mower, Made in USA (SN: MA2R-6000001 - MA2R-9999999) HR173 RECOIL STARTER --2613584 Parts Diagram

17" Walk-Behind Mower, Made in USA

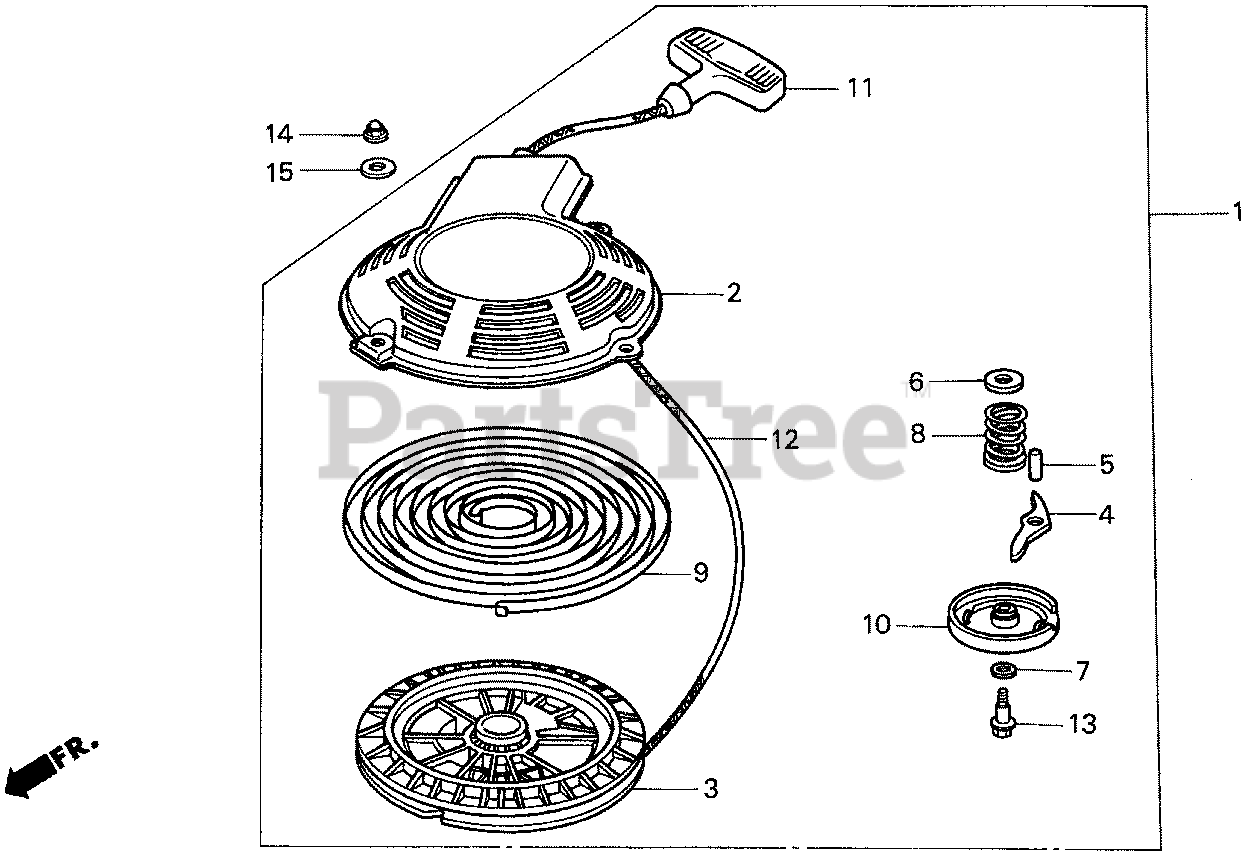

HR173 RECOIL STARTER --2613584 Parts Diagram

  • Title

1

Honda 28400-ZG1-405ZB

STARTER ASSY., RECOIL

Note: Use up to Engine SN 2613584.

$

$

Not available

2

Honda 28410-ZG1-701ZC

SEE PART DETAILS - PRI; CASE, STARTER *R8* (BRIGHT RED)

Note: Use up to Engine SN 2613584.

$

$

Not available

3

Honda 28420-ZG0-003

SEE PART DETAILS - SUP; REEL, STARTER
(Superseded to 28421-Z1B-D10)

Note: Use up to Engine SN 2613584.

$37.99

$

Usually ships in 3-6 days

0

4

Honda 28422-ZG0-003

SEE PART DETAILS - SUP; RATCHET, STARTER
(Superseded to 28422-Z1B-D10)

Note: Use up to Engine SN 2613584.

$8.49

$

Usually ships in 3-6 days

0

4

Honda 28422-Z1B-D10

SEE PART DETAILS - PRI; RATCHET, STARTER

Note: Use up to Engine SN 2613584.

$8.49

$

Usually ships in 3-6 days

0

5

Honda 28423-ZG0-003

SEE PART DETAILS - SUP; SHAFT, RATCHET
(Superseded to 28423-Z1B-D10)

Note: Use up to Engine SN 2613584.

$7.99

$

Usually ships in 3-6 days

0

6

Honda 28431-ZG0-003

SEE PART DETAILS - SUP; PLATE A, FRICTION
(Superseded to 28431-Z1B-D10)

Note: Use up to Engine SN 2613584.

$7.99

$

Usually ships in 3-6 days

0

7

Honda 28432-ZG0-003

SEE PART DETAILS - SUP; PLATE B, FRICTION
(Superseded to 28432-883-T20)

Note: Use up to Engine SN 2613584.

$3.49

$

In Stock, only 2 left!

0

7

Honda 28432-ZG0-004

SEE PART DETAILS - SUP; PLATE B, FRICTION
(Superseded to 28432-883-T20)

Note: Use up to Engine SN 2613584.

$3.49

$

In Stock, only 2 left!

0

8

Honda 28441-ZG0-003

SPRING, FRICTION

Note: Use up to Engine SN 2613584.

$5.99

$

Usually ships in 3-6 days

0

9

Honda 28442-ZG0-003

SPRING, RETURN

Note: Use up to Engine SN 2613584.

$29.99

$

Usually ships in 3-6 days

0

10

Honda 28443-ZG0-003

SEE PART DETAILS - SUP; COVER, REEL STARTER
(Superseded to 28474-Z1B-D10)

Note: Use up to Engine SN 2613584.

$5.49

$

Usually ships in 3-6 days

0

10

Honda 28474-Z1B-D10

SEE PART DETAILS - PRI; COVER, REEL STARTER

Note: Use up to Engine SN 2613584.

$5.49

$

Usually ships in 3-6 days

0

11

Honda 28461-ZG0-013

GRIP, STARTER

Note: Use up to Engine SN 2613584.

$

$

Not available

12

Honda 28462-ZG1-751

ROPE, STARTER (#3.5X100") (NA USE ALT:08535-ZG921-11)

Note: Use up to Engine SN 2613584.

$

$

Currently unavailable

13

Honda 90003-ZG0-003

BOLT, REEL COVER

Note: Use up to Engine SN 2613584.

$3.49

$

Usually ships in 3-6 days

0

14

Honda 90106-MB9-871

NUT, FLANGE CAP (5MM)

Note: Use up to Engine SN 2613584.

$4.49

$

Usually ships in 3-6 days

0

15

Honda 94103-05000

WASHER, PLAIN (5MM)

Note: Use up to Engine SN 2613584.

$0.99

$

In Stock, only 2 left!

0
