HR173 PDA (MA2R) - Honda 17" Walk-Behind Mower, Made in USA (SN: MA2R-6000001 - MA2R-9999999) HR173 RECOIL STARTER 2613585-- Parts Diagram

17" Walk-Behind Mower, Made in USA

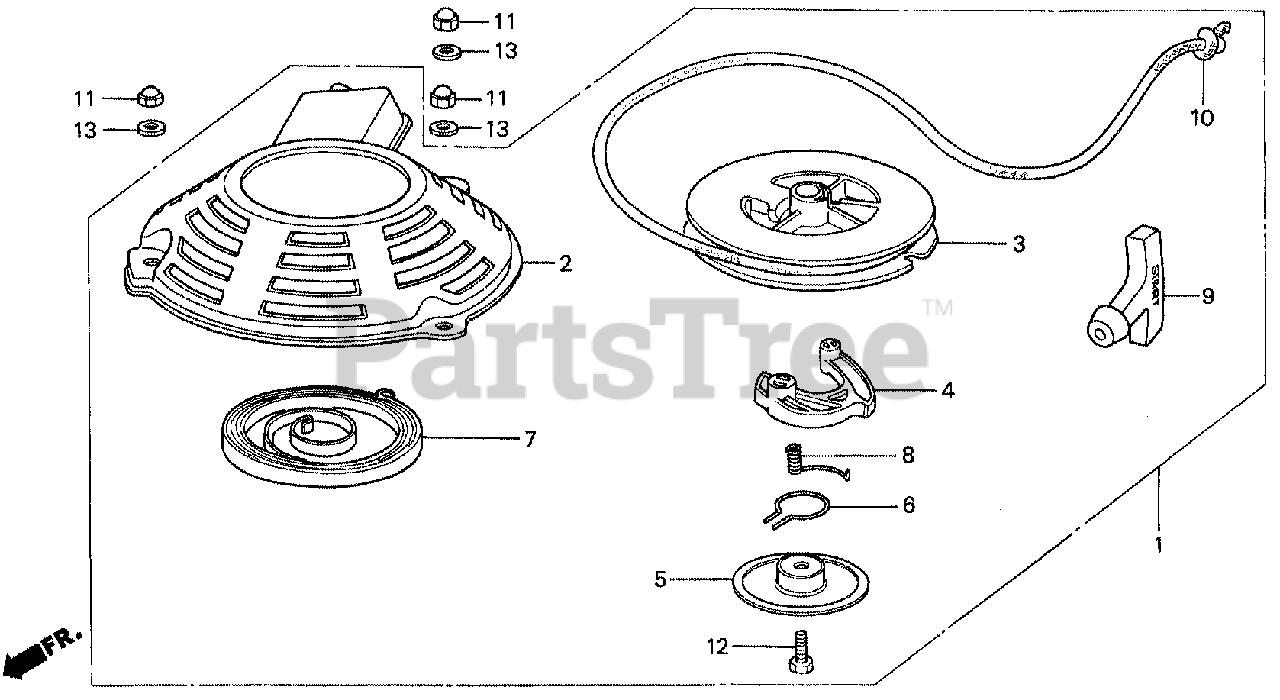

HR173 RECOIL STARTER 2613585-- Parts Diagram

  • Title

1

Honda 28400-ZG1-702ZA

STARTER ASSY., RECOIL *G144* (GARDEN GREEN)

Note: Use from Engine SN 2613585.

$

$

Not available

1

Honda 28400-ZG1-702ZD

STARTER ASSY., RECOIL *R8* (BRIGHT RED)

Note: Use from Engine SN 2613585.

$

$

Not available

2

Honda 28410-ZG1-702ZB

CASE, RECOIL STARTER *G144* (GARDEN GREEN)

Note: Use from Engine SN 2613585.

$

$

Not available

2

Honda 28410-ZG1-702ZD

SEE PART DETAILS - PRI; CASE, RECOIL STARTER *R8* (BRIGHT RED)

Note: Use from Engine SN 2613585.

$

$

Not available

3

Honda 28420-ZG1-702

REEL, RECOIL STARTER

Note: Use from Engine SN 2613585.

$

$

Not available

4

Honda 28422-896-010

RATCHET, STARTER

Note: Use from Engine SN 2613585.

$7.99

$

In Stock, only 1 left!

0

5

Honda 28431-896-000

PLATE, FRICTION

Note: Use from Engine SN 2613585.

$6.49

$

Usually ships in 3-6 days

0

6

Honda 28441-896-000

SPRING, FRICTION

Note: Use from Engine SN 2613585.

$8.49

$

Usually ships in 3-6 days

0

7

Honda 28442-ZE6-003

SPRING, RECOIL STARTER

Note: Use from Engine SN 2613585.

$23.99

$

Usually ships in 3-6 days

0

8

Honda 28443-896-000

SPRING, RETURN

Note: Use from Engine SN 2613585.

$4.99

$

In Stock, only 1 left!

0

9

Honda 28461-ZG0-004

KNOB, STARTER

Note: Use from Engine SN 2613585.

$8.99

$

Usually ships in 3-6 days

0

10

Honda 28462-ZG9-T42

SEE PART DETAILS - PRI; ROPE (#4X91")

Note: Use from Engine SN 2613585.

$4.99

$

Usually ships in 3-6 days

0

11

Honda 90106-MB9-871

NUT, FLANGE CAP (5MM)

Note: Use from Engine SN 2613585.

$3.99

$

Usually ships in 3-6 days

0

12

Honda 92101-06012-0H

BOLT, HEX. (6X12)

Note: Use from Engine SN 2613585.

$1.99

$

Usually ships in 3-6 days

0

13

Honda 94103-05000

WASHER, PLAIN (5MM)

Note: Use from Engine SN 2613585.

$0.99

$

In Stock, only 4 left!

0
