HR195 SXA (MZAK) - Honda 19" Walk-Behind Mower, Made in USA (SN: MZAK-6000001 - MZAK-9999999) JOINT (SXA,SMA,HXA,HMA) Parts Diagram

19" Walk-Behind Mower, Made in USA

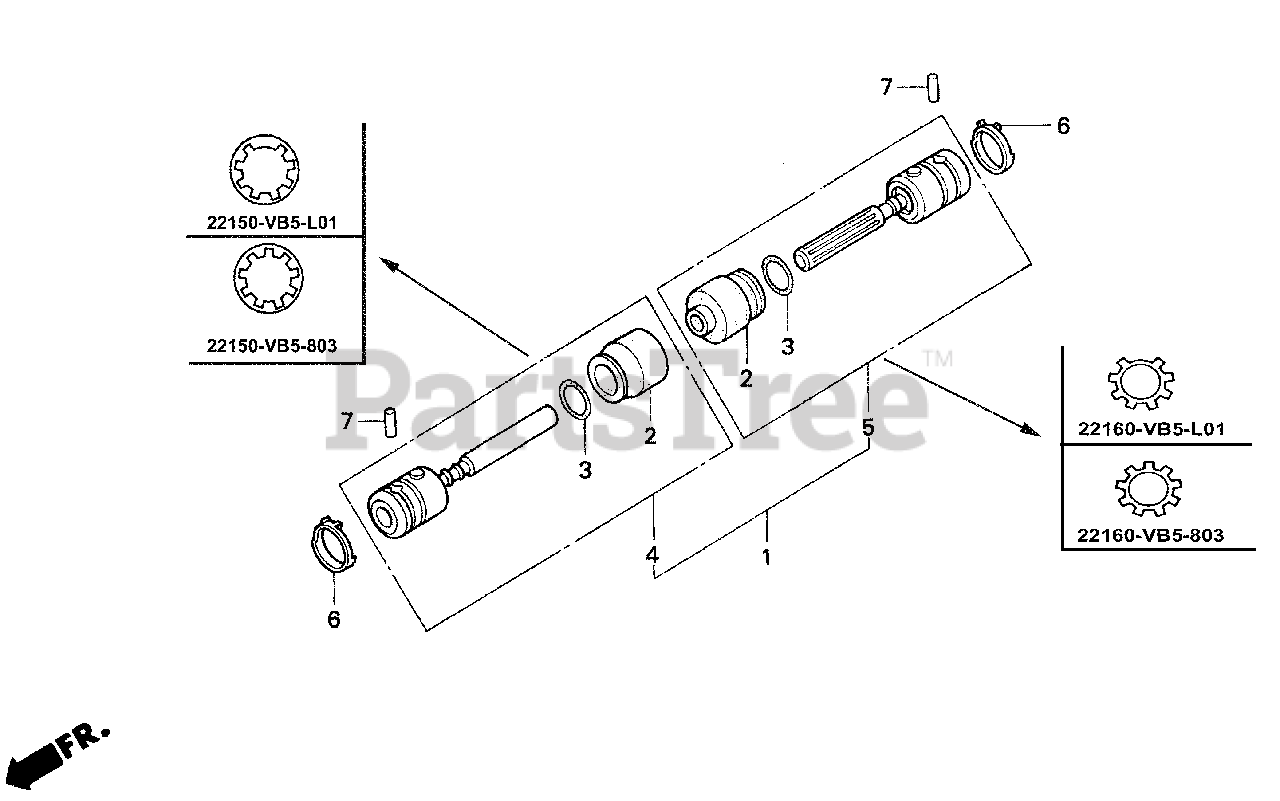

JOINT (SXA,SMA,HXA,HMA) Parts Diagram

  • Title

1

Honda 22100-VA5-802

JOINT ASSY.

$

$

Not available

2

Honda 22123-VA4-801

SEE PART DETAILS - PRI; BOOT, JOINT
(Superseded to 22123-VA4-804)

$5.49

$

Usually ships in 3-6 days

0

3

Honda 22127-VA4-801

RING, SEAL
(Superseded to 22127-VA4-804)

$2.99

$

Usually ships in 3-6 days

0

4

Honda 22150-VA5-802

JOINT SUB-ASSY. (A)

$

$

Not available

5

Honda 22160-VB3-802

SEE PART DETAILS - SUP; JOINT SUB-ASSY. (B)
(Superseded to 22160-VB3-805)

$64.99

$

Usually ships in 3-6 days

0

5

Honda 22160-VB3-803

SEE PART DETAILS - PRI; JOINT SUB-ASSY. (B)
(Superseded to 22160-VB3-805)

$64.99

$

Usually ships in 3-6 days

0

5

Honda 22160-VB3-805

SEE PART DETAILS - PRI; JOINT SUB-ASSY. (B)

$64.99

$

Usually ships in 3-6 days

0

6

Honda 23435-VA2-701

CLIP, CLUTCH SHAFT

$4.49

$

Usually ships in 3-6 days

0

7

Honda 96220-40178

ROLLER (4X17.8)

$1.49

$

In Stock, Qty 9

0
