HR21-5 SDA (HR21-5) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21-5-1019070 - HR21-5-9999999) K2S, 5S REAR WHEEL + REAR ADJUSTING PANEL Parts Diagram

21" Walk-Behind Mower, Made in Japan

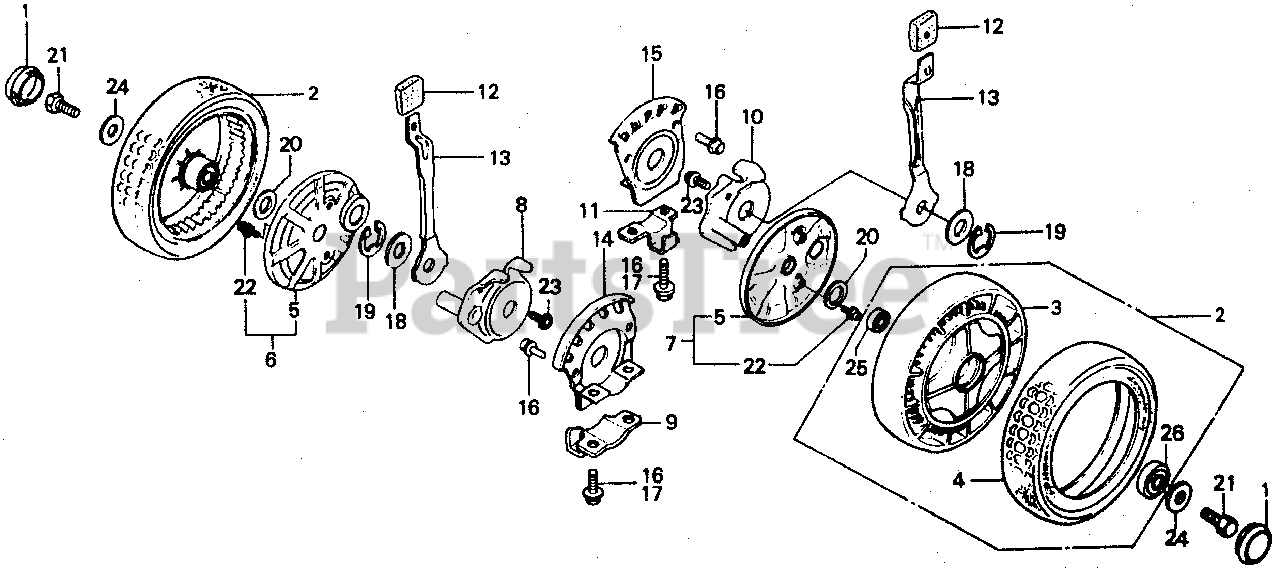

K2S, 5S REAR WHEEL + REAR ADJUSTING PANEL Parts Diagram

  • Title

1

Honda 42755-952-000

CAP, WHEEL

$3.99

$

Usually ships in 3-6 days

0

2

Honda 42800-960-770XC

WHEEL ASSY., RR. *NH31* (MCKINLEY WHITE) (NOT AVAILABLE)

$

$

Not available

3

Honda 42811-960-770XC

HUB, RR. WHEEL *NH31* (MCKINLEY WHITE)

$43.99

$

Usually ships in 3-6 days

0

4

Honda 42861-952-000

TIRE, RR. (8INCH)

$

$

Not available

5

Honda 42865-960-771

COVER, WHEEL (NOT AVAILABLE)

$

$

Not available

6

Honda 42866-960-770

COVER, R. WHEEL

Note: (Optional).

$

$

Not available

7

Honda 42867-960-770

COVER, L. WHEEL

Note: (Optional).

$

$

Not available

8

Honda 42930-960-770

ARM, R. RR. ADJUSTING

$25.99

$

Usually ships in 3-6 days

0

9

Honda 42938-960-770

HOLDER, R. ADJUSTING ARM (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 42940-960-770

ARM, L. RR. ADJUSTING

$23.99

$

Usually ships in 3-6 days

0

11

Honda 42948-960-770

HOLDER, L. ADJUSTING ARM

$

$

Not available

12

Honda 42952-952-000

GRIP, ADJUSTER

$4.99

$

In Stock, only 4 left!

0

13

Honda 42961-952-770

PLATE, RR. ADJUSTING (NOT AVAILABLE)

$17.99

$

Usually ships in 3-6 days

0

14

Honda 42980-960-770

PANEL, R. RR. ADJUSTING

$

$

Not available

15

Honda 42990-960-770

PANEL, L. RR. ADJUSTING

$

$

Not available

16

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 13

0

17

Honda 90022-888-010

BOLT, FLANGE (6X20) (CT200)

$2.99

$

In Stock, only 1 left!

0

18

Honda 90403-952-770

WASHER, PLAIN (22MM)

$2.99

$

In Stock, only 2 left!

0

19

Honda 90405-952-770

E-RING (19MM)

$2.99

$

Usually ships in 3-6 days

0

20

Honda 90451-107-000

WASHER, THRUST (15MM)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 92000-08012-0A

BOLT, HEX. (8X12)

$

$

Currently unavailable

22

Honda 93892-04008-08

SCREW-WASHER (4X8)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

23

Honda 93892-04014-08

SCREW-WASHER (4X14)

$1.49

$

In Stock, only 2 left!

0

24

Honda 94101-08000

WASHER, PLAIN (8MM)

$0.99

$

In Stock, Qty 20+

0

25

Honda 96150-60020-10

BEARING, RADIAL BALL (6002UU)

$15.99

$

Usually ships in 3-6 days

0

26

Honda 96150-62020-10

BEARING, RADIAL BALL (6202UU)

$20.99

$

Usually ships in 3-6 days

0
