HR21-5 SDAM (HR21-5) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21-5-1019070 - HR21-5-9999999) FRONT WHEEL@FRONT ADJUSTING PANEL Parts Diagram

21" Walk-Behind Mower, Made in Japan

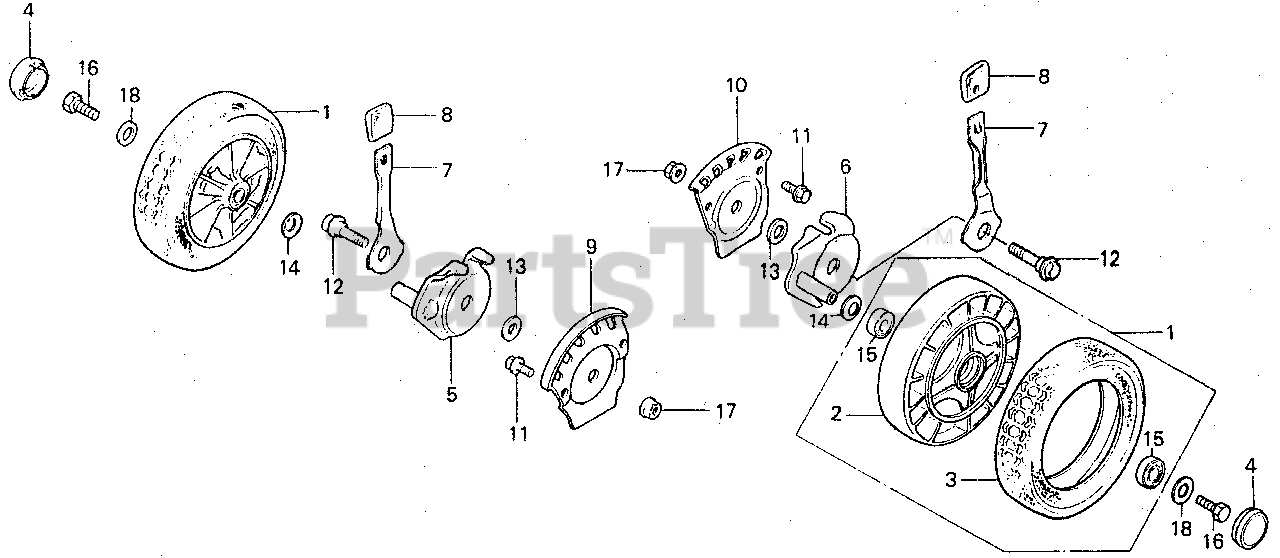

FRONT WHEEL@FRONT ADJUSTING PANEL Parts Diagram

  • Title

1

Honda 42700-960-010XC

SEE PART DETAILS - PRI; WHEEL ASSY., FR. *NH31* (MCKINLEY WHITE) (NOT AVAILABLE)

Note: Use from Frame SN 1126056.

$

$

Not available

1

Honda 42700-960-000XC

SEE PART DETAILS - SUP; WHEEL ASSY., FR. *NH31* (MCKINLEY WHITE)
(Superseded to 42700-960-010XC)

Note: Use up to Frame SN 1126055.

$

$

Not available

2

Honda 42711-960-000XC

HUB, FR. WHEEL *NH31* (MCKINLEY WHITE)

$

$

Not available

3

Honda 42751-952-000

TIRE, FR. (7INCH)

$24.99

$

Usually ships in 3-6 days

0

4

Honda 42755-952-000

CAP, WHEEL

$

$

Not available

5

Honda 42910-960-000

ARM, R. FR. ADJUSTER

$30.99

$

Usually ships in 3-6 days

0

6

Honda 42920-960-000

ARM, L. FR. ADJUSTER (NOT AVAILABLE)

$

$

Not available

7

Honda 42951-960-000

PLATE, FR. ADJUSTING (NOT AVAILABLE)

$20.99

$

Usually ships in 3-6 days

0

8

Honda 42952-952-000

GRIP, ADJUSTER

$6.49

$

In Stock, Qty 8

0

9

Honda 42981-952-000

PANEL, R. FR. ADJUSTING

$17.99

$

Usually ships in 3-6 days

0

10

Honda 42982-952-000

PANEL, L. FR. ADJUSTING

$19.99

$

In Stock, only 1 left!

0

11

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 20+

0

12

Honda 90101-952-000

BOLT, FR. ADJUSTER ARM (NOT AVAILABLE)

$4.99

$

Usually ships in 3-6 days

0

13

Honda 90411-706-000

WASHER (10MM) (NOT AVAILABLE)

$

$

Not available

14

Honda 90455-881-000

SEE PART DETAILS - PRI; SPRING, LEVER

$5.49

$

Usually ships in 3-6 days

0

15

Honda 91102-960-003

SEE PART DETAILS - SUP; BEARING, RADIAL BALL
(Superseded to 91102-960-010)

Note: Use up to Frame SN 1126055.

$17.99

$

Usually ships in 3-6 days

0

15

Honda 91102-960-010

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (PA641-4)

$17.99

$

Usually ships in 3-6 days

0

16

Honda 92000-08012-0A

SEE PART DETAILS - SUP; BOLT, HEX. (8X12)

$

$

Currently unavailable

17

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0483867).

$2.49

$

In Stock, Qty 19

0

18

Honda 94101-08000

SEE PART DETAILS - PRI; WASHER, PLAIN (8MM) (Honda Code 0059097).

$1.49

$

In Stock, Qty 12

0
