HR21 K1 PDA (R21K1) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21K1-1100004 - HR21K1-1127597) CARBURETOR Parts Diagram

21" Walk-Behind Mower, Made in Japan

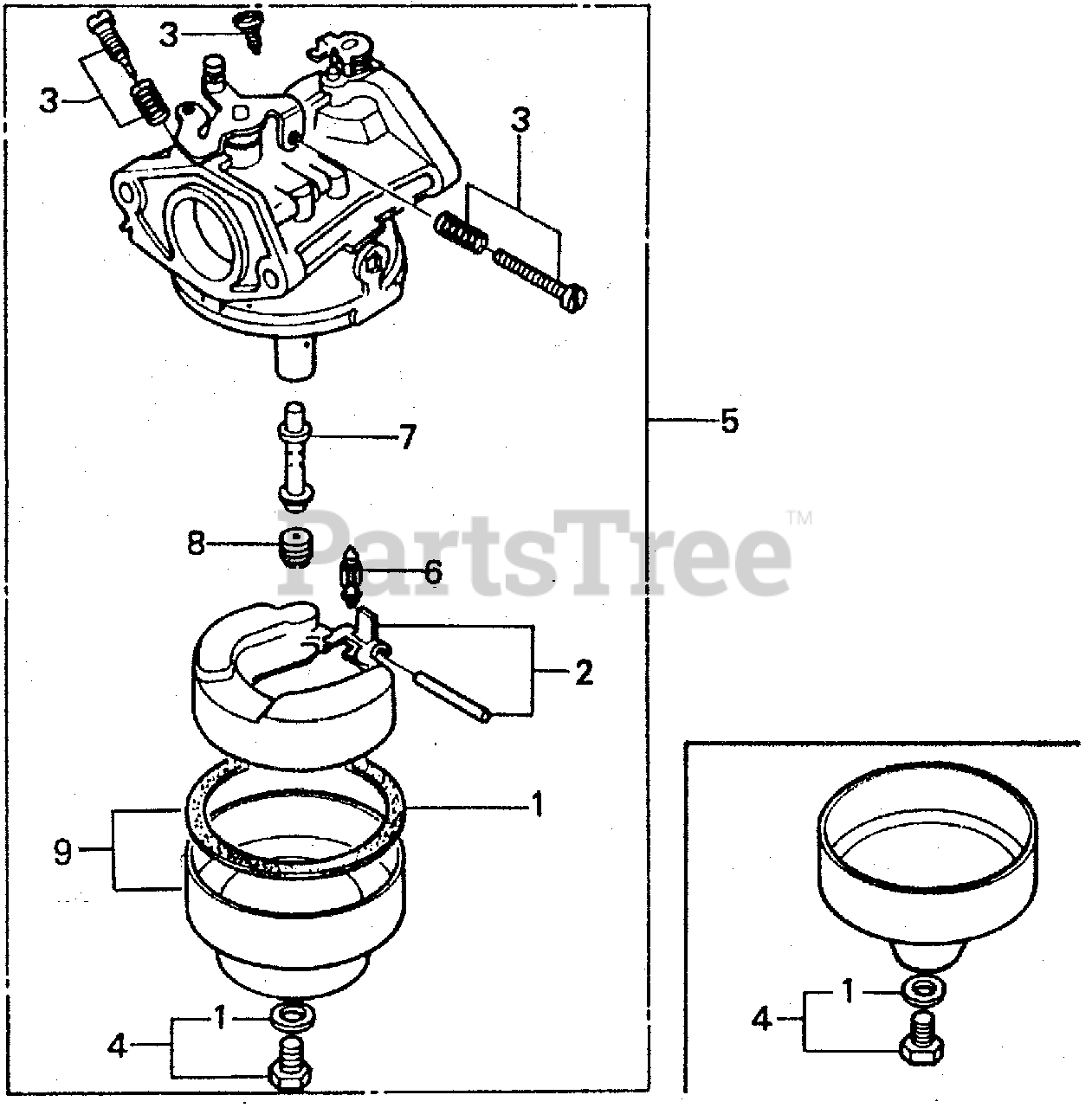

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-883-015

GASKET SET

$12.99

$

In Stock, Qty 20+

0

2

Honda 16013-883-005

FLOAT SET

$35.99

$

In Stock, only 1 left!

0

3

Honda 16016-148-611

SEE PART DETAILS - SUP; SCREW SET A

Note: Use up to Engine SN BB27A C.

$11.99

$

Usually ships in 3-6 days

0

3

Honda 16016-888-005

SCREW SET A

Note: Use from Engine SN BB27A D.

$17.99

$

Usually ships in 3-6 days

0

4

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET B
(Superseded to 16028-ZK7-S91)

$12.99

$

Usually ships in 3-6 days

0

5

Honda 16100-888-065

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BB27A E)
(Superseded to 16100-888-075)

$

$

Not available

6

Honda 16155-883-005

VALVE, FLOAT

$24.99

$

In Stock, only 1 left!

0

7

Honda 16166-888-005

NOZZLE, MAIN (NOT AVAILABLE)

$

$

Not available

8

Honda 99101-124-0650

JET, MAIN (#65)

$11.99

$

Usually ships in 3-6 days

0

9

Honda 16015-896-702

CHAMBER SET, FLOAT

$

$

Not available
