HR21 K1 SDA (R21K1) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21K1-1100004 - HR21K1-1127597) REAR WHEEL (S TYPE) + REAR ADJ. PANEL (S TYPE) Parts Diagram

21" Walk-Behind Mower, Made in Japan

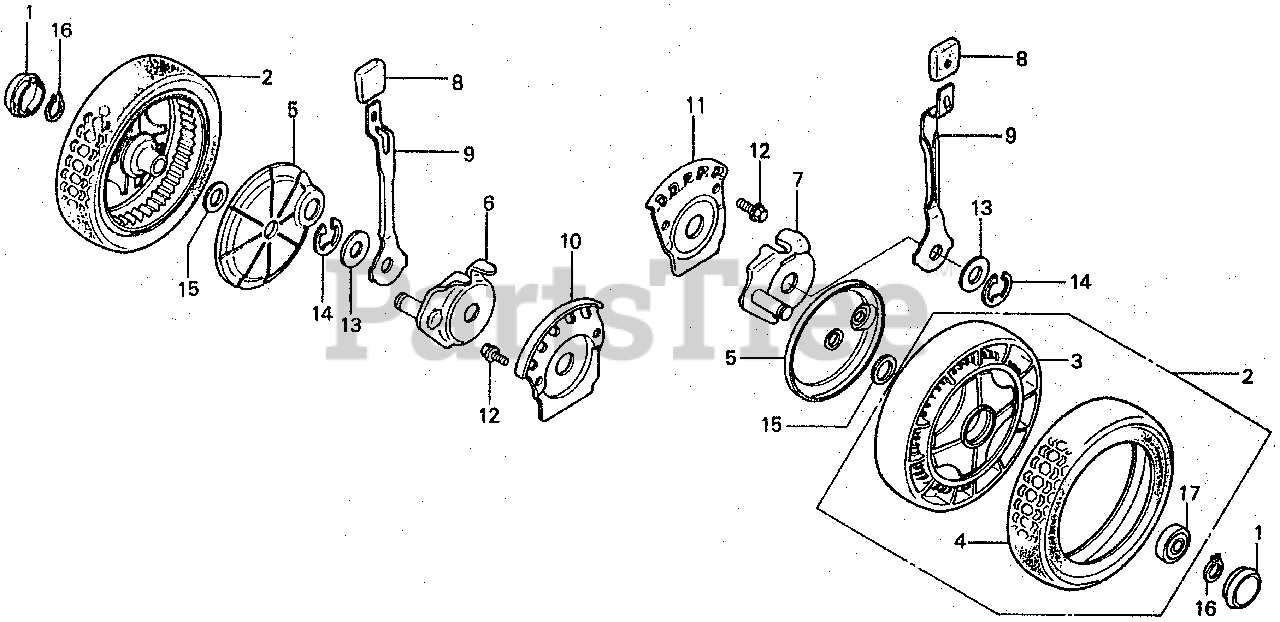

REAR WHEEL (S TYPE) + REAR ADJ. PANEL (S TYPE) Parts Diagram

  • Title

1

Honda 42755-952-000

CAP, WHEEL

$3.99

$

Usually ships in 3-6 days

0

2

Honda 42800-952-772XC

WHEEL ASSY., RR. *NH31* (MCKINLEY WHITE)

$

$

Not available

3

Honda 42811-952-772XC

SEE PART DETAILS - SUP; HUB, RR. WHEEL *NH31* (MCKINLEY WHITE)

Note: Use up to Frame SN 1122425.

$

$

Not available

3

Honda 42811-952-773XC

SEE PART DETAILS - PRI; HUB, RR. WHEEL *NH31* (MCKINLEY WHITE) (NOT AVAILABLE)

Note: Use from Frame SN 1122426.

$

$

Not available

4

Honda 42861-952-000

TIRE, RR. (8INCH)

$

$

Not available

5

Honda 42865-952-770

COVER, WHEEL

$14.99

$

Usually ships in 3-6 days

0

6

Honda 06428-960-305

ADJUSTER KIT, R. RR. HEIGHT

$90.99

$

Usually ships in 3-6 days

0

7

Honda 42940-952-770

ARM, L. RR. ADJUSTING

$

$

Currently unavailable

8

Honda 42952-952-000

GRIP, ADJUSTER

$4.99

$

In Stock, only 4 left!

0

9

Honda 42961-952-770

PLATE, RR. ADJUSTING

$17.99

$

Usually ships in 3-6 days

0

10

Honda 42986-952-770

PANEL, R. RR. ADJUSTING

$

$

Not available

11

Honda 42987-952-770

PANEL, L. RR. ADJUSTING

$

$

Not available

12

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 13

0

13

Honda 90403-952-770

WASHER, PLAIN (22MM)

$2.99

$

In Stock, only 2 left!

0

14

Honda 90405-952-770

E-RING (19MM)

$2.99

$

Usually ships in 3-6 days

0

15

Honda 90451-107-000

WASHER, THRUST (15MM)

$1.99

$

Usually ships in 3-6 days

0

16

Honda 94510-15000

CIRCLIP (OUTER) (15MM)

$1.49

$

In Stock, Qty 9

0

17

Honda 96130-62020-10

BEARING, RADIAL BALL (6202)

$16.99

$

Usually ships in 3-6 days

0
