HR21 K1 SXA (R21K1) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21K1-1100004 - HR21K1-1127597) CRANKSHAFT + CAMSHAFT + PISTON K1 Parts Diagram

21" Walk-Behind Mower, Made in Japan

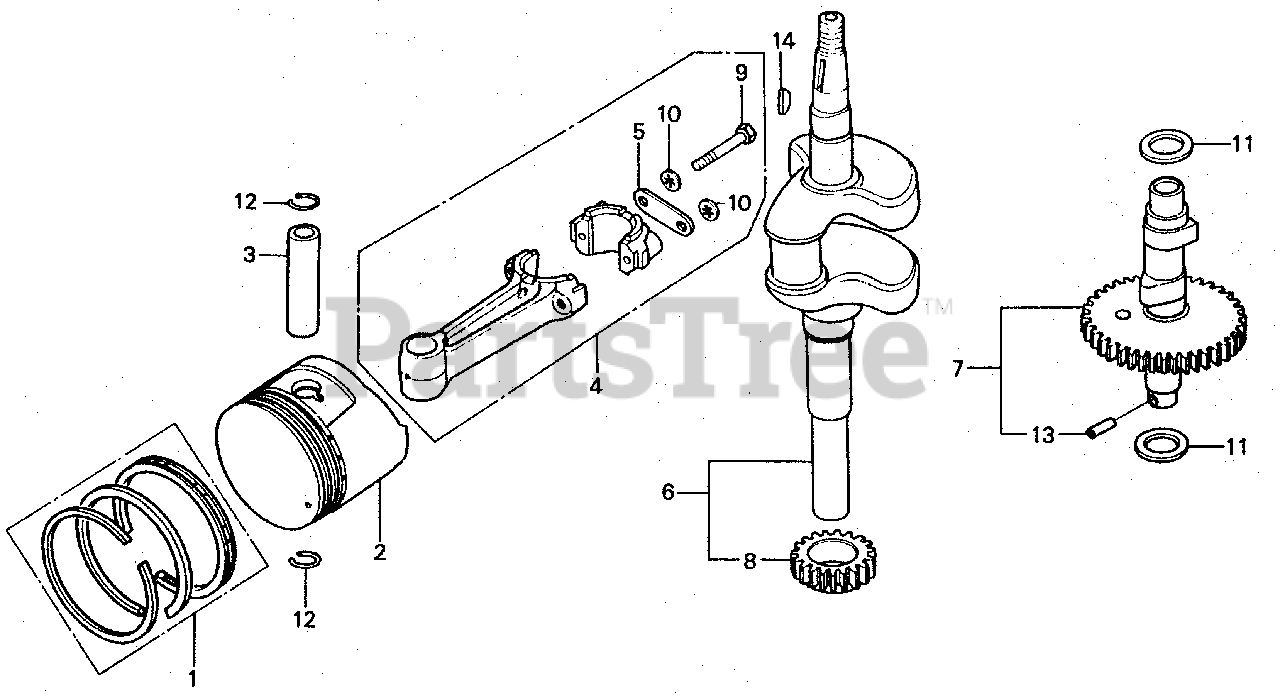

CRANKSHAFT + CAMSHAFT + PISTON K1 Parts Diagram

  • Title

1

Honda 13010-887-000

SEE PART DETAILS - PRI; RING SET, PISTON (STD)

$32.99

$

In Stock, only 1 left!

0

1

Honda 13011-887-000

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25)

$

$

Currently unavailable

1

Honda 13012-887-000

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50)

$

$

Not available

1

Honda 13013-887-000

SEE PART DETAILS - PRI; RING SET, PISTON (0.75) (OS)

$

$

Not available

2

Honda 13101-887-003

PISTON (STD)

$62.99

$

Usually ships in 3-6 days

0

2

Honda 13102-887-000

PISTON (OS 0.25) (OS)

$

$

Not available

2

Honda 13103-887-000

PISTON (OS 0.50) (OS)

$

$

Not available

2

Honda 13104-887-000

PISTON (0.75) (OS)

$

$

Not available

3

Honda 13111-883-000

PIN, PISTON

$10.99

$

In Stock, only 1 left!

0

4

Honda 13200-888-030

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING

$67.99

$

Usually ships in 3-6 days

0

4

Honda 13200-888-335

ROD ASSY., CONNECTING

$

$

Not available

4

Honda 13200-888-505

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING

$

$

Currently unavailable

5

Honda 13281-888-000

WASHER, CONNECTING ROD

$2.49

$

Usually ships in 3-6 days

0

6

Honda 13310-952-000

CRANKSHAFT (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 14110-888-020

CAMSHAFT ASSY.

$

$

Currently unavailable

8

Honda 14311-888-300

GEAR, TIMING

$

$

Not available

9

Honda 90001-883-020

SEE PART DETAILS - PRI; BOLT, CONNECTING ROD (7MM)

$3.99

$

Usually ships in 3-6 days

0

10

Honda 90432-889-003

WASHER, LOCK (7MM)

$1.99

$

Usually ships in 3-6 days

0

11

Honda 90452-883-000

WASHER, THRUST (18MM)

$2.99

$

Usually ships in 3-6 days

0

12

Honda 90551-883-000

SEE PART DETAILS - SUP; CLIP, PISTON PIN (15MM)
(Superseded to 94601-15000)

$1.49

$

Usually ships in 3-6 days

0

12

Honda 94601-15000

SEE PART DETAILS - PRI; CLIP, PISTON PIN (15MM)

$1.49

$

Usually ships in 3-6 days

0

13

Honda 94305-25162

PIN, SPRING (2.5X16)

$1.99

$

Usually ships in 3-6 days

0

14

Honda 94401-25180

KEY, SPECIAL WOODRUFF (25X18)

$1.99

$

In Stock, Qty 12

0
