HR21 K2 PDAM (R21K2) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21K2-1200141 - HR21K2-9999999) HANDLEBAR Parts Diagram

21" Walk-Behind Mower, Made in Japan

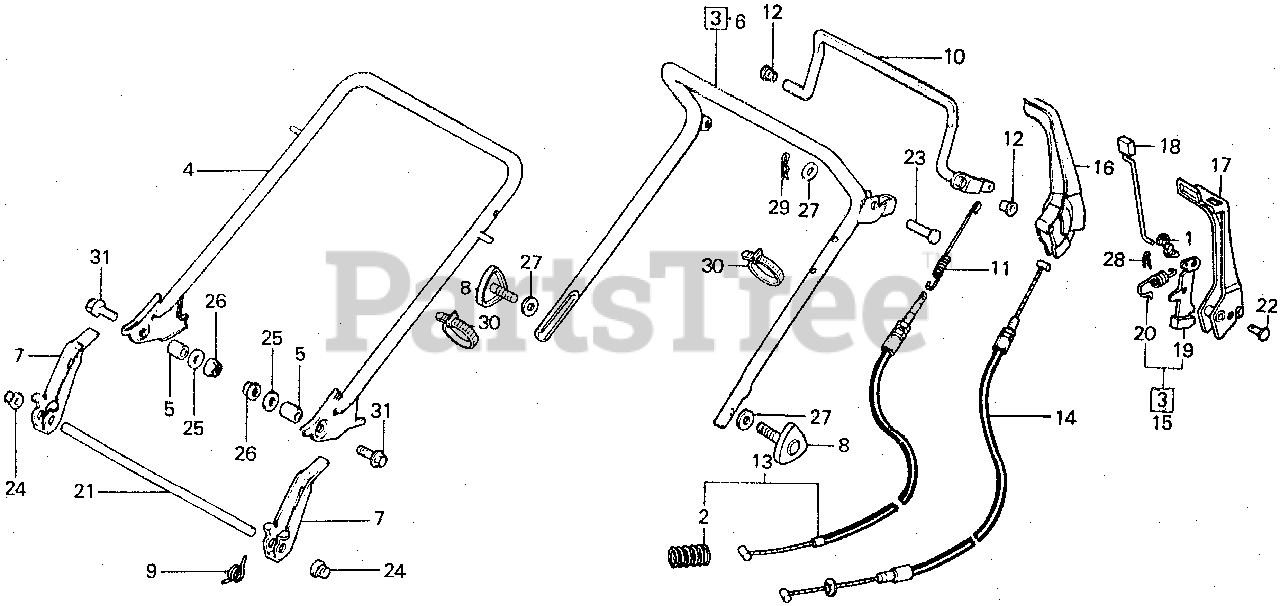

HANDLEBAR Parts Diagram

  • Title

1

Honda 16956-892-000

JOINT, ROD

$7.99

$

In Stock, only 3 left!

0

3

Honda 53010-952-670

SEE PART DETAILS - PRI; HANDLE SET (UPPER)

Note: Use up to Frame SN 1358030.

$

$

Not available

4

Honda 53110-960-000

HANDLEBAR (LOWER)

$

$

Not available

5

Honda 53116-952-000

COLLAR (LOWER)

$4.49

$

Usually ships in 3-6 days

0

6

Honda 53010-952-670

SEE PART DETAILS - PRI; HANDLE SET (UPPER)

Note: Use up to Frame SN 1358030.

$

$

Not available

6

Honda 53150-952-670

HANDLE SET (UPPER)

Note: Use from Frame SN 1358031.

$

$

Not available

6

Honda 53150-960-000

SEE PART DETAILS - SUP; HANDLE SET (UPPER)
(Superseded to 53010-952-670)

Note: Use up to Frame SN 1358030.

$

$

Not available

7

Honda 53161-952-000

LEVER, LOCK

$19.99

$

Usually ships in 3-6 days

0

8

Honda 53175-960-000

SEE PART DETAILS - PRI; GRIP, HANDLE JOINT

$21.99

$

Usually ships in 3-6 days

0

9

Honda 53179-952-000

SPRING, HANDLE (NOT AVAILABLE)

$4.99

$

Usually ships in 3-6 days

0

14

Honda 54530-960-000

CABLE, ROTO-STOP CLUTCH

$

$

Not available

15

Honda 75011-963-000

SEE PART DETAILS - PRI; LEVER SET, LOCK

Note: Use up to Frame SN 1358030.

$

$

Currently unavailable

17

Honda 75161-963-000

LEVER, ROTO-STOP (NOT AVAILABLE)

$

$

Currently unavailable

18

Honda 75165-963-000

ROD, RATCHET PUSH (NOT AVAILABLE)

$9.49

$

Usually ships in 3-6 days

0

19

Honda 75166-963-000

SEE PART DETAILS - SUP; LEVER, LOCK

Note: Use up to Frame SN 1358030.

$

$

Not available

19

Honda 75166-963-010

SEE PART DETAILS - SUP; LEVER, LOCK
(Superseded to 75166-963-020)

Note: Use from Frame SN 1358031 to 1379924.

$

$

Not available

19

Honda 75166-963-020

SEE PART DETAILS - PRI; LEVER, LOCK

Note: Use from Frame SN 1379925.

$

$

Not available

20

Honda 75168-963-000

SEE PART DETAILS - SUP; SPRING, RATCHET RETURN
(Superseded to 75168-963-010)

Note: Use up to Frame SN 1358030.

$3.49

$

Usually ships in 3-6 days

0

20

Honda 75168-963-010

SEE PART DETAILS - PRI; SPRING, RATCHET RETURN

Note: Use from Frame SN 1358031.

$3.49

$

Usually ships in 3-6 days

0

21

Honda 76132-952-000

SHAFT, SHIELD

$

$

Not available

22

Honda 77203-425-000

PIN, SEAT HINGE

$5.49

$

Usually ships in 3-6 days

0

23

Honda 90106-960-000

PIN, CLUTCH LEVER (NOT AVAILABLE)

$

$

Not available

24

Honda 90406-952-000

NUT (8MM)

$1.99

$

Usually ships in 3-6 days

0

25

Honda 90430-657-000

WASHER (8MM) (Honda Code 0612077).

$9.49

$

In Stock, only 2 left!

0

26

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

27

Honda 94101-08000

SEE PART DETAILS - PRI; WASHER, PLAIN (8MM) (Honda Code 0059097).

$1.49

$

In Stock, Qty 20+

0

28

Honda 94251-06000

PIN, LOCK (6MM) (Honda Code 0058487).

$1.49

$

In Stock, Qty 20+

0

29

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 20+

0

30

Honda 95014-62200

BAND B2, CABLE HARNESS

$2.49

$

Usually ships in 3-6 days

0

31

Honda 95700-08032-00

BOLT, FLANGE (8X32)
(Superseded to 95701-08032-00)

$1.99

$

In Stock, Qty 6

0

31

Honda 95701-08032-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X32) (Honda Code 2751725).

$1.99

$

In Stock, Qty 6

0
