HR21 K2 SXA (R21K2) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21K2-1200141 - HR21K2-9999999) 21K2S FLYWHEEL + C.D.I. UNIT Parts Diagram

21" Walk-Behind Mower, Made in Japan

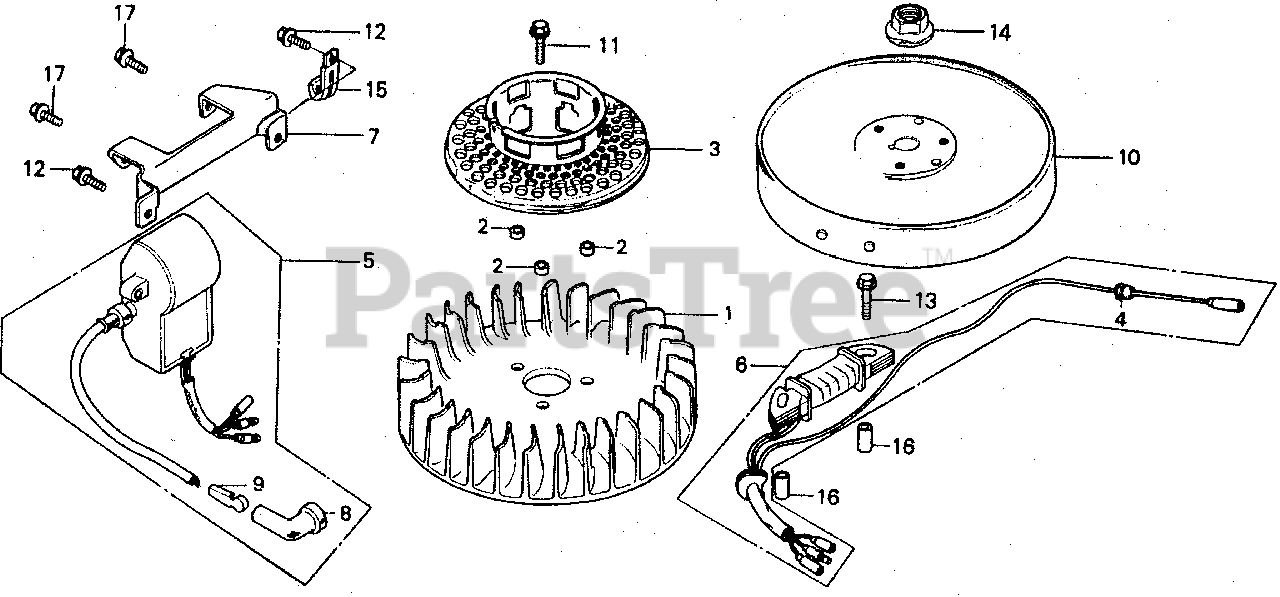

21K2S FLYWHEEL + C.D.I. UNIT Parts Diagram

  • Title

1

Honda 19511-887-030

FAN, COOLING

$

$

Not available

2

Honda 19512-883-000

COLLAR, FAN

$2.49

$

In Stock, Qty 5

0

3

Honda 28451-887-020

SEE PART DETAILS - SUP; PULLEY, STARTER
(Superseded to 28451-887-030)

$30.99

$

Usually ships in 3-6 days

0

3

Honda 28451-887-030

SEE PART DETAILS - PRI; PULLEY, STARTER

$30.99

$

Usually ships in 3-6 days

0

4

Honda 30569-888-000

GROMMET, PRIMARY WIRE (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 30580-952-753

MODULE, IGNITION CONTROL (CDI)

$

$

Currently unavailable

5

Honda 30580-952-754

MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)

$

$

Not available

6

Honda 30590-952-753

COIL ASSY., EXCITER (NOT AVAILABLE)

$

$

Not available

7

Honda 30686-952-750

STAY, IGNITION CONTROL MODULE (CDI) (NOT AVAILABLE)

$10.99

$

Usually ships in 3-6 days

0

8

Honda 30701-888-003

CAP, IGNITION
(Superseded to 30701-888-014)

$

$

Not available

8

Honda 30701-888-004

CAP, IGNITION (TOYO)
(Superseded to 30701-888-014)

$

$

Not available

9

Honda 30702-888-003

TERMINAL, PLUG

$9.49

$

Usually ships in 3-6 days

0

10

Honda 31100-883-751

FLYWHEEL (C.D.I.) (NOT AVAILABLE)

$

$

Not available

11

Honda 95701-06016-08

BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 5

0

12

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 11

0

13

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200)

$3.99

$

In Stock, Qty 5

0

14

Honda 90201-878-003

NUT, SPECIAL (14MM)

$7.99

$

In Stock, only 2 left!

0

15

Honda 91405-671-000

CLIP, WIRE

$12.99

$

Usually ships in 3-6 days

0

16

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 14

0

17

Honda 95701-06012-08

BOLT, FLANGE (6X12)

$2.49

$

Usually ships in 3-6 days

0
