HR21 K2 SXA (R21K2) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21K2-1200141 - HR21K2-9999999) 21K2S TENSIONER ARM + V-BELT Parts Diagram

21" Walk-Behind Mower, Made in Japan

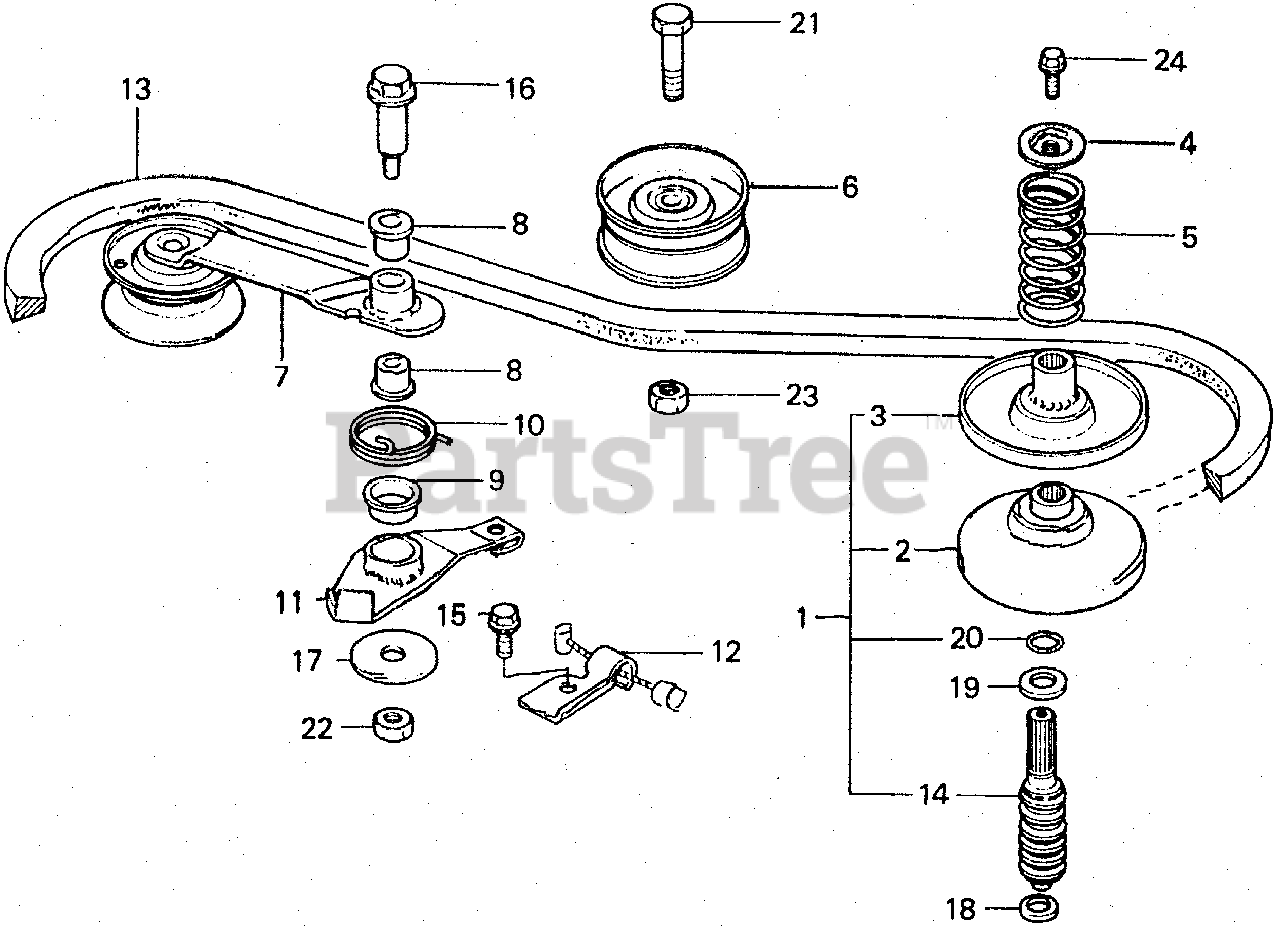

21K2S TENSIONER ARM + V-BELT Parts Diagram

  • Title

1

Honda 06221-960-305

PULLEY KIT, DRIVE (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

2

Honda 22110-960-771

FACE, DRIVEN

$30.99

$

Usually ships in 3-6 days

0

3

Honda 22120-960-770

FACE, MOVABLE DRIVEN

$24.99

$

Usually ships in 3-6 days

0

4

Honda 22124-952-770

SEAT, SPRING (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 22125-952-770

SPRING, DRIVEN FACE (NOT AVAILABLE)

$6.99

$

Usually ships in 3-6 days

0

6

Honda 04401-960-770

ROLLER

$

$

Not available

7

Honda 22520-960-770

ARM, TENSIONER (NOT AVAILABLE)

$

$

Not available

8

Honda 22524-952-770

BUSH, TENSIONER ARM (NOT AVAILABLE)

$9.99

$

Usually ships in 3-6 days

0

9

Honda 22525-952-770

BUSH, CHANGE ARM

$

$

Not available

10

Honda 22526-952-770

SPRING, TENSIONER ARM (NOT AVAILABLE)

$5.49

$

Usually ships in 3-6 days

0

11

Honda 22531-960-770

ARM, CHANGE (NOT AVAILABLE)

$13.99

$

Usually ships in 3-6 days

0

12

Honda 22536-960-770

HOLD, CHANGE WIRE

$

$

Not available

13

Honda 23161-952-771

V-BELT (35)

$34.99

$

Usually ships in 3-6 days

0

14

Honda 23411-960-770

GEAR, DRIVE

$

$

Not available

15

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 11

0

16

Honda 90104-952-770

BOLT, TENSIONER ARM

$5.49

$

Usually ships in 3-6 days

0

17

Honda 90401-952-770

WASHER, PLAIN (8MM) (NOT AVAILABLE)

$

$

Currently unavailable

18

Honda 90443-844-000

WASHER (8MM) (NOT AVAILABLE)

$0.99

$

Usually ships in 3-6 days

0

19

Honda 90459-107-000

WASHER, THRUST (12MM)

$1.99

$

Usually ships in 3-6 days

0

20

Honda 91205-952-771

O-RING (11.7X1.2) (NOT AVAILABLE)

$

$

Not available

21

Honda 92101-10028-0A

BOLT, HEX. (10X28)

$3.49

$

Usually ships in 3-6 days

0

22

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 20+

0

23

Honda 94001-10000-0S

SEE PART DETAILS - PRI; NUT, HEX. (10MM)

$1.99

$

In Stock, only 1 left!

0

24

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0
