HR21 K2 SXAM (R21K2) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21K2-1200141 - HR21K2-9999999) CARBURETOR Parts Diagram

21" Walk-Behind Mower, Made in Japan

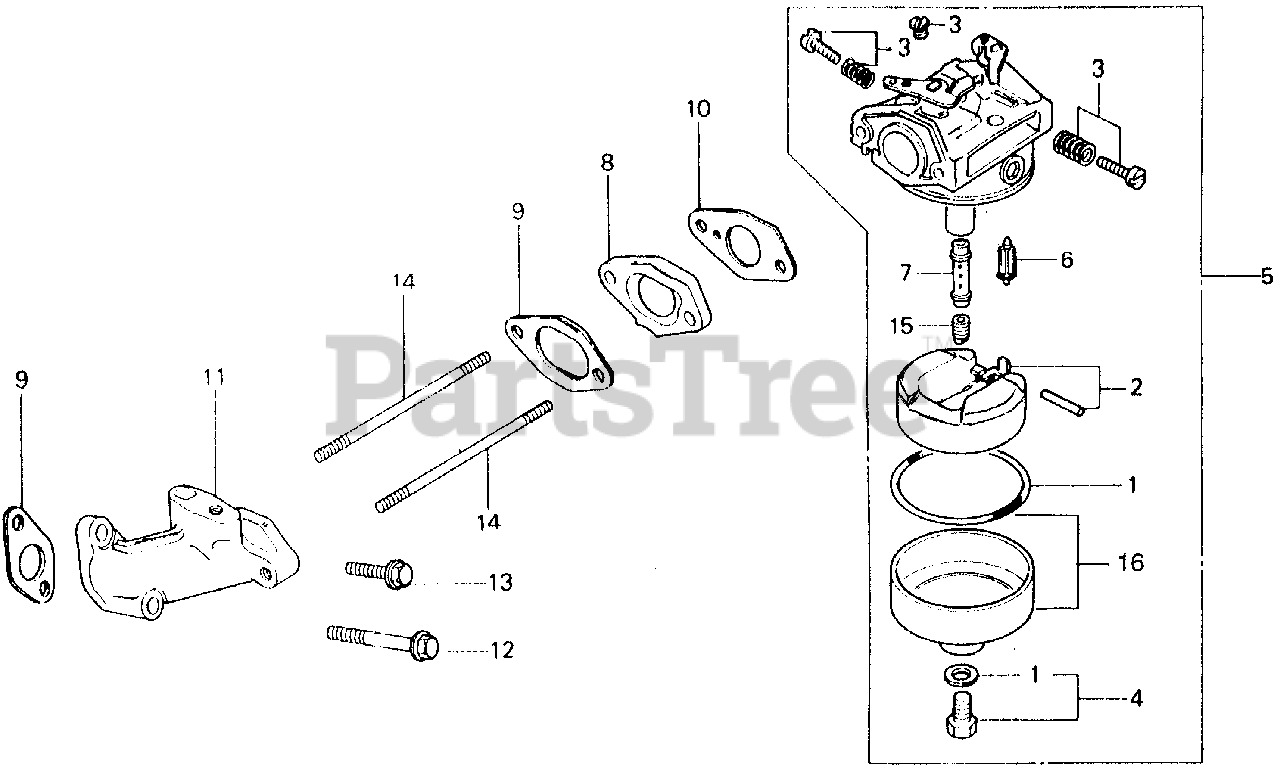

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-883-015

SEE PART DETAILS - PRI; GASKET SET (Honda Code 3088416).

Note: Use up to Engine SN BB27A D.

$12.99

$

In Stock, Qty 20+

0

1

Honda 16010-883-015

SEE PART DETAILS - PRI; GASKET SET (Honda Code 3088416).

Note: Use from Engine SN BB27A E.

$12.99

$

In Stock, Qty 20+

0

2

Honda 16013-883-005

FLOAT SET (Honda Code 0636258).

$35.99

$

In Stock, only 1 left!

0

3

Honda 16016-888-005

SCREW SET A (Honda Code 0999631).

Note: Use up to Engine SN BB27A D.

$17.99

$

Usually ships in 3-6 days

0

3

Honda 16016-894-005

SCREW SET A (CARBURETOR NO.) (NOT AVAILABLE)

Note: Use from Engine SN BB27A E.

$

$

Currently unavailable

4

Honda 16028-883-005

SEE PART DETAILS - SUP; SCREW SET B (Honda Code 0636274).

$12.99

$

Usually ships in 3-6 days

0

5

Honda 16100-888-075

CARBURETOR ASSY.

$

$

Not available

6

Honda 16155-883-005

SEE PART DETAILS - PRI; VALVE, FLOAT (Honda Code 0636282).

$24.99

$

In Stock, only 1 left!

0

7

Honda 16166-888-005

NOZZLE, MAIN (Honda Code 0671925).

$

$

Not available

15

Honda 99101-124-0600

JET, MAIN (#60) (Honda Code 0635474). (CARBURETOR NO.)

Note: (Optional).

$11.99

$

In Stock, Qty 7

0

15

Honda 99101-124-0620

JET, MAIN (#62) (Honda Code 0635482). (CARBURETOR NO.)

Note: (Optional).

$10.99

$

In Stock, only 1 left!

0

15

Honda 99101-124-0650

JET, MAIN (#65) Use up to Engine SN BB30A D.

$11.99

$

Usually ships in 3-6 days

0

16

Honda 16015-896-702

SEE PART DETAILS - PRI; CHAMBER SET, FLOAT (Honda Code 5043088).

Note: Use from Engine SN BB27A E.

$

$

Not available

16

Honda 16015-896-702

SEE PART DETAILS - PRI; CHAMBER SET, FLOAT (Honda Code 5043088).

Note: Use up to Engine SN BB27A D.

$

$

Not available
