HR21 K2 SXAM (R21K2) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21K2-1200141 - HR21K2-9999999) DRIVESHAFT@PINION GEAR Parts Diagram

21" Walk-Behind Mower, Made in Japan

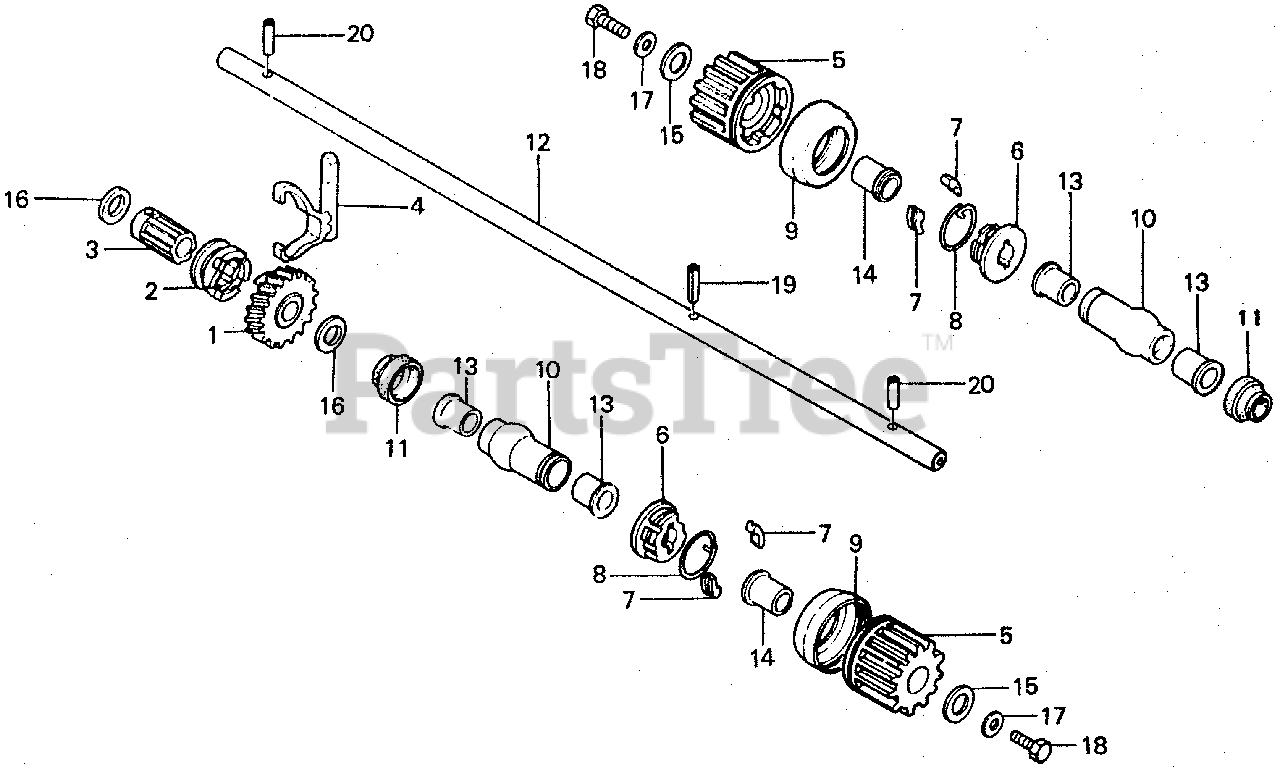

DRIVESHAFT@PINION GEAR Parts Diagram

  • Title

1

Honda 23421-960-710

GEAR, DRIVEN

$56.99

$

Usually ships in 3-6 days

0

2

Honda 23431-VA9-H40

SEE PART DETAILS - PRI; CLUTCH, DRIVEN

$34.99

$

Usually ships in 3-6 days

0

3

Honda 23432-960-770

SHAFT, CLUTCH

$

$

Not available

4

Honda 23440-952-770

SHAFT, SHIFT

$26.99

$

Usually ships in 3-6 days

0

5

Honda 23511-952-772

GEAR, PINION (NOT AVAILABLE)

$

$

Not available

6

Honda 23512-952-771

HOLDER, RATCHET (NOT AVAILABLE)

$

$

Not available

7

Honda 23513-952-770

RATCHET

$8.99

$

Usually ships in 3-6 days

0

8

Honda 23514-960-770

SPRING, RATCHET RETURN

$4.99

$

In Stock, only 2 left!

0

9

Honda 23515-960-770

CAP, PINION GEAR (NOT AVAILABLE)

$13.99

$

Usually ships in 3-6 days

0

10

Honda 42943-952-771

BOSS, PIPE

$19.99

$

Usually ships in 3-6 days

0

11

Honda 42944-952-772

DUST SEAL (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 44311-960-770

DRIVESHAFT (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 44327-960-000

BUSH, DRIVESHAFT (NOT AVAILABLE)

$7.99

$

Usually ships in 3-6 days

0

14

Honda 44328-952-000

BUSH, PINION GEAR

$10.99

$

Usually ships in 3-6 days

0

15

Honda 90452-708-000

WASHER (12MM)

$1.99

$

Usually ships in 3-6 days

0

16

Honda 90459-107-000

WASHER, THRUST (12MM)

$1.99

$

Usually ships in 3-6 days

0

17

Honda 90486-028-000

WASHER, SPARK ADVANCER SETTING

$3.49

$

Usually ships in 3-6 days

0

18

Honda 92101-06012-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X12) (Honda Code 3591500).

$1.99

$

Usually ships in 3-6 days

0

19

Honda 94305-50182

PIN, SPRING (5X18)

$3.49

$

Usually ships in 3-6 days

0

20

Honda 96220-40178

ROLLER (4X17.8)

$1.49

$

In Stock, Qty 20+

0
