HR21 SXA (HR21) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21-1000001 - HR21-1051093) GEAR CASE + CLUTCH ARM Parts Diagram

21" Walk-Behind Mower, Made in Japan

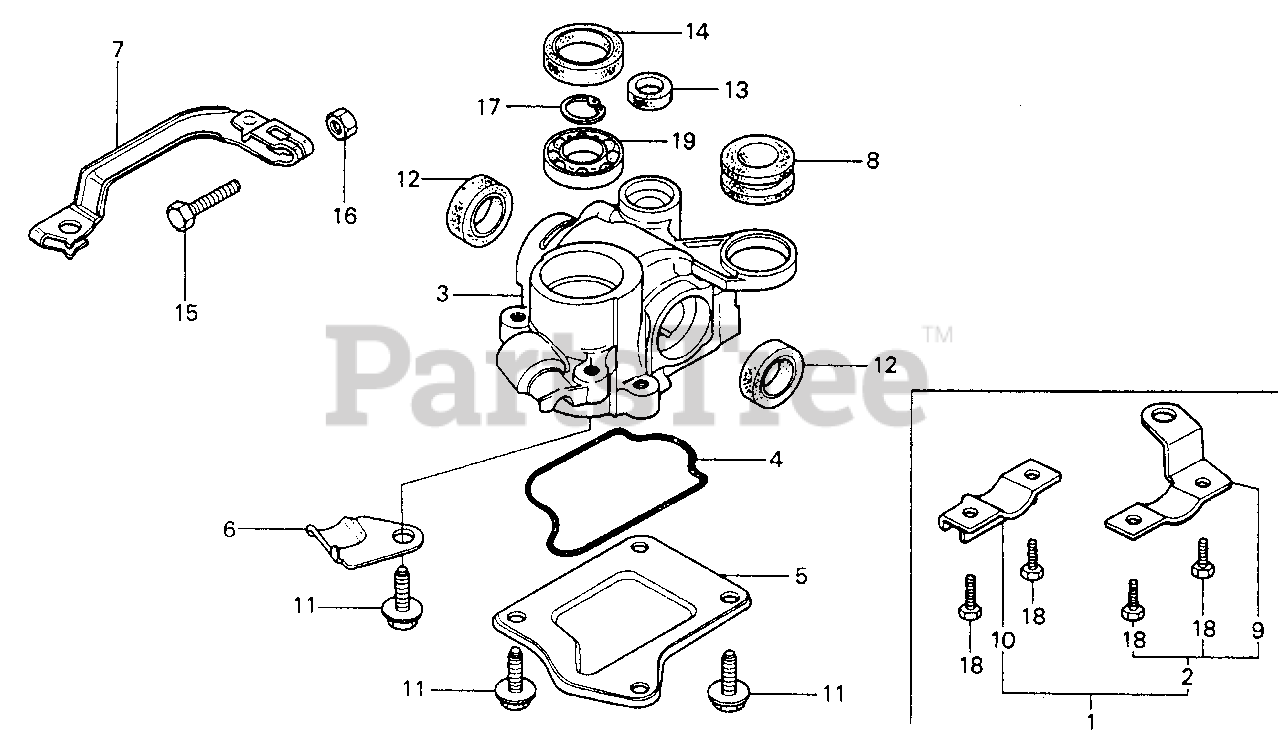

GEAR CASE + CLUTCH ARM Parts Diagram

  • Title

1

Honda 06231-952-308

BRACKET KIT, STOPPER

$

$

Not available

2

Honda 06232-952-308

STOPPER KIT, CASE

$

$

Not available

3

Honda 215A1-960-772

SEE PART DETAILS - PRI; CASE, GEAR (UPPER)

$98.99

$

Usually ships in 3-6 days

0

3

Honda 21511-960-771

SEE PART DETAILS - SUP; CASE, GEAR (UPPER)
(Superseded to 215A1-960-772)

$98.99

$

Usually ships in 3-6 days

0

4

Honda 21581-952-770

O-RING, CASE

$7.99

$

Usually ships in 3-6 days

0

5

Honda 21611-952-770

COVER, GEAR CASE

$

$

Not available

6

Honda 22535-952-770

HOLDER, WIRE

$

$

Currently unavailable

7

Honda 23436-952-770

SEE PART DETAILS - SUP; ARM, CLUTCH
(Superseded to 23436-952-771)

$12.99

$

Usually ships in 3-6 days

0

7

Honda 23436-952-771

SEE PART DETAILS - PRI; ARM, CLUTCH

$12.99

$

Usually ships in 3-6 days

0

8

Honda 23438-952-770

MOUNT, RUBBER (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 23439-952-305

STOPPER, CASE

$

$

Currently unavailable

10

Honda 42985-960-770

BRACKET, L. PANEL (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 20+

0

12

Honda 91201-148-003

SEE PART DETAILS - SUP; OIL SEAL (12X22X5)

$

$

Currently unavailable

12

Honda 91201-965-000

SEE PART DETAILS - PRI; OIL SEAL (12X22X5)

$6.49

$

Usually ships in 3-6 days

0

13

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5)

$5.99

$

In Stock, only 2 left!

0

13

Honda 91203-952-771

SEE PART DETAILS - SUP; OIL SEAL (8X14X5)
(Superseded to 91201-ZE9-003)

$5.99

$

In Stock, only 2 left!

0

14

Honda 91204-952-771

OIL SEAL (18X28X6)

$

$

Currently unavailable

14

Honda 91204-952-772

OIL SEAL (18X38X6) (NOT AVAILABLE)

$9.49

$

Usually ships in 3-6 days

0

15

Honda 92101-06020-0A

BOLT, HEX. (6X20)

$1.49

$

Usually ships in 3-6 days

0

16

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

16

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 20+

0

17

Honda 94520-28000

CIRCLIP (INNER) (28MM)

$1.99

$

In Stock, only 4 left!

0

18

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)

$2.49

$

In Stock, Qty 20+

0

19

Honda 96100-60010-00

BEARING, RADIAL BALL (6001)

$25.99

$

Usually ships in 3-6 days

0
