HR215 SMA (MZAM) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZAM-6000001 - MZAM-6200000) THROTTLE LEVER Parts Diagram

21" Walk-Behind Mower, Made in USA

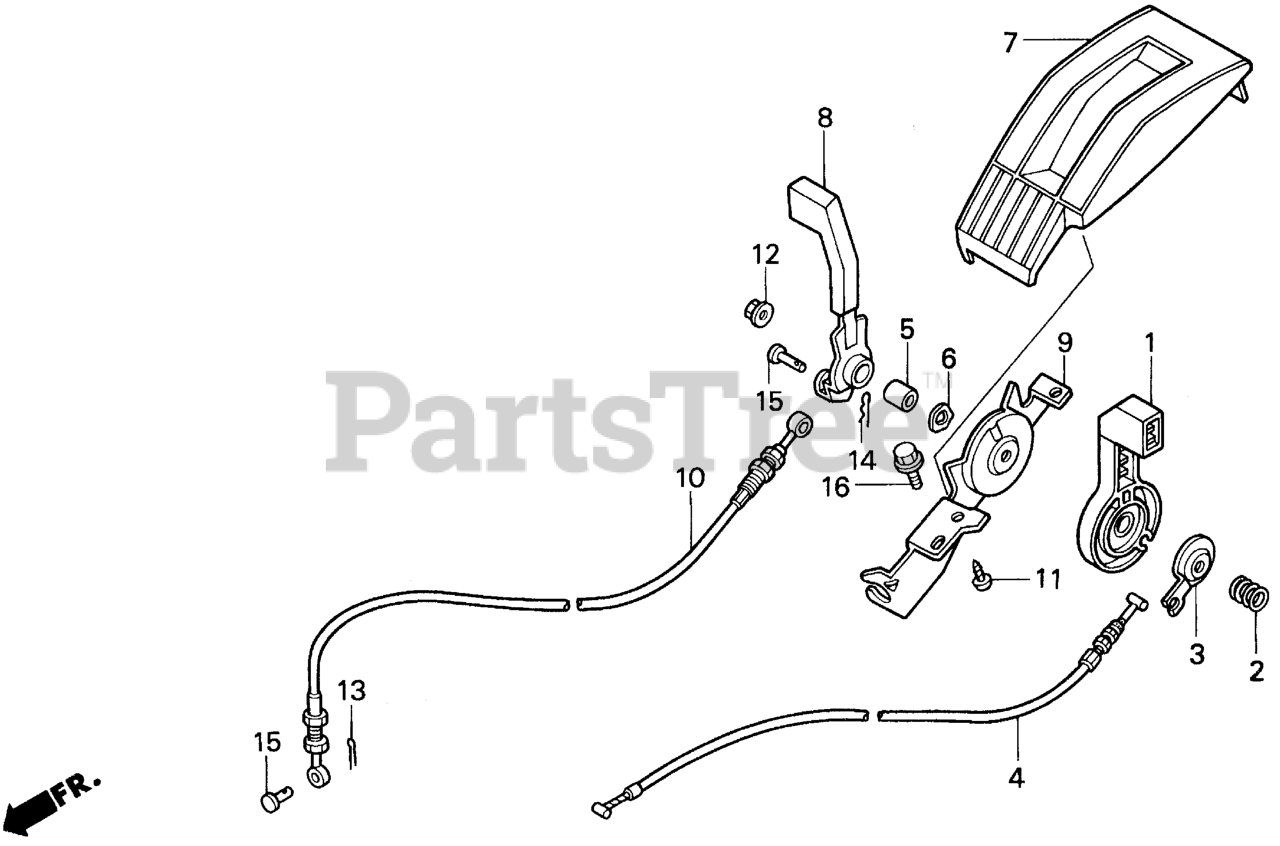

THROTTLE LEVER Parts Diagram

  • Title

1

Honda 17851-VA3-P00

LEVER, THROTTLE

$

$

Not available

2

Honda 17858-VA4-000

SPRING, THROTTLE LEVER

$4.99

$

In Stock, only 1 left!

0

3

Honda 17859-VA3-800

SEAT, SPRING

$6.49

$

In Stock, only 2 left!

0

4

Honda 17910-VA3-S01

SEE PART DETAILS - PRI; CABLE, THROTTLE

$27.99

$

In Stock, only 3 left!

0

5

Honda 19612-896-700

COLLAR, RECOIL STARTER

$

$

Not available

6

Honda 47363-671-300

WASHER, WAVE (11MM)

$10.99

$

Usually ships in 3-6 days

0

7

Honda 54231-VA3-800

COVER, CONTROL

$36.99

$

In Stock, only 1 left!

0

8

Honda 54311-VA3-J00

LEVER, CHANGE

$

$

Not available

9

Honda 54315-VA3-J00

PLATE, STOPPER

$

$

Not available

10

Honda 54520-VA3-J01

CABLE, CHANGE

$40.99

$

In Stock, only 1 left!

0

11

Honda 93901-35210

SCREW, TAPPING (5X12)

$0.99

$

In Stock, only 4 left!

0

12

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

13

Honda 94201-16120

PIN, COTTER (1.6X12)

$1.49

$

In Stock, Qty 7

0

14

Honda 94251-06000

PIN, LOCK (6MM) (Honda Code 0058487).

$1.49

$

In Stock, Qty 10

0

15

Honda 95015-51000

PIN A, BRAKE ROD JOINT

$

$

Not available

16

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

$1.99

$

In Stock, Qty 20+

0
