HR215 SMA (MZAM) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZAM-6000001 - MZAM-6200000) TRANSMISSION Parts Diagram

21" Walk-Behind Mower, Made in USA

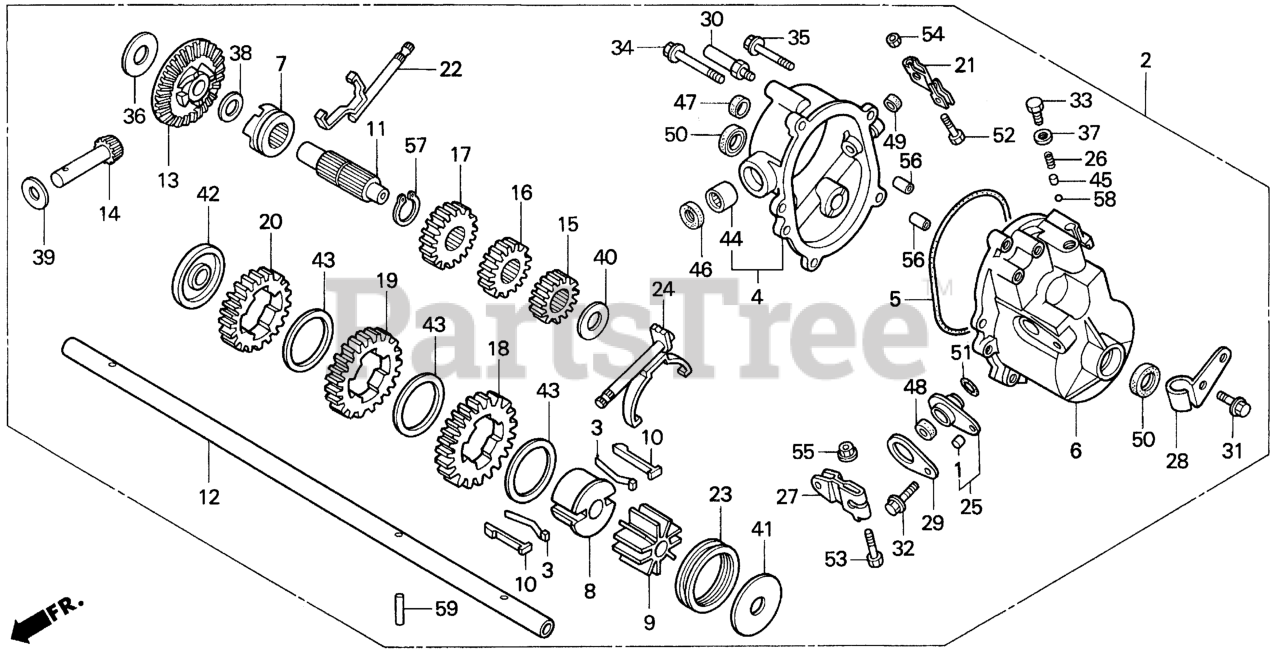

TRANSMISSION Parts Diagram

  • Title

1

Honda 19512-883-000

SEE PART DETAILS - PRI; COLLAR, FAN

Note: Use up to Frame SN 6102737.

$2.49

$

In Stock, only 3 left!

0

2

Honda 20001-VA3-J00

TRANSMISSION ASSY.

Note: Use up to Frame SN 6102737.

$

$

Currently unavailable

3

Honda 21218-VA3-J00

SPRING, CHANGE KEY

Note: Use up to Frame SN 6102737.

$

$

Not available

4

Honda 21100-VA3-J02

SEE PART DETAILS - PRI; CASE ASSY., R. TRANSMISSION

Note: Use up to Frame SN 6102737.

$65.99

$

Usually ships in 3-6 days

0

5

Honda 21592-VA3-801

SEE PART DETAILS - SUP; O-RING, TRANSMISSION CASE

Note: Use up to Frame SN 6102737.

$6.49

$

Usually ships in 3-6 days

0

6

Honda 21200-VA3-J02

CASE ASSY., L. TRANSMISSION

Note: Use up to Frame SN 6102737.

$103.99

$

Usually ships in 3-6 days

0

7

Honda 22549-VA3-J00

CLUTCH, DRIVEN

Note: Use up to Frame SN 6102737.

$

$

Not available

8

Honda 23214-VA3-J01

BOSS, CHANGE SHAFT

Note: Use up to Frame SN 6102737.

$76.99

$

Usually ships in 3-6 days

0

9

Honda 23216-VA3-J00

HOLDER, KEY

Note: Use up to Frame SN 6102737.

$

$

Not available

10

Honda 23217-VA3-J00

KEY, CHANGE SHAFT

Note: Use up to Frame SN 6102737.

$22.99

$

Usually ships in 3-6 days

0

11

Honda 23221-VA3-J00

COUNTERSHAFT

Note: Use up to Frame SN 6102737.

$33.99

$

Usually ships in 3-6 days

0

12

Honda 23251-VA3-J00

SHAFT, FINAL

Note: Use up to Frame SN 6102737.

$

$

Not available

13

Honda 23323-VA3-J00

SEE PART DETAILS - PRI; GEAR, BEVEL (44T)

Note: Use up to Frame SN 6102737.

$107.99

$

Usually ships in 3-6 days

0

14

Honda 23411-VB3-801

PINION, BEVEL

Note: Use up to Frame SN 6102737.

$48.99

$

Usually ships in 3-6 days

0

15

Honda 23421-VA3-J01

GEAR, FIRST DRIVE (14T)

Note: Use up to Frame SN 6102737.

$

$

Not available

16

Honda 23422-VA3-J01

GEAR, SECOND DRIVE (18T)

Note: Use up to Frame SN 6102737.

$29.99

$

Usually ships in 3-6 days

0

17

Honda 23423-VA3-J01

GEAR, THIRD DRIVE (20T)

Note: Use up to Frame SN 6102737.

$29.99

$

Usually ships in 3-6 days

0

18

Honda 23431-VA3-J01

GEAR, FIRST DRIVEN (33T)

Note: Use up to Frame SN 6102737.

$

$

Not available

19

Honda 23432-VA3-J01

GEAR, SECOND DRIVEN (29T)

Note: Use up to Frame SN 6102737.

$59.99

$

Usually ships in 3-6 days

0

20

Honda 23433-VA3-J01

GEAR, THIRD DRIVEN (27T)

Note: Use up to Frame SN 6102737.

$51.99

$

Usually ships in 3-6 days

0

21

Honda 23436-VA3-J02

ARM, CLUTCH

Note: Use up to Frame SN 6102737.

$80.99

$

Usually ships in 3-6 days

0

22

Honda 23440-VB3-800

SHAFT, SHIFT

Note: Use up to Frame SN 6102737.

$28.99

$

Usually ships in 3-6 days

0

23

Honda 24102-VA3-J00

SHIFTER

Note: Use up to Frame SN 6102737.

$

$

Not available

24

Honda 24115-VA3-J00

FORK, SHIFT

Note: Use up to Frame SN 6102737.

$85.99

$

Usually ships in 3-6 days

0

25

Honda 24139-VA3-J00

GUIDE, CHANGE LEVER

Note: Use up to Frame SN 6102737.

$

$

Currently unavailable

26

Honda 24271-765-000

SPRING, BALL SETTING

Note: Use up to Frame SN 6102737.

$2.99

$

Usually ships in 3-6 days

0

27

Honda 24361-VA3-J02

SEE PART DETAILS - PRI; ARM, CHANGE

Note: Use up to Frame SN 6102737.

$5.99

$

Usually ships in 3-6 days

0

28

Honda 24384-VA3-J00

BRACKET, WIRE HOLDER
(Superseded to 24384-VA3-J02)

Note: Use up to Frame SN 6102737.

$3.99

$

Usually ships in 3-6 days

0

29

Honda 24624-VA3-J02

HOLDER, SHIFT SHAFT

Note: Use up to Frame SN 6102737.

$26.99

$

Usually ships in 3-6 days

0

30

Honda 90012-VA4-800

BOLT, GUIDE

Note: Use up to Frame SN 6102737.

$4.99

$

Usually ships in 3-6 days

0

31

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

Note: Use up to Frame SN 6102737.

$2.49

$

In Stock, Qty 20+

0

32

Honda 90103-VA5-J00

BOLT, FLANGE (6X16)

Note: Use up to Frame SN 6102737.

$2.49

$

Usually ships in 3-6 days

0

33

Honda 90111-VA3-J00

BOLT, HEX. (8X10)

Note: Use up to Frame SN 6102737.

$3.49

$

Usually ships in 3-6 days

0

34

Honda 90123-VA4-800

BOLT, FLANGE (6X25) (Honda Code 1454891).

Note: Use up to Frame SN 6102737.

$2.99

$

Usually ships in 3-6 days

0

35

Honda 90125-VA4-800

BOLT, FLANGE (6X25)

Note: Use up to Frame SN 6102737.

$3.99

$

In Stock, only 1 left!

0

36

Honda 90411-KM1-000

WASHER, THRUST (14X32X1)

Note: Use up to Frame SN 6102737.

$3.49

$

Usually ships in 3-6 days

0

37

Honda 90421-KM1-003

SEE PART DETAILS - PRI; WASHER, SEALING (8X16X1.6)

Note: Use up to Frame SN 6102737.

$3.49

$

Usually ships in 3-6 days

0

38

Honda 90451-155-000

SEE PART DETAILS - PRI; WASHER (14MM)

Note: Use up to Frame SN 6102737.

$5.99

$

Usually ships in 3-6 days

0

39

Honda 90452-187-000

SEE PART DETAILS - PRI; WASHER (10X21)

Note: Use up to Frame SN 6102737.

$3.49

$

In Stock, only 2 left!

0

40

Honda 90455-729-300

WASHER B, THRUST (12MM) (1.0)

Note: Use up to Frame SN 6102737.

$5.49

$

Usually ships in 3-6 days

0

41

Honda 90504-VA3-J00

WASHER, THRUST (15X45X1.5)

Note: Use up to Frame SN 6102737.

$2.99

$

Usually ships in 3-6 days

0

41

Honda 90514-VA3-J02

WASHER, THRUST (15X45)

Note: Use up to Frame SN 6102737.

$2.99

$

Usually ships in 3-6 days

0

42

Honda 90505-VA3-J00

WASHER, SPECIAL (15MM)

Note: Use up to Frame SN 6102737.

$20.99

$

Usually ships in 3-6 days

0

43

Honda 90506-VA3-J00

WASHER (35X45X1)

Note: Use up to Frame SN 6102737.

$8.99

$

Usually ships in 3-6 days

0

44

Honda 91012-VB5-801

BEARING, NEEDLE (10X17X20)

Note: Use up to Frame SN 6102737.

$19.99

$

Usually ships in 3-6 days

0

45

Honda 91152-VA3-J02

SEE PART DETAILS - PRI; RETAINER, BALL (6MM)

Note: Use up to Frame SN 6102737.

$10.99

$

Usually ships in 3-6 days

0

46

Honda 91202-KA3-711

SEE PART DETAILS - SUP; OIL SEAL (10X17X4) (ARAI)
(Superseded to 91206-VA3-J02)

Note: Use up to Frame SN 6102737.

$2.99

$

In Stock, only 2 left!

0

46

Honda 91206-VA3-J02

SEE PART DETAILS - PRI; OIL SEAL (10X17X4)

Note: Use up to Frame SN 6102737.

$2.99

$

In Stock, only 2 left!

0

47

Honda 91202-VA3-J01

PLUG, SEALING (14X4)
(Superseded to 91202-VA3-J02)

Note: Use up to Frame SN 6102737.

$5.49

$

Usually ships in 3-6 days

0

47

Honda 91202-VA3-J02

PLUG, SEALING (14X4)

Note: Use up to Frame SN 6102737.

$5.49

$

Usually ships in 3-6 days

0

48

Honda 91203-VA3-J02

SEE PART DETAILS - PRI; OIL SEAL (8X16X6)

Note: Use up to Frame SN 6102737.

$2.49

$

In Stock, only 4 left!

0

49

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5) (Honda Code 2461713).

Note: Use up to Frame SN 6102737.

$5.99

$

In Stock, only 2 left!

0

49

Honda 91203-952-771

SEE PART DETAILS - SUP; OIL SEAL (8X14X5) (Honda Code 0744326).
(Superseded to 91201-ZE9-003)

Note: Use up to Frame SN 6102737.

$5.99

$

In Stock, only 2 left!

0

50

Honda 91201-246-005

SEE PART DETAILS - PRI; OIL SEAL (15X24X5)

Note: Use up to Frame SN 6102737.

$10.99

$

In Stock, Qty 8

0

51

Honda 91351-VA3-J02

O-RING (12.3X1.9)

Note: Use up to Frame SN 6102737.

$2.99

$

In Stock, Qty 5

0

52

Honda 92101-05020-0A

SEE PART DETAILS - PRI; BOLT, HEX. (5X20)

Note: Use up to Frame SN 6102737.

$1.99

$

Usually ships in 3-6 days

0

53

Honda 92101-06025-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X25)

Note: Use up to Frame SN 6102737.

$2.49

$

In Stock, Qty 10

0

54

Honda 94001-05000-0S

SEE PART DETAILS - PRI; NUT, HEX. (5MM)

Note: Use up to Frame SN 6102737.

$3.99

$

Usually ships in 3-6 days

0

55

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

Note: Use up to Frame SN 6102737.

$0.99

$

In Stock, Qty 20+

0

56

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

Note: Use up to Frame SN 6102737.

$3.49

$

In Stock, only 3 left!

0

57

Honda 94510-18000

CIRCLIP (OUTER) (18MM)

Note: Use up to Frame SN 6102737.

$1.99

$

In Stock, only 1 left!

0

58

Honda 96211-06000

SEE PART DETAILS - PRI; BALL, STEEL (#6) (3/16)

Note: Use up to Frame SN 6102737.

$0.99

$

In Stock, Qty 6

0

59

Honda 96220-60224

ROLLER (6X22.4)

Note: Use up to Frame SN 6102737.

$2.99

$

Usually ships in 3-6 days

0
