HR215 SXA (MZAM) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZAM-6000001 - MZAM-6200000) AIR CLEANER (1) Parts Diagram

21" Walk-Behind Mower, Made in USA

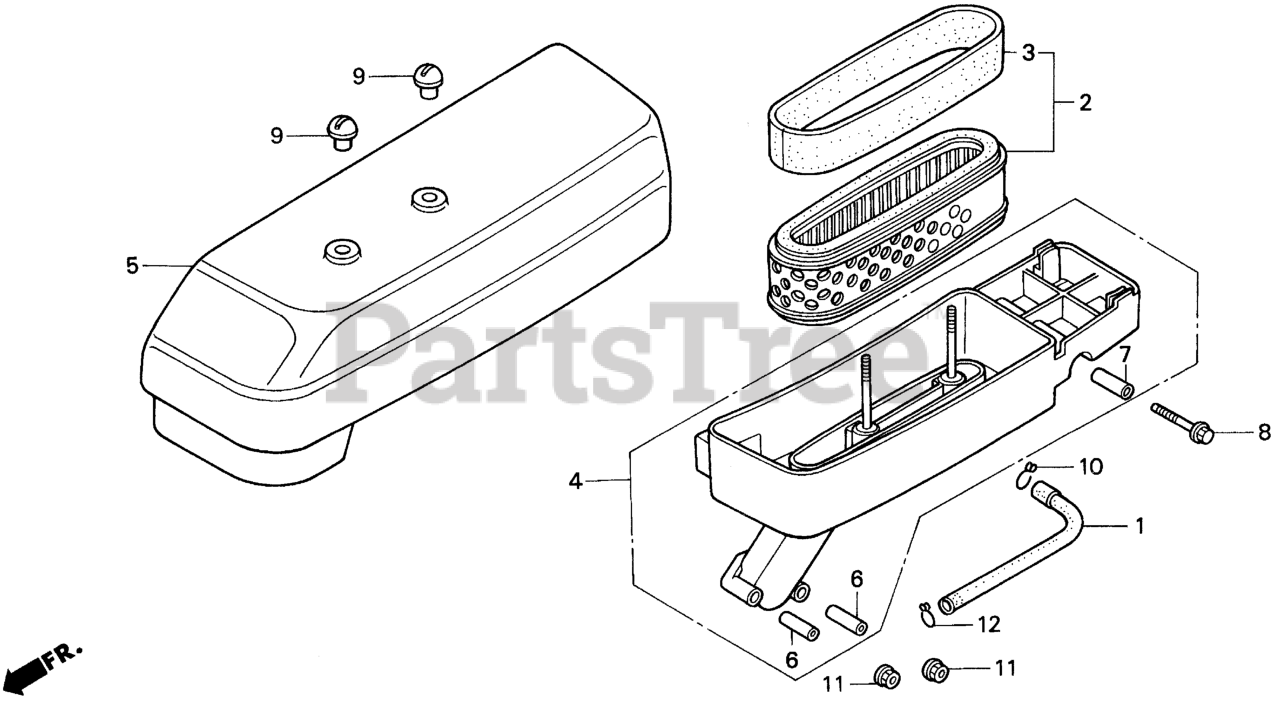

AIR CLEANER (1) Parts Diagram

  • Title

1

Honda 15721-ZE6-010

TUBE, BREATHER (Honda Code 2580033).

$

$

Not available

2

Honda 17210-ZE6-003

SEE PART DETAILS - SUP; ELEMENT, AIR CLEANER (Honda Code 1495902).
(Superseded to 17210-ZE6-305)

$20.99

$

In Stock, Qty 10

0

2

Honda 17210-ZE6-305

ELEMENT, AIR CLEANER

$20.99

$

In Stock, Qty 10

0

2

Honda 17210-ZE6-505

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER (Honda Code 5185855).

$20.99

$

Usually ships in 3-6 days

0

3

Honda 17218-ZE6-505

SEE PART DETAILS - PRI; FILTER (OUTER) (Honda Code 5213293).
(Superseded to 17218-ZE6-305)

$7.99

$

In Stock, Qty 8

0

4

Honda 17220-ZG9-000

HOUSING, AIR CLEANER

$

$

Not available

5

Honda 17231-ZG9-000ZA

COVER, AIR CLEANER *R8* (BRIGHT RED)

$

$

Not available

6

Honda 17238-ZE7-010

COLLAR, AIR CLEANER Use from Engine SN 1786085.

$4.49

$

In Stock, only 2 left!

0

7

Honda 17239-ZE6-300

COLLAR B, AIR CLEANER (Honda Code 1452994).

$4.49

$

In Stock, only 1 left!

0

8

Honda 90014-ZE6-000

BOLT, FLANGE (6X35) (Honda Code 1688076).

$2.49

$

In Stock, Qty 6

0

9

Honda 90201-ZG9-000

NUT, AIR CLEANER COVER (6MM)

$7.99

$

In Stock, Qty 9

0

10

Honda 90652-MB1-000

CLIP, TUBE (Honda Code 1768605).

$1.49

$

In Stock, only 1 left!

0

11

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

12

Honda 95002-02120

SEE PART DETAILS - PRI; CLIP, TUBE (B12) Use from Engine SN 2086984.

$2.49

$

In Stock, only 2 left!

0
