HR215 SXA (MZAM) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZAM-6000001 - MZAM-6200000) JOINT (SXA,SMA,HXA,HMA) Parts Diagram

21" Walk-Behind Mower, Made in USA

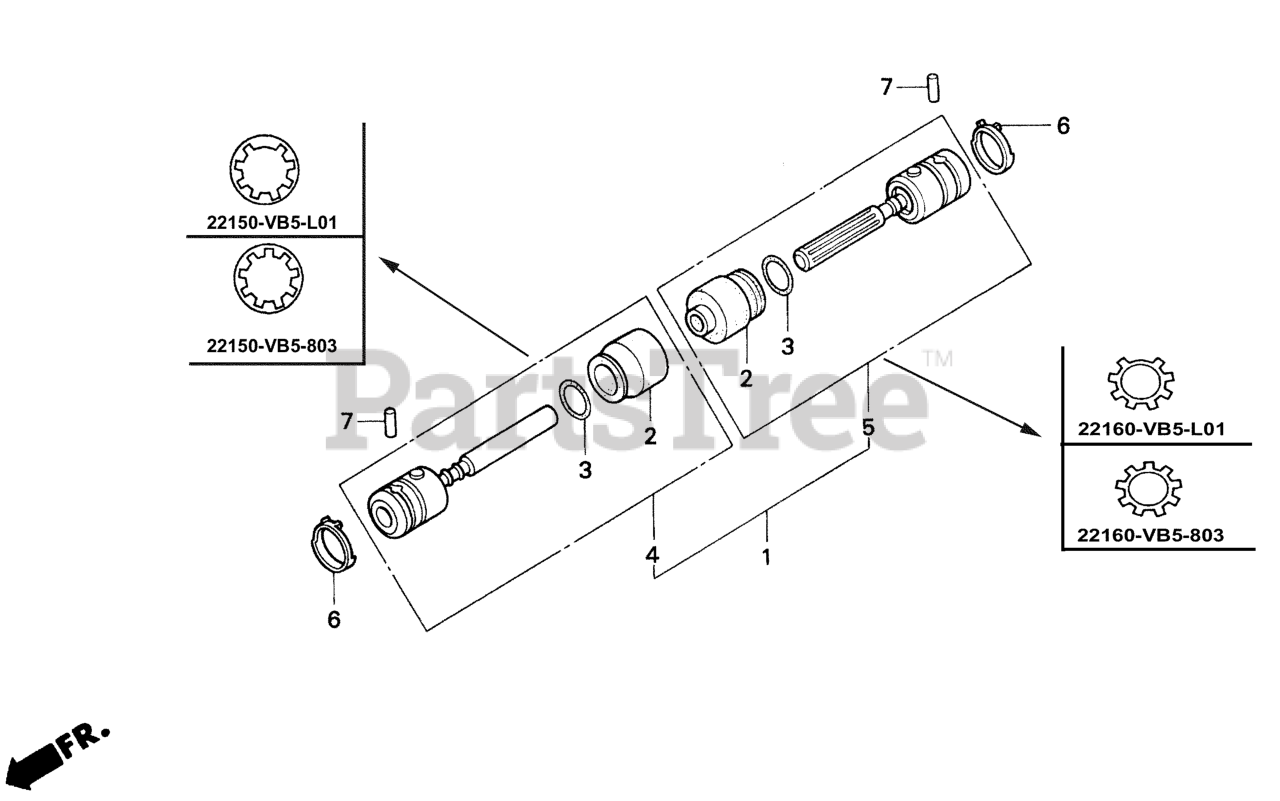

JOINT (SXA,SMA,HXA,HMA) Parts Diagram

  • Title

1

Honda 22100-VB3-803

SEE PART DETAILS - SUP; JOINT ASSY.
(Superseded to 22100-VB3-806)

$112.99

$

Usually ships in 3-6 days

0

1

Honda 22100-VB3-805

SEE PART DETAILS - PRI; JOINT ASSY.
(Superseded to 22100-VB3-806)

$112.99

$

Usually ships in 3-6 days

0

2

Honda 22123-VB5-801

BOOT, JOINT
(Superseded to 22123-VK6-004)

$3.99

$

In Stock, only 1 left!

0

3

Honda 22127-VB5-801

RING, SEAL
(Superseded to 22127-VK6-004)

$1.99

$

In Stock, Qty 5

0

4

Honda 22150-VB3-805

SEE PART DETAILS - PRI; JOINT SUB-ASSY. (A)
(Superseded to 22150-VB3-806)

$63.99

$

In Stock, only 1 left!

0

5

Honda 22160-VB3-803

SEE PART DETAILS - PRI; JOINT SUB-ASSY. (B) (NA USE ALT:22100-VB5-L01)
(Superseded to 22160-VB3-805)

$64.99

$

Usually ships in 3-6 days

0

5

Honda 22160-VB3-805

SEE PART DETAILS - PRI; JOINT SUB-ASSY. (B)

$64.99

$

Usually ships in 3-6 days

0

6

Honda 23435-VA2-701

CLIP, CLUTCH SHAFT

$4.49

$

Usually ships in 3-6 days

0

7

Honda 96220-40178

ROLLER (4X17.8)

$1.49

$

In Stock, Qty 9

0
