HR216 SXA (MACR) - Honda 21" Walk-Behind Mower, Made in Japan (SN: MACR-1000001 - MACR-3000000) CARBURETOR Parts Diagram

21" Walk-Behind Mower, Made in Japan

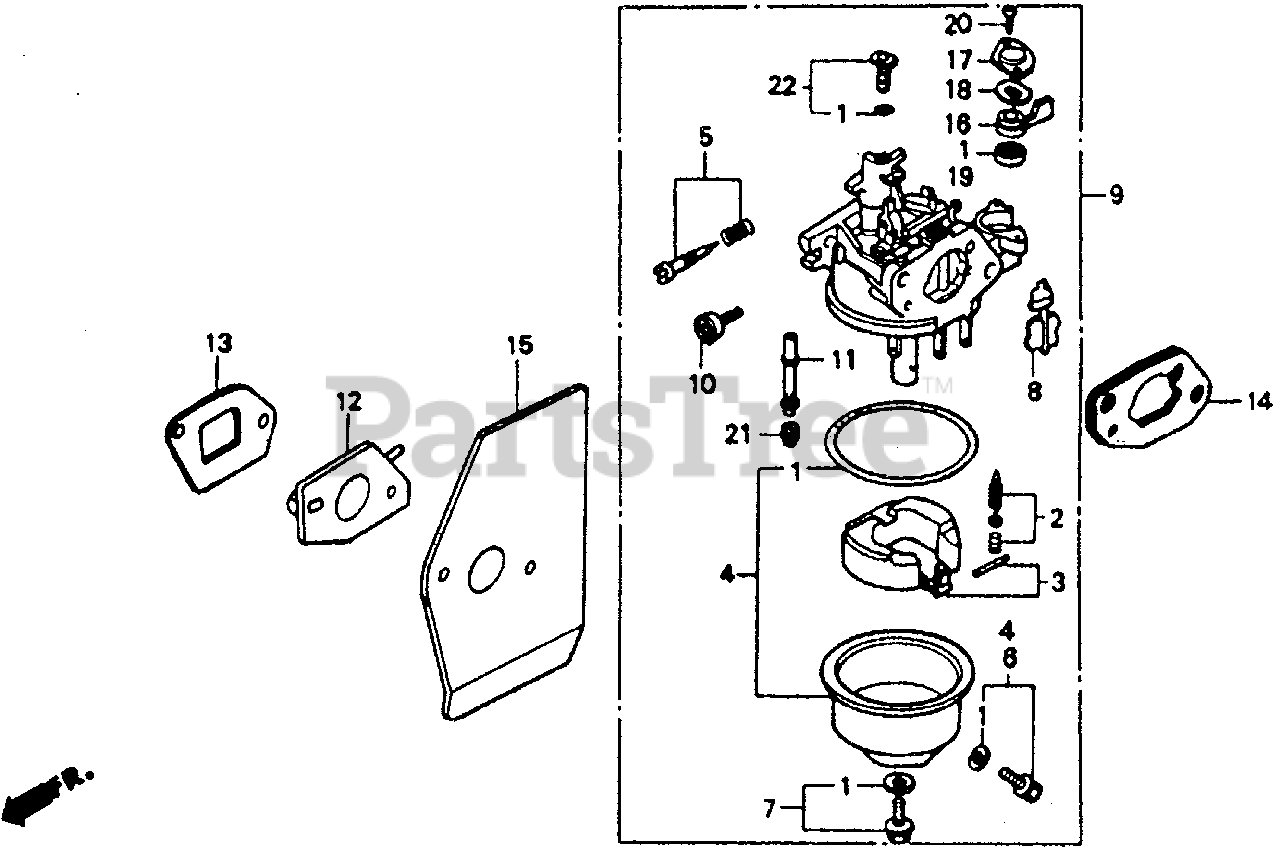

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZE0-015

SEE PART DETAILS - SUP; GASKET SET (Honda Code 1929884).
(Superseded to 16010-ZE0-025)

Note: Use up to Engine SN BE40A E.

$22.99

$

In Stock, only 1 left!

0

1

Honda 16010-ZE0-025

SEE PART DETAILS - PRI; GASKET SET (CARBURETOR NO.)

Note: Use up to Engine SN BE40A E.

$22.99

$

In Stock, only 1 left!

0

1

Honda 16010-ZE0-025

SEE PART DETAILS - PRI; GASKET SET (CARBURETOR NO.)

Note: Use from Engine SN BE40A F.

$22.99

$

In Stock, only 1 left!

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (CARBURETOR NO.) (SEAT NOT INCLUDED)

$33.99

$

In Stock, Qty 8

0

3

Honda 16013-ZE0-005

FLOAT SET (Honda Code 1441492).

$35.99

$

In Stock, only 2 left!

0

4

Honda 16015-ZE0-831

SEE PART DETAILS - PRI; CHAMBER SET, FLOAT (CARBURETOR NO.)

$42.99

$

In Stock, only 3 left!

0

5

Honda 16016-ZE0-005

SCREW SET, PILOT (Honda Code 1441500). (CARBURETOR NO.)

$17.99

$

Usually ships in 3-6 days

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN (Honda Code 1672187). (CARBURETOR NO.)

$12.99

$

Usually ships in 3-6 days

0

7

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$15.99

$

In Stock, only 2 left!

0

8

Honda 16044-ZE7-005

CHOKE SET (CARBURETOR NO.)

Note: Use up to Engine SN BE40A D.

$41.99

$

Usually ships in 3-6 days

0

8

Honda 16045-ZE7-005

CHOKE SET (CARBURETOR NO.)

Note: Use from Engine SN BE40A E.

$39.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZE7-015

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE40A B)
(Superseded to 16100-ZE7-055)

Note: Use up to Engine SN 1180000.

$126.99

$

In Stock, only 1 left!

0

9

Honda 16100-ZE7-015

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE40A B)
(Superseded to 16100-ZE7-055)

$126.99

$

In Stock, only 1 left!

0

9

Honda 16100-ZE7-035

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE40A E)
(Superseded to 16100-ZE7-055)

$126.99

$

In Stock, only 1 left!

0

9

Honda 16100-ZE7-035

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE40A E)
(Superseded to 16100-ZE7-055)

Note: Use up to Engine SN 1214225.

$126.99

$

In Stock, only 1 left!

0

9

Honda 16100-ZE7-035

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE40A E)
(Superseded to 16100-ZE7-055)

Note: Use from Engine SN 2127565.

$126.99

$

In Stock, only 1 left!

0

9

Honda 16100-ZE7-055

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE40A G/H)

$126.99

$

In Stock, only 1 left!

0

9

Honda 16100-ZE7-055

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE40A G/H)

Note: Use from Engine SN 2127565.

$126.99

$

In Stock, only 1 left!

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$20.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZE7-005

NOZZLE, MAIN

Note: Use up to Engine SN BE40A A.

$18.99

$

Usually ships in 3-6 days

0

11

Honda 16166-ZE7-015

NOZZLE, MAIN

Note: Use from Engine SN BE40A B to BE40A D.

$26.99

$

Usually ships in 3-6 days

0

11

Honda 16166-ZE7-025

SEE PART DETAILS - PRI; NOZZLE, MAIN (CARBURETOR NO.)

Note: Use from Engine SN BE40A E.

$

$

Not available

12

Honda 16211-ZE7-000

INSULATOR, CARBURETOR

$18.99

$

Usually ships in 3-6 days

0

13

Honda 16212-ZE7-M10

SEE PART DETAILS - PRI; GASKET, INSULATOR

$3.99

$

In Stock, only 1 left!

0

14

Honda 16220-ZE6-010

SEE PART DETAILS - PRI; SPACER, CARBURETOR (Honda Code 2455640).

$9.99

$

Usually ships in 3-6 days

0

15

Honda 16221-ZE7-M11

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$19.99

$

In Stock, only 2 left!

0

16

Honda 16953-ZE1-406

SEE PART DETAILS - PRI; LEVER, VALVE (Honda Code 5167358).

$16.99

$

Usually ships in 3-6 days

0

17

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING (CARBURETOR NO.)

$4.99

$

In Stock, only 1 left!

0

18

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER (CARBURETOR NO.)

$4.99

$

In Stock, only 4 left!

0

19

Honda 16957-ZE1-811

SEE PART DETAILS - SUP; GASKET, VALVE (Honda Code 1807817).
(Superseded to 16957-ZE1-812)

Note: Use up to Engine SN BE40A E.

$4.99

$

In Stock, only 2 left!

0

19

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE (Honda Code 3440708).

Note: Use up to Engine SN BE40A E.

$4.99

$

In Stock, only 2 left!

0

19

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE (Honda Code 3440708).

Note: Use from Engine SN BE40A F.

$4.99

$

In Stock, only 2 left!

0

20

Honda 93500-03008-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X8) (Honda Code 0374694).

Note: Use up to Engine SN BE40A E.

$1.49

$

In Stock, only 4 left!

0

20

Honda 93500-03008-1G

SCREW, PAN (3X8) (CARBURETOR NO.)

Note: Use from Engine SN BE40A F.

$

$

Currently unavailable

21

Honda 99101-124-0620

JET, MAIN (#62) (Honda Code 0635482). (CARBURETOR NO.)

Note: (Optional).Use from Engine SN BE40A E.

$12.99

$

In Stock, only 1 left!

0

21

Honda 99101-124-0650

JET, MAIN (#65) Use up to Engine SN BB30A D.

Note: (Optional).

$14.99

$

Usually ships in 3-6 days

0

21

Honda 99101-124-0680

JET, MAIN (#68) Use up to Engine SN BB30A D.

Note: (Optional).Use from Engine SN BE40A E to BE40A D.

$12.99

$

In Stock, only 1 left!

0

21

Honda 99101-124-0700

JET, MAIN (#70) Use up to Engine SN BB30A D.

Note: Use up to Engine SN BE40A D.

$12.99

$

In Stock, only 2 left!

0

22

Honda 99204-ZE0-0350

JET SET, PILOT (#35) (Honda Code 1441609).

Note: Use up to Engine SN BE40A D.

$26.99

$

In Stock, only 3 left!

0

22

Honda 99204-ZE0-0380

JET SET, PILOT (#38) (Honda Code 3353075).

Note: Use from Engine SN BE40A E.

$26.99

$

In Stock, only 2 left!

0
