HRA21 SDA (HRA21) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HRA21-1000001 - HRA21-9999999) AIR CLEANER (SNORKEL) Parts Diagram

21" Walk-Behind Mower, Made in Japan

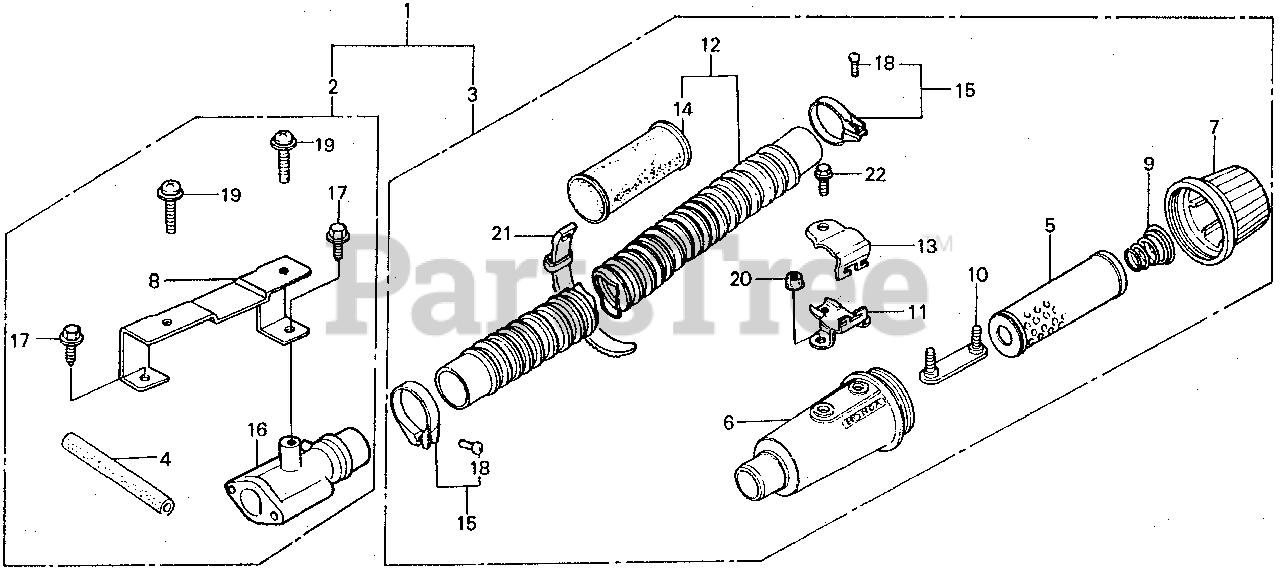

AIR CLEANER (SNORKEL) Parts Diagram

  • Title

1

Honda 06170-952-810

AIR CLEANER KIT, SNORKEL JOINT

Note: (Optional).

$

$

Currently unavailable

2

Honda 06171-888-811

JOINT KIT, SNORKEL AIR CLEANER (Honda Code 0905729). (N/A: SEE COMPONENTS)

Note: (Optional).

$

$

Currently unavailable

3

Honda 06172-952-810

AIR CLEANER KIT, SNORKEL (N/A: SEE COMPONENTS)

Note: (Optional).

$

$

Currently unavailable

4

Honda 15721-888-810

TUBE, BREATHER (Honda Code 0905745).

Note: (Optional).

$

$

Not available

5

Honda 17211-888-692

ELEMENT, AIR CLEANER (Honda Code 0754036).

Note: (Optional).

$23.99

$

Usually ships in 3-6 days

0

6

Honda 17220-888-691

HOUSING, AIR CLEANER (Honda Code 0754044).

Note: (Optional).

$68.99

$

Usually ships in 3-6 days

0

7

Honda 17231-888-691

CAP, AIR CLEANER (Honda Code 0754051).

Note: (Optional).

$

$

Not available

8

Honda 17232-888-690

STAY, CARBURETOR COVER (Honda Code 0802520).

Note: (Optional).

$

$

Not available

9

Honda 17233-888-691

SPRING, SETTING (Honda Code 0754069).

Note: (Optional).

$

$

Not available

10

Honda 17234-888-691

PLATE, AIR CLEANER SETTING (Honda Code 0754077).

Note: (Optional).

$14.99

$

Usually ships in 3-6 days

0

11

Honda 17236-952-810

BRACKET A, AIR CLEANER

Note: (Optional).

$

$

Not available

12

Honda 17237-952-691

HOSE, AIR CLEANER

Note: (Optional).

$

$

Not available

13

Honda 17239-888-690

BRACKET B, AIR CLEANER (Honda Code 0754101).

Note: (Optional).

$8.49

$

Usually ships in 3-6 days

0

14

Honda 17239-952-690

PROTECTOR, HOSE

Note: (Optional).

$

$

Not available

15

Honda 95018-34250

SEE PART DETAILS - PRI; BAND, AIR CLEANER CONNECTING TUBE (34) (Honda Code 5903182).

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

16

Honda 17411-888-810

JOINT, TUBE CONNECTING (Honda Code 0802504).

Note: (Optional).

$

$

Not available

17

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

Note: (Optional).

$1.99

$

In Stock, Qty 17

0

18

Honda 93500-04025-0A

SEE PART DETAILS - PRI; SCREW, PAN (4X25) (Honda Code 0188367).

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

19

Honda 93891-06025-08

SCREW-WASHER (6X25) (Honda Code 0802538). (NOT AVAILABLE)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

20

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

Note: (Optional).

$0.99

$

In Stock, Qty 20+

0

21

Honda 95014-62300

BAND B3, CABLE HARNESS (Honda Code 0288142).

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0

22

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) Use from Engine SN 2056820.

Note: (Optional).

$1.99

$

In Stock, Qty 20+

0
