HRA21 SDA (HRA21) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HRA21-1000001 - HRA21-9999999) CONTROL@GOVERNOR FLUTTER Parts Diagram

21" Walk-Behind Mower, Made in Japan

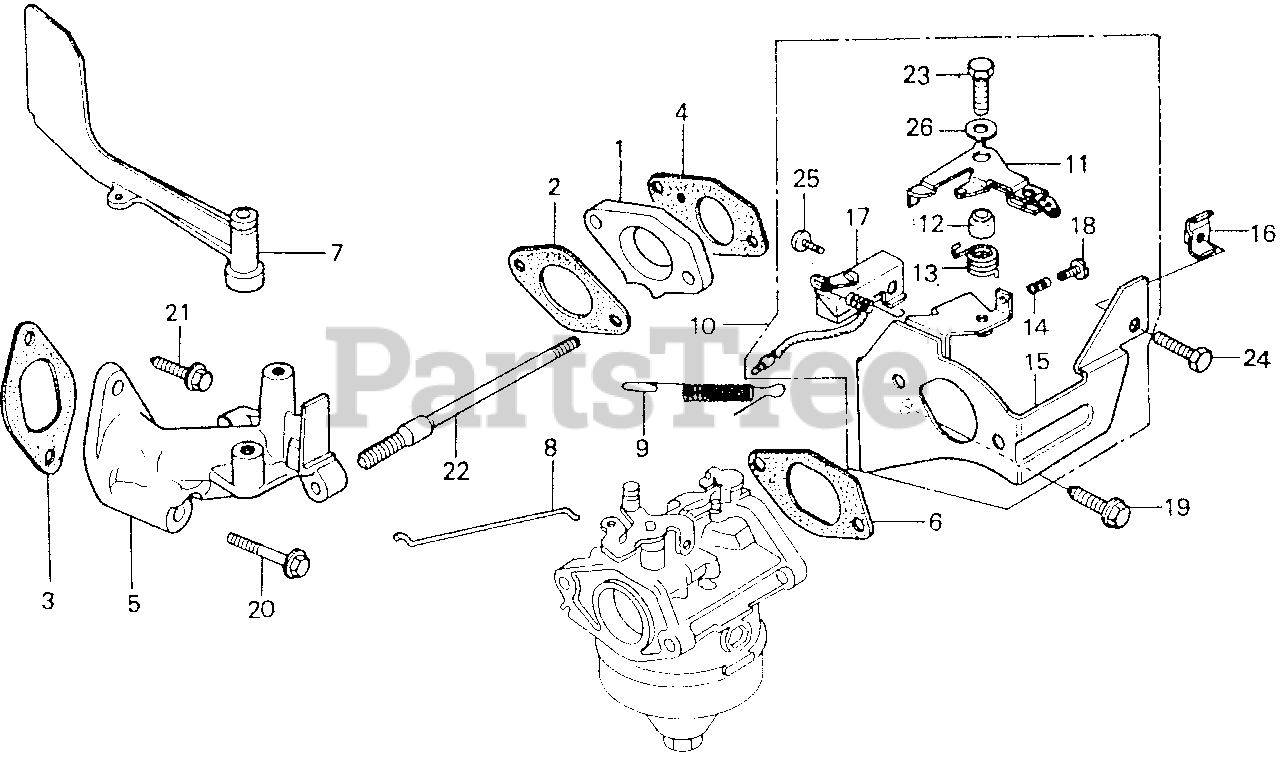

CONTROL@GOVERNOR FLUTTER Parts Diagram

  • Title

1

Honda 16211-887-000

INSULATOR, CARBURETOR (Honda Code 0635243).

$15.99

$

In Stock, only 1 left!

0

2

Honda 16212-887-306

SEE PART DETAILS - PRI; GASKET, INSULATOR (Honda Code 4455465).

$3.49

$

In Stock, only 1 left!

0

3

Honda 16220-888-000

SEE PART DETAILS - SUP; GASKET, MANIFOLD (Honda Code 0671933). (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 16221-883-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR (Honda Code 4357562).
(Superseded to 16221-887-800)

$3.49

$

In Stock, Qty 8

0

4

Honda 16221-887-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 4357570).

$3.49

$

In Stock, Qty 8

0

5

Honda 16224-888-040

SEE PART DETAILS - PRI; MANIFOLD, IN. (Honda Code 0871541).

$

$

Currently unavailable

6

Honda 16269-883-800

SEE PART DETAILS - PRI; GASKET, AIR CLEANER (Honda Code 4831939).

$1.99

$

In Stock, Qty 14

0

7

Honda 16512-888-030

FLUTTER, GOVERNOR (Honda Code 0833780).

$

$

Currently unavailable

8

Honda 16555-888-010

ROD, GOVERNOR (Honda Code 0671990). (NOT AVAILABLE)

$

$

Not available

9

Honda 16561-888-020

SEE PART DETAILS - PRI; SPRING, GOVERNOR (Honda Code 0747865).

$

$

Not available

10

Honda 16570-952-030

CONTROL ASSY.

$

$

Not available

11

Honda 16571-952-330

LEVER, CONTROL

$

$

Not available

12

Honda 16574-952-300

COLLAR, LEVER SETTING

$

$

Not available

13

Honda 16575-952-310

SPRING, RETURN

$

$

Not available

14

Honda 16576-952-000

SPRING, STOPPER LEVER

$

$

Not available

15

Honda 17235-952-320

STAY, CLEANER CASE

$

$

Not available

16

Honda 17251-952-000

HOLDER, WIRE

$

$

Not available

17

Honda 36100-952-752

SWITCH ASSY., ENGINE STOP

$20.99

$

Usually ships in 3-6 days

0

18

Honda 90012-952-000

BOLT (4X20) (NOT AVAILABLE)

$

$

Currently unavailable

19

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 13

0

20

Honda 90014-888-000

BOLT, FLANGE (6X50) (Honda Code 0671537).

$5.49

$

Usually ships in 3-6 days

0

21

Honda 90022-888-010

BOLT, FLANGE (6X20) (CT200) (Honda Code 0671552).

$2.99

$

In Stock, only 1 left!

0

22

Honda 90043-888-010

BOLT, STUD (6X141) (Honda Code 0934786).

$

$

Currently unavailable

23

Honda 92101-05020-0A

SEE PART DETAILS - PRI; BOLT, HEX. (5X20)

$1.99

$

Usually ships in 3-6 days

0

24

Honda 92101-06014-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X14)

$1.99

$

Usually ships in 3-6 days

0

25

Honda 93500-04008-0A

SEE PART DETAILS - PRI; SCREW, PAN (4X8) (Honda Code 0156463).

$1.49

$

In Stock, only 4 left!

0

26

Honda 94101-05000

SEE PART DETAILS - PRI; WASHER, PLAIN (5MM) (Honda Code 0059055).

$1.49

$

In Stock, only 3 left!

0
