HRA21 SDA (HRA21) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HRA21-1000001 - HRA21-9999999) CYLINDER@CYLINDER HEAD Parts Diagram

21" Walk-Behind Mower, Made in Japan

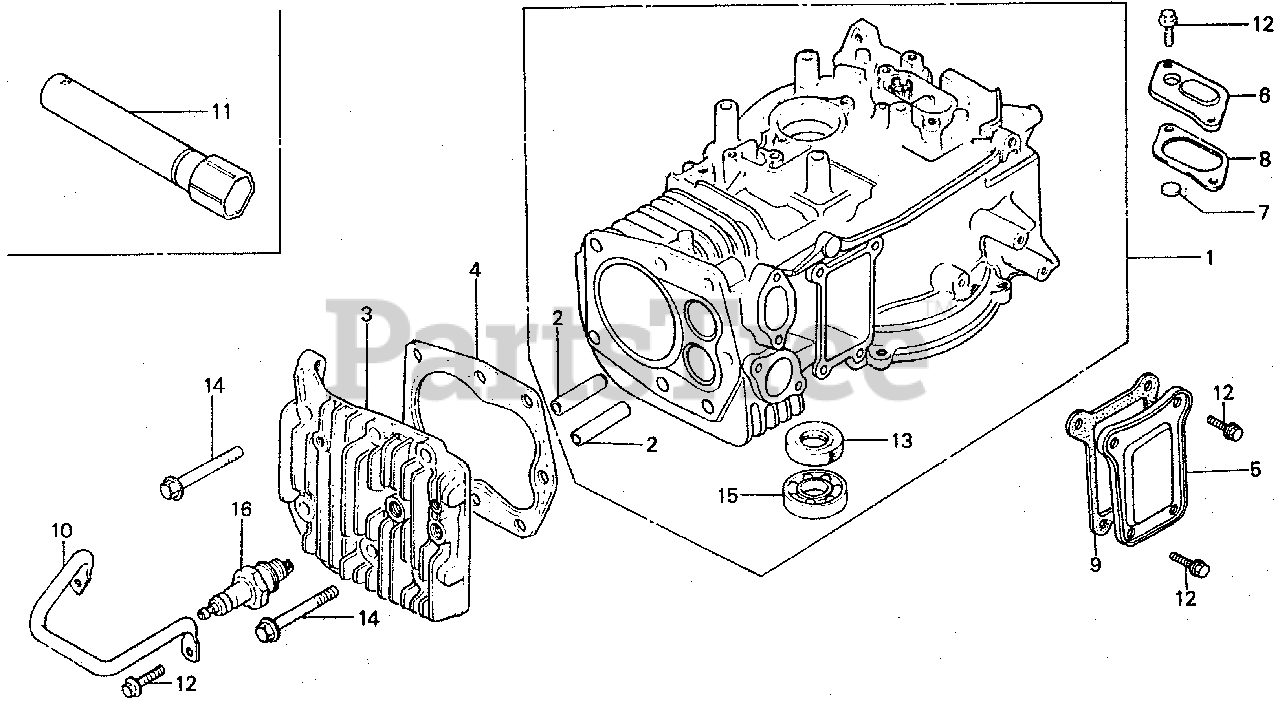

CYLINDER@CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12000-888-345

CYLINDER ASSY. (Honda Code 0905596).

$

$

Not available

2

Honda 12133-887-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OS) (Honda Code 4231213).

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

2

Honda 12134-887-305

SEE PART DETAILS - SUP; GUIDE, VALVE (OS) (Honda Code 0676288).

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

3

Honda 12221-888-315

CYLINDER HEAD (Honda Code 0747683).

$56.99

$

Usually ships in 3-6 days

0

4

Honda 12281-888-306

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD (Honda Code 4190393).

$

$

Not available

5

Honda 12361-888-000

COVER, TAPPET (Honda Code 0671719).

$15.99

$

Usually ships in 3-6 days

0

6

Honda 12370-888-000

CAP, BREATHER CHAMBER (Honda Code 0671727).

$14.99

$

Usually ships in 3-6 days

0

7

Honda 12372-879-000

VALVE, BREATHER (Honda Code 0452151).

$2.99

$

In Stock, only 2 left!

0

8

Honda 12373-888-000

GASKET, BREATHER CAP (Honda Code 0671735).

$3.49

$

In Stock, only 1 left!

0

9

Honda 12375-888-000

GASKET, TAPPET COVER (Honda Code 0671743).

$3.99

$

Usually ships in 3-6 days

0

10

Honda 19671-888-811

GUARD, PLUG (Honda Code 0747691).

$39.99

$

Usually ships in 3-6 days

0

11

Honda 89216-888-000

WRENCH, SPARK PLUG (Honda Code 0747907).

$

$

Not available

12

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 20+

0

13

Honda 91202-883-005

SEE PART DETAILS - SUP; OIL SEAL (25X41X6) (Honda Code 0636936).
(Superseded to 91201-Z0T-801)

$10.99

$

In Stock, Qty 5

0

14

Honda 95700-08045-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X45) (Honda Code 0583633).
(Superseded to 95701-08045-08)

$3.49

$

In Stock, Qty 20+

0

14

Honda 95701-08045-08

BOLT, FLANGE (8X45) (Honda Code 2602258).

$3.49

$

In Stock, Qty 20+

0

15

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205) (Honda Code 0636977).

$27.99

$

In Stock, only 4 left!

0

16

Honda 98073-56740

SPARK PLUG (BM6A) (NGK) (Honda Code 0743161).

$

$

Not available

16

Honda 98073-56750

SPARK PLUG (W20M-U) (DENSO) (Honda Code 1263987).

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0
